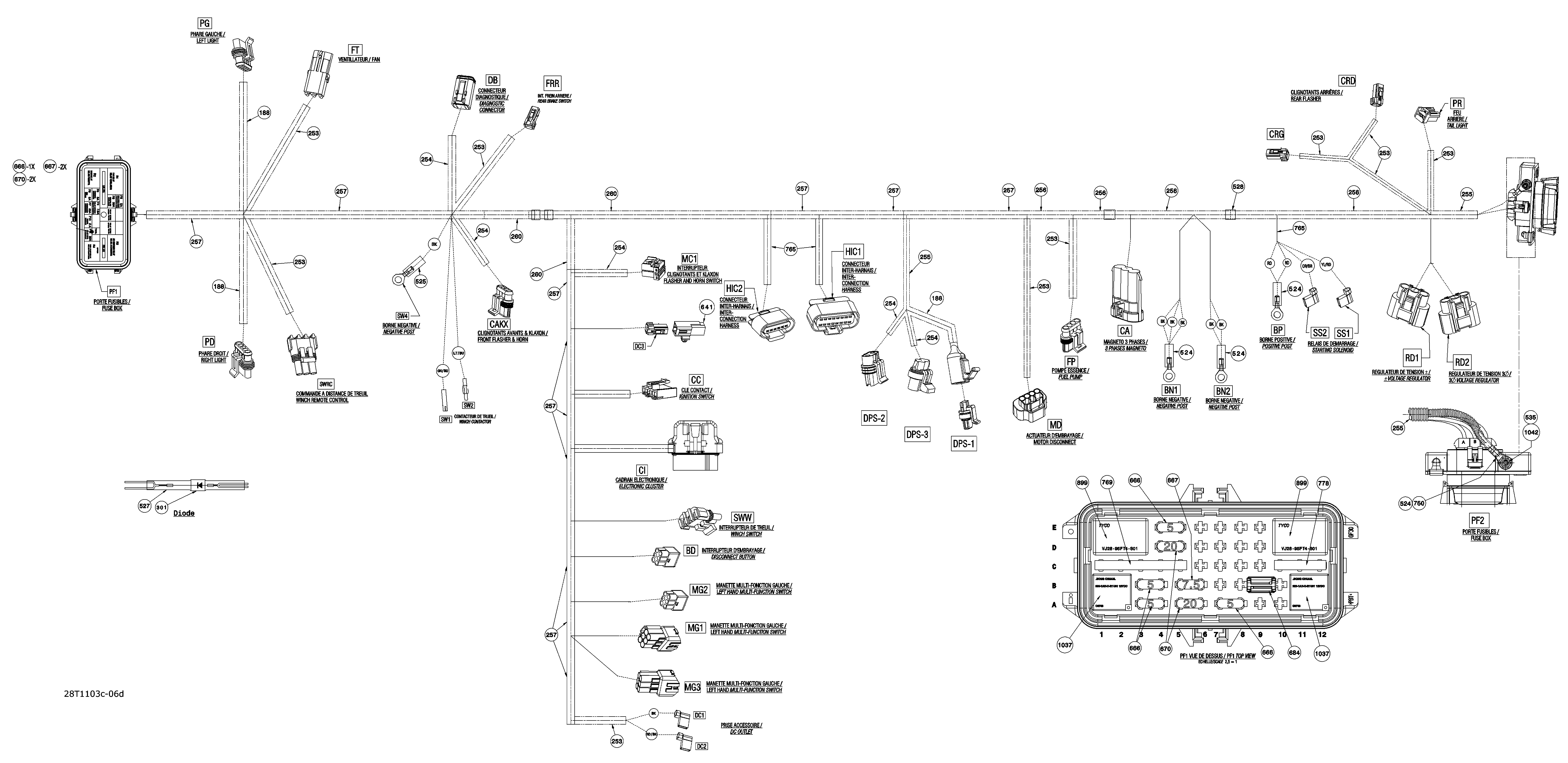

10- Main Harness XT, Europe для BRP Outlander 500 EFI - 2011
-
№АртикулНазвание
-
1710002123 Main Harness Ass'y. Includes 1 to 1088Main Harness Ass'y. Includes 1 to 1088
-
10710001047 Fuse, 40 AMPFuse, 40 AMP
-
20710001200 Fuse 30 amp.Fuse 30 amp.
-
33710000838 SealSeal
-
188409902000 Tubing 12 mmTubing 12 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
301409012700 DiodeDiode
-
484415128501 SealSeal
-
525710000482 Shrink TubingShrink Tubing
-
535710000496 Protector CapProtector Cap
-
641710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
667710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
702710000836 Female TerminalFemale Terminal
-
769278002165 Bus BarBus Bar
-
778278002165 Bus BarBus Bar
-
899278002168 Relay, 30 AMPRelay, 30 AMP
-
1037710001778 RelayRelay
-
1042233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
BD409012100 Female TerminalFemale Terminal
-
BD710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
BD710000402 Wire SealWire Seal
-
BD710000840 CapCap
-
BN1710000913 TerminalTerminal
-
BN2710000913 TerminalTerminal
-
BP710000913 TerminalTerminal
-
CA710001634 HousingHousing
-
CA710001633 LockLock
-
CA710001906 TerminalTerminal
-
CAKX409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
CC710000274 Female TerminalFemale Terminal
-
CC710000848 LockLock
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710001635 TerminalTerminal
-
CI515175812 PlugPlug
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175803 Wire SealWire Seal
-
CI710000399 Female HousingFemale Housing
-
CI710001131 Female TerminalFemale Terminal
-
CRD515175231 Female TerminalFemale Terminal
-
CRD515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
CRD293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CRG515175231 Female TerminalFemale Terminal
-
CRG515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
CRG293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DB293000052 Sealing CapSealing Cap
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB278001665 Female TerminalFemale Terminal
-
DB710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
DC1710000038 Female TerminalFemale Terminal
-
DC2710000038 Female TerminalFemale Terminal
-
DC3515175231 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS-1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS-1710001161 HousingHousing
-
DPS-1710001162 LockLock
-
DPS-1710001163 Wire SealWire Seal
-
DPS-1710001164 Female TerminalFemale Terminal
-
DPS-1710001114 CapCap
-
DPS-1710001225 CapCap
-
DPS-2278001325 Fuse HolderFuse Holder
-
DPS-2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS-2710000357 Female TerminalFemale Terminal
-
DPS-3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DPS-3710001315 HousingHousing
-
DPS-3710001159 Wire SealWire Seal
-
DPS-3710001160 Female TerminalFemale Terminal
-
DPS-3710001323 LockLock
-
FP278001014 Female TerminalFemale Terminal
-
FP409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP278001013 Wire SealWire Seal
-
FP710001340 Female TerminalFemale Terminal
-
FP515176621 Wire SealWire Seal
-
FRR515175231 Female TerminalFemale Terminal
-
FRR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRR293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FT409004300 Male TerminalMale Terminal
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT710000992 ClipClip
-
HIC1710001230 SealSeal
-
HIC1710001233 SealSeal
-
HIC1710001226 HousingHousing
-
HIC1710001225 CapCap
-
HIC1710001221 LockLock
-
HIC1710001229 TerminalTerminal
-
HIC2710001232 HousingHousing
-
HIC2710001230 SealSeal
-
HIC2710001233 SealSeal
-
HIC2710001229 TerminalTerminal
-
HIC2710001228 TerminalTerminal
-
HIC2710001225 CapCap
-
HIC2710001221 LockLock
-
MC1710001435 HousingHousing
-
MC1710001436 TerminalTerminal
-
MD710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
MD710000335 Female TerminalFemale Terminal
-
MD710000402 Wire SealWire Seal
-
MD710000840 CapCap
-
MG1409011300 Male TerminalMale Terminal
-
MG1710000402 Wire SealWire Seal
-
MG1710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MG1710000840 CapCap
-
MG2409012100 Female TerminalFemale Terminal
-
MG2409012300 SealSeal
-
MG2710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MG2710000402 Wire SealWire Seal
-
MG3409011300 Male TerminalMale Terminal
-
MG3409012300 SealSeal
-
MG3710000402 Wire SealWire Seal
-
MG3710001446 Male Housing Terminal, 6 CircuitsMale Housing Terminal, 6 Circuits
-
PD710000780 ConnectorConnector
-
PD710001340 Female TerminalFemale Terminal
-
PD515176621 Wire SealWire Seal
-
PF1710000660 Fuse Box Ass'yFuse Box Ass'y
-
PF1710000781 Fuse PullerFuse Puller
-
PF1710000840 CapCap
-
PF1710001026 Fuse CoverFuse Cover
-
PF1278002172 FoamFoam
-
PF1710001783 Decal Fuse RelayDecal Fuse Relay
-
PF2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
PF2710001636 TerminalTerminal
-
PF2710001637 SealSeal
-
PF2710001711 Fuse Box. Includes 1040 to 20Fuse Box. Includes 1040 to 20
-
PF2710001905 Terminal JointTerminal Joint
-
PG710000780 ConnectorConnector
-
PG710001340 Female TerminalFemale Terminal
-
PG515176621 Wire SealWire Seal
-
PR515175231 Female TerminalFemale Terminal
-
PR515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
PR293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
RD1710000877 TerminalTerminal
-
RD1710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RD1710000881 SealSeal
-
RD1710000882 CapCap
-
RD2710000877 TerminalTerminal
-
RD2710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
RD2710000881 SealSeal
-
SS1409010300 Female TerminalFemale Terminal
-
SS2409010300 Female TerminalFemale Terminal
-
SW1278001007 Insulated SheathInsulated Sheath
-
SW1710000421 Female TerminalFemale Terminal
-
SW2278001008 Insulated SheathInsulated Sheath
-
SW2278002261 Female TerminalFemale Terminal
-
SW4278001008 Insulated SheathInsulated Sheath
-
SW4278002261 Female TerminalFemale Terminal
-
SWRC278000992 Open BarrelOpen Barrel
-
SWRC278000223 Female TerminalFemale Terminal
-
SWRC278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
SWRC710000504 Wire SealWire Seal
-
SWW278000223 Female TerminalFemale Terminal
-
SWW278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
SWW710000504 Wire SealWire Seal
