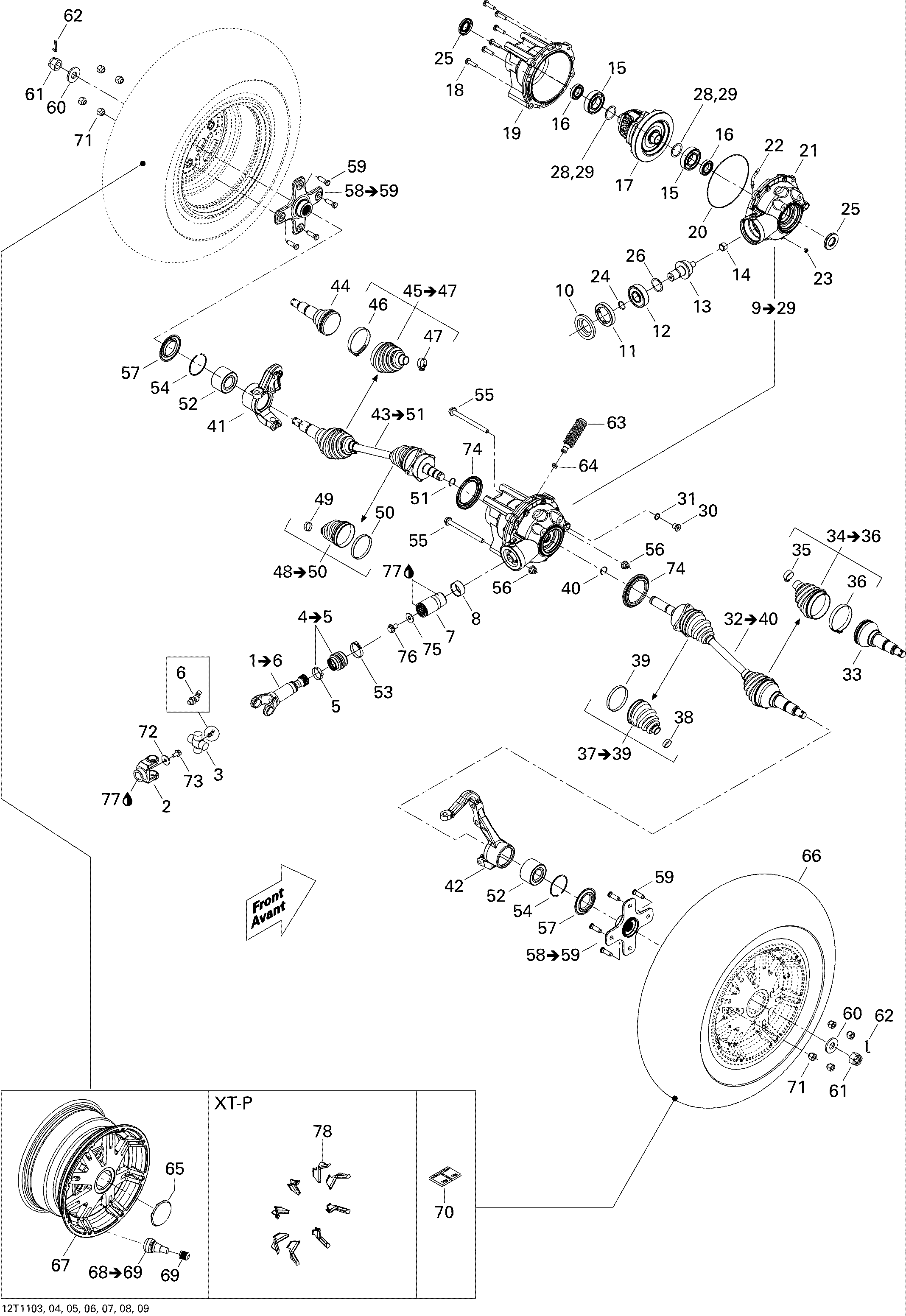

07- Drive System, Front для BRP Outlander 800R EFI - 2011
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 6Front Drive Axle Ass'y. Includes 1 to 6
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
3703000024 Unit Pack KitUnit Pack Kit
-
4703500255 Rubber Boot Kit. Includes 4 to 5Rubber Boot Kit. Includes 4 to 5
-
5293650138 Oetiker ClampOetiker Clamp
-
6715900067 Grease FittingGrease Fitting
-
7705400149 Coupling SleeveCoupling Sleeve
-
8705400036 Wear RingWear Ring
-
9705400723 Differential Ass'y. STD, Includes 9 to 29Differential Ass'y. STD, Includes 9 to 29
-
9705400793 Differential Ass'y. XT, XT-P, Includes 9 to 29Differential Ass'y. XT, XT-P, Includes 9 to 29
-
10705400027 Oil SealOil Seal
-
11705400661 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705501051 10 Teeth Pinion10 Teeth Pinion
-
14705500261 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400645 Differential. STDDifferential. STD
-
17705400822 Differential. XT, XT-PDifferential. XT, XT-P
-
18705500892 ScrewScrew
-
19705400297 Front CoverFront Cover
-
20705500265 SealSeal
-
21705400646 Front CoverFront Cover
-
22705500893 Vent ValveVent Valve
-
23705500894 Drain PlugDrain Plug
-
24705500267 O-RingO-Ring
-
25705500255 Oil SealOil Seal
-
26703500049 Pinion Shim KitPinion Shim Kit
-
28703500288 Differential Shim KitDifferential Shim Kit
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705400935 RH Homocinetic Joint. Includes 32 to 40RH Homocinetic Joint. Includes 32 to 40
-
33705500560 CV JointCV Joint
-
34705400511 Wheel Boot Kit . Includes 34 to 36Wheel Boot Kit . Includes 34 to 36
-
35293650194 Oetiker ClampOetiker Clamp
-
36293650192 Oetiker ClampOetiker Clamp
-
37705400512 Differential Boot Kit. Includes 37 to 39Differential Boot Kit. Includes 37 to 39
-
38293650192 Oetiker ClampOetiker Clamp
-
39293650193 Oetiker ClampOetiker Clamp
-
40705400042 CirclipCirclip
-
41705400817 LH KnuckleLH Knuckle
-
42705400819 RH KnuckleRH Knuckle
-
43705400934 LH Homocinetic Joint. Includes 43 to 51LH Homocinetic Joint. Includes 43 to 51
-
44705500560 CV JointCV Joint
-
45705400511 Wheel Boot Kit . Includes 45 to 47Wheel Boot Kit . Includes 45 to 47
-
46293650194 Oetiker ClampOetiker Clamp
-
47293650192 Oetiker ClampOetiker Clamp
-
48705400512 Differential Boot Kit. Includes 48 to 50Differential Boot Kit. Includes 48 to 50
-
49293650192 Oetiker ClampOetiker Clamp
-
50293650193 Oetiker ClampOetiker Clamp
-
51705400042 CirclipCirclip
-
52293350040 Cone BearingCone Bearing
-
53293650138 Oetiker ClampOetiker Clamp
-
54293370019 CirclipCirclip
-
55230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
56233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
57705501121 Wear SleeveWear Sleeve
-
58705501199 Wheel Hub Ass'y. Includes 58 to 59Wheel Hub Ass'y. Includes 58 to 59
-
59250300045 Wheel StudWheel Stud
-
60250200049 Spring WasherSpring Washer
-
61250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
62250400036 Cotter PinCotter Pin
-
63705400352 Rubber BellowRubber Bellow
-
64293650042 Oetiker ClampOetiker Clamp
-
65705400680 Wheel CapWheel Cap
-
66705400382 Front Tire. STDFront Tire. STD
-
66705400614 Front Tire. STD EuropeFront Tire. STD Europe
-
66705400431 Front Tire. XT, XT-PFront Tire. XT, XT-P
-
66705400610 Front Tire. XT Europe (Except Camo)Front Tire. XT Europe (Except Camo)
-
66705400610 Front Tire. XT-P EuropeFront Tire. XT-P Europe
-
67705400853 Front Rim. STDFront Rim. STD
-
67705400648 Front Rim. XT (Except Camo)Front Rim. XT (Except Camo)
-
67705400687 Front Rim. XT Camo, XT-PFront Rim. XT Camo, XT-P
-
68705400193 Rim Valve with Cap. Includes 68 to 69Rim Valve with Cap. Includes 68 to 69
-
69293000110 Valve CapValve Cap
-
70705501385 1/2 OZ Weight1/2 OZ Weight
-
71250100082 Chrome Wheel Nut M10 X 1.25. STDChrome Wheel Nut M10 X 1.25. STD
-
71250100082 Chrome Wheel Nut M10 X 1.25. XT (Except Camo)Chrome Wheel Nut M10 X 1.25. XT (Except Camo)
-
71250100100 Black Wheel Nut M10 X 1.25. XT Camo, XT-PBlack Wheel Nut M10 X 1.25. XT Camo, XT-P
-
72250200102 Flat Washer M12Flat Washer M12
-
73250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
74705400780 Wear SleeveWear Sleeve
-
75250200102 Flat Washer M12Flat Washer M12
-
76250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
77293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
78705400950 Fin Wheel Moulding, Steel Gray. XT-P SilverFin Wheel Moulding, Steel Gray. XT-P Silver
-
78705400681 Fin Wheel Moulding, Yellow. XT-P YellowFin Wheel Moulding, Yellow. XT-P Yellow
