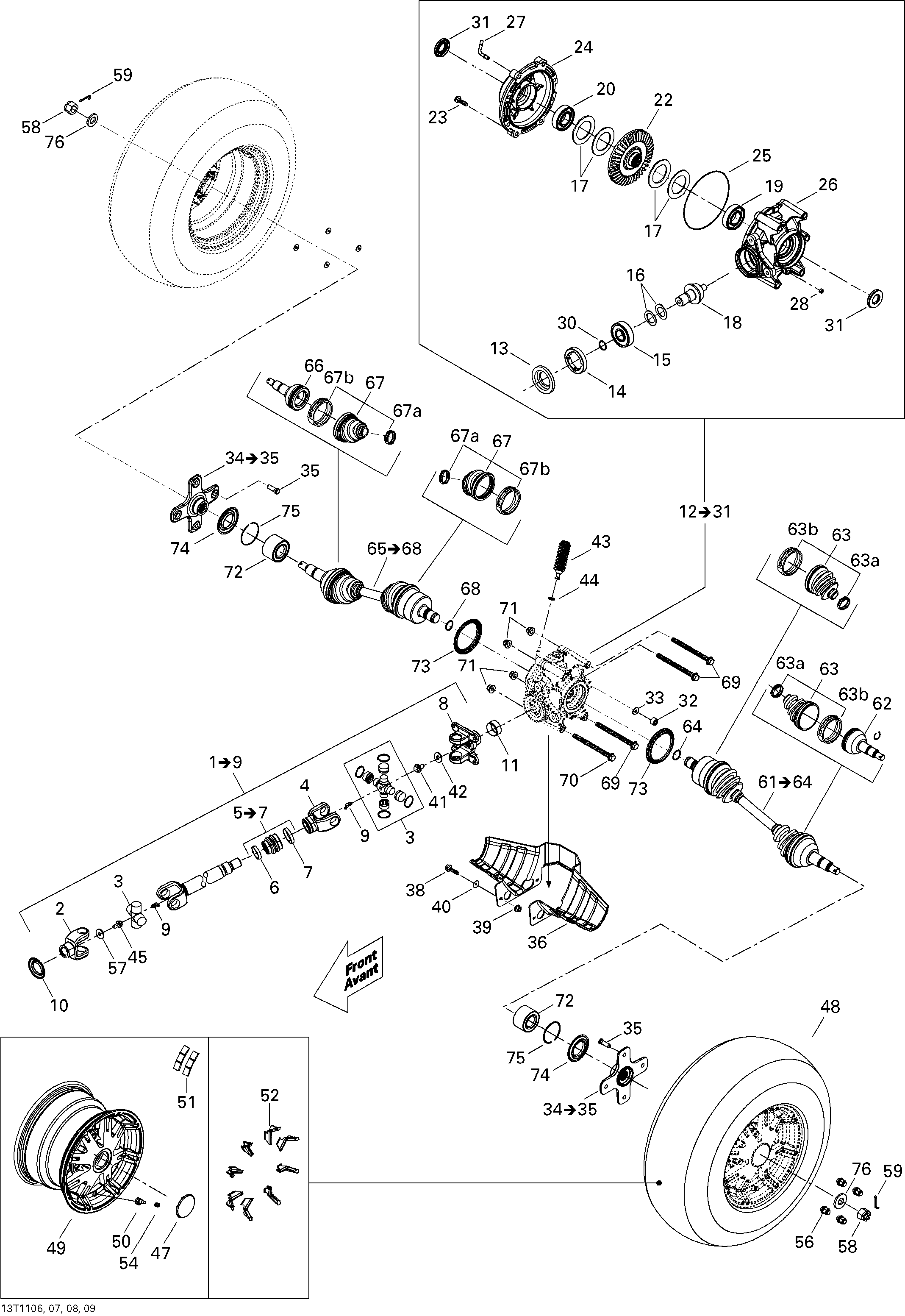

08- Drive System, Rear для BRP Outlander 800R EFI - 2011
-
№АртикулНазвание
-
1703500769 Rear Propeller Shaft Kit. Includes 1 to 9Rear Propeller Shaft Kit. Includes 1 to 9
-
1703500769 Rear Propeller Shaft Kit. Includes 1 to 9Rear Propeller Shaft Kit. Includes 1 to 9
-
2705500371 Fix JointFix Joint
-
2705500371 Fix JointFix Joint
-
3703000022 Unit Pack KitUnit Pack Kit
-
3703000022 Unit Pack KitUnit Pack Kit
-
4705501072 Sliding JointSliding Joint
-
4705501072 Sliding JointSliding Joint
-
5703500255 Rubber Boot KitRubber Boot Kit
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6293650138 Oetiker ClampOetiker Clamp
-
6293650138 Oetiker ClampOetiker Clamp
-
7703400148 Rubber Boot KitRubber Boot Kit
-
7703400148 Rubber Boot KitRubber Boot Kit
-
8705500526 Disc JointDisc Joint
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
9705500841 Grease FittingGrease Fitting
-
10705501123 ProtectorProtector
-
10705501123 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
11705400036 Wear RingWear Ring
-
12705501412 Rear Differential Ass'y. Includes 12 to 31Rear Differential Ass'y. Includes 12 to 31
-
12705501412 Rear Differential Ass'y. Includes 12 to 31Rear Differential Ass'y. Includes 12 to 31
-
13705400027 Oil SealOil Seal
-
13705400027 Oil SealOil Seal
-
14705500987 NutNut
-
14705500987 NutNut
-
15705500260 Ball BearingBall Bearing
-
15705500260 Ball BearingBall Bearing
-
16705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
16705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
16703500049 Pinion Shim KitPinion Shim Kit
-
16703500049 Pinion Shim KitPinion Shim Kit
-
16705501163 Pinion Gear Shim 2.12mmPinion Gear Shim 2.12mm
-
16705501163 Pinion Gear Shim 2.12mmPinion Gear Shim 2.12mm
-
17703500548 Differential Shim KitDifferential Shim Kit
-
17703500548 Differential Shim KitDifferential Shim Kit
-
18705501570 10Teeth Pinion10Teeth Pinion
-
18705501570 10Teeth Pinion10Teeth Pinion
-
19705500749 Ball BearingBall Bearing
-
19705500749 Ball BearingBall Bearing
-
20705501389 Ball BearingBall Bearing
-
20705501389 Ball BearingBall Bearing
-
22705501403 36Teeth Pinion36Teeth Pinion
-
22705501403 36Teeth Pinion36Teeth Pinion
-
23705500892 ScrewScrew
-
23705500892 ScrewScrew
-
24705501393 Rear CoverRear Cover
-
24705501393 Rear CoverRear Cover
-
25705500265 SealSeal
-
25705500265 SealSeal
-
26705501395 Pinion Rear CoverPinion Rear Cover
-
26705501395 Pinion Rear CoverPinion Rear Cover
-
27705500893 Vent ValveVent Valve
-
27705500893 Vent ValveVent Valve
-
28705500894 Drain PlugDrain Plug
-
28705500894 Drain PlugDrain Plug
-
30705500267 O-RingO-Ring
-
30705500267 O-RingO-Ring
-
31705501196 Oil SealOil Seal
-
31705501196 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
33705500506 Copper WasherCopper Washer
-
34705501199 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
34705501199 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300045 Wheel StudWheel Stud
-
35250300045 Wheel StudWheel Stud
-
36703500722 Protector KitProtector Kit
-
36703500722 Protector KitProtector Kit
-
38207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
38207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40250200082 Flat WasherFlat Washer
-
40250200082 Flat WasherFlat Washer
-
41250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
41250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
42250200102 Flat Washer M12Flat Washer M12
-
42250200102 Flat Washer M12Flat Washer M12
-
43705400352 Rubber BellowRubber Bellow
-
43705400352 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
44293650042 Oetiker ClampOetiker Clamp
-
45250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
45250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
47705400680 Wheel CapWheel Cap
-
47705400680 Wheel CapWheel Cap
-
48705500606 Rear Tire. XT Europe Except CAMORear Tire. XT Europe Except CAMO
-
48705500606 Rear Tire. XT Europe Except CAMORear Tire. XT Europe Except CAMO
-
48705500606 Rear Tire. XTP Silver EuropeRear Tire. XTP Silver Europe
-
48705500606 Rear Tire. XTP Silver EuropeRear Tire. XTP Silver Europe
-
48705500606 Rear Tire. XTP Yellow EuropeRear Tire. XTP Yellow Europe
-
48705500606 Rear Tire. XTP Yellow EuropeRear Tire. XTP Yellow Europe
-
48705500685 Rear Tire. STD InternationalRear Tire. STD International
-
48705500685 Rear Tire. STD InternationalRear Tire. STD International
-
48705500685 Rear Tire. STD North AmericaRear Tire. STD North America
-
48705500685 Rear Tire. STD North AmericaRear Tire. STD North America
-
48705500938 Rear Tire. STD EuropeRear Tire. STD Europe
-
48705500938 Rear Tire. STD EuropeRear Tire. STD Europe
-
48705500940 Rear Tire. XT CAMORear Tire. XT CAMO
-
48705500940 Rear Tire. XT CAMORear Tire. XT CAMO
-
48705500940 Rear Tire. XT International Except CAMORear Tire. XT International Except CAMO
-
48705500940 Rear Tire. XT International Except CAMORear Tire. XT International Except CAMO
-
48705500940 Rear Tire. XT North America Except CAMORear Tire. XT North America Except CAMO
-
48705500940 Rear Tire. XT North America Except CAMORear Tire. XT North America Except CAMO
-
48705500940 Rear Tire. XTP Silver Except EuropeRear Tire. XTP Silver Except Europe
-
48705500940 Rear Tire. XTP Silver Except EuropeRear Tire. XTP Silver Except Europe
-
48705500940 Rear Tire. XTP Yellow Except EuropeRear Tire. XTP Yellow Except Europe
-
48705500940 Rear Tire. XTP Yellow Except EuropeRear Tire. XTP Yellow Except Europe
-
49705500986 Rear Wheel. XT Europe Except CAMORear Wheel. XT Europe Except CAMO
-
49705500986 Rear Wheel. XT Europe Except CAMORear Wheel. XT Europe Except CAMO
-
49705500986 Rear Wheel. XT International Except CAMORear Wheel. XT International Except CAMO
-
49705500986 Rear Wheel. XT International Except CAMORear Wheel. XT International Except CAMO
-
49705500986 Rear Wheel. XT North America Except CAMORear Wheel. XT North America Except CAMO
-
49705500986 Rear Wheel. XT North America Except CAMORear Wheel. XT North America Except CAMO
-
49705501019 Rear Wheel. XT CAMORear Wheel. XT CAMO
-
49705501019 Rear Wheel. XT CAMORear Wheel. XT CAMO
-
49705501019 Rear Wheel. XTP Silver EuropeRear Wheel. XTP Silver Europe
-
49705501019 Rear Wheel. XTP Silver EuropeRear Wheel. XTP Silver Europe
-
49705501019 Rear Wheel. XTP Silver Except EuropeRear Wheel. XTP Silver Except Europe
-
49705501019 Rear Wheel. XTP Silver Except EuropeRear Wheel. XTP Silver Except Europe
-
49705501019 Rear Wheel. XTP Yellow EuropeRear Wheel. XTP Yellow Europe
-
49705501019 Rear Wheel. XTP Yellow EuropeRear Wheel. XTP Yellow Europe
-
49705501019 Rear Wheel. XTP Yellow Except EuropeRear Wheel. XTP Yellow Except Europe
-
49705501019 Rear Wheel. XTP Yellow Except EuropeRear Wheel. XTP Yellow Except Europe
-
49705501188 Rear Wheel. STD EuropeRear Wheel. STD Europe
-
49705501188 Rear Wheel. STD EuropeRear Wheel. STD Europe
-
49705501188 Rear Wheel. STD InternationalRear Wheel. STD International
-
49705501188 Rear Wheel. STD InternationalRear Wheel. STD International
-
49705501188 Rear Wheel. STD North AmericaRear Wheel. STD North America
-
49705501188 Rear Wheel. STD North AmericaRear Wheel. STD North America
-
50705400193 Rim Valve with CapRim Valve with Cap
-
50705400193 Rim Valve with CapRim Valve with Cap
-
51705501385 1/2 OZ Weight1/2 OZ Weight
-
51705501385 1/2 OZ Weight1/2 OZ Weight
-
52705400681 Fin Wheel Moulding, Yellow. XTP YellowFin Wheel Moulding, Yellow. XTP Yellow
-
52705400681 Fin Wheel Moulding, Yellow. XTP YellowFin Wheel Moulding, Yellow. XTP Yellow
-
52705400950 Fin Wheel Moulding, Steel Gray. XTP SilverFin Wheel Moulding, Steel Gray. XTP Silver
-
52705400950 Fin Wheel Moulding, Steel Gray. XTP SilverFin Wheel Moulding, Steel Gray. XTP Silver
-
54293000110 Valve CapValve Cap
-
54293000110 Valve CapValve Cap
-
56250100082 Chrome Wheel Nut M10 X 1.25. STDChrome Wheel Nut M10 X 1.25. STD
-
56250100082 Chrome Wheel Nut M10 X 1.25. STDChrome Wheel Nut M10 X 1.25. STD
-
56250100082 Chrome Wheel Nut M10 X 1.25. XT Except CAMOChrome Wheel Nut M10 X 1.25. XT Except CAMO
-
56250100082 Chrome Wheel Nut M10 X 1.25. XT Except CAMOChrome Wheel Nut M10 X 1.25. XT Except CAMO
-
56250100100 Black Wheel Nut M10 X 1.25. XTPBlack Wheel Nut M10 X 1.25. XTP
-
56250100100 Black Wheel Nut M10 X 1.25. XTPBlack Wheel Nut M10 X 1.25. XTP
-
56250100100 Black Wheel Nut M10 X 1.25. XT CAMOBlack Wheel Nut M10 X 1.25. XT CAMO
-
56250100100 Black Wheel Nut M10 X 1.25. XT CAMOBlack Wheel Nut M10 X 1.25. XT CAMO
-
57250200102 Flat Washer M12Flat Washer M12
-
57250200102 Flat Washer M12Flat Washer M12
-
58250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
58250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
59250400036 Cotter PinCotter Pin
-
59250400036 Cotter PinCotter Pin
-
60293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
61705500979 LH CV Joint Ass'y. Includes 61 to 64LH CV Joint Ass'y. Includes 61 to 64
-
61705500979 LH CV Joint Ass'y. Includes 61 to 64LH CV Joint Ass'y. Includes 61 to 64
-
62705500980 CV JointCV Joint
-
62705500980 CV JointCV Joint
-
63705500870 Boot Kit. Includes 63 to 63bBoot Kit. Includes 63 to 63b
-
63705500870 Boot Kit. Includes 63 to 63bBoot Kit. Includes 63 to 63b
-
63a293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
63a293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
63b293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
63b293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
64705500845 CirclipCirclip
-
64705500845 CirclipCirclip
-
65705500983 RH CV Joint Ass'y. Includes 65 to 68RH CV Joint Ass'y. Includes 65 to 68
-
65705500983 RH CV Joint Ass'y. Includes 65 to 68RH CV Joint Ass'y. Includes 65 to 68
-
66705500980 CV JointCV Joint
-
66705500980 CV JointCV Joint
-
67705500870 Boot Kit. Includes 67 to 67bBoot Kit. Includes 67 to 67b
-
67705500870 Boot Kit. Includes 67 to 67bBoot Kit. Includes 67 to 67b
-
67a293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
67a293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
67b293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
67b293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
68705500845 CirclipCirclip
-
68705500845 CirclipCirclip
-
69230603036 Hex. Flanged Screw M10 X 130Hex. Flanged Screw M10 X 130
-
69230603036 Hex. Flanged Screw M10 X 130Hex. Flanged Screw M10 X 130
-
70230603536 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
70230603536 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
71233201436 Flanged Elastic NutFlanged Elastic Nut
-
71233201436 Flanged Elastic NutFlanged Elastic Nut
-
72293350040 Cone BearingCone Bearing
-
72293350040 Cone BearingCone Bearing
-
73705501124 Wear RingWear Ring
-
73705501124 Wear RingWear Ring
-
74705501121 Wear SleeveWear Sleeve
-
74705501121 Wear SleeveWear Sleeve
-
75293370019 CirclipCirclip
-
75293370019 CirclipCirclip
-
76250200049 Spring WasherSpring Washer
-
76250200049 Spring WasherSpring Washer
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft, Piston And Cylinder OUTLANDER
- 01- Cylinder Head, Front
- 01- Cylinder Head, Rear
- 01- Engine 1
- 01- Engine 2
- 01- Engine Cooling
- 01- Engine Lubrication
- 01- Exhaust System
- 01- Gear Box And Components
- 01- Gear Box Assy and 4x4 Actuator
- 01- Gear Box Output Shaft
- 02- Air Intake Manifold And Throttle Body
- 02- Air Intake Silencer
- 02- Fuel System
- 03- Magneto And Electric Starter Outlander
- 05- Transmission Outlander
- 06- Brakes
- 06- Brakes Europe
- 07- Drive System, Front
- 07- Front Suspension
- 07- Steering STD
- 07- Steering XT, XTP
- 08- Drive Shaft
- • 08- Drive System, Rear
- 08- Rear Suspension
- 09- Body And Accessories 1
- 09- Body And Accessories 2
- 09- Body And Accessories 3
- 09- Body And Accessories 4, XT, XTP
- 09- Body And Accessories 5, Mudguard
- 09- Decals
- 09- Fender And Central Panel Kit
- 09- Frame
- 09- Front and Rear Trays
- 09- Seat
- 10- Electrical Accessories 1
- 10- Electrical Accessories Europe
- 10- Electrical Harness, Front Section Europe
- 10- Electrical System
- 10- Engine Harness And Electronic Module Outlander
- 10- Main Harness STD
- 10- Main Harness XT, XTP
- 10- Main Harness XTP, Europe
- 99- ATV Publications
