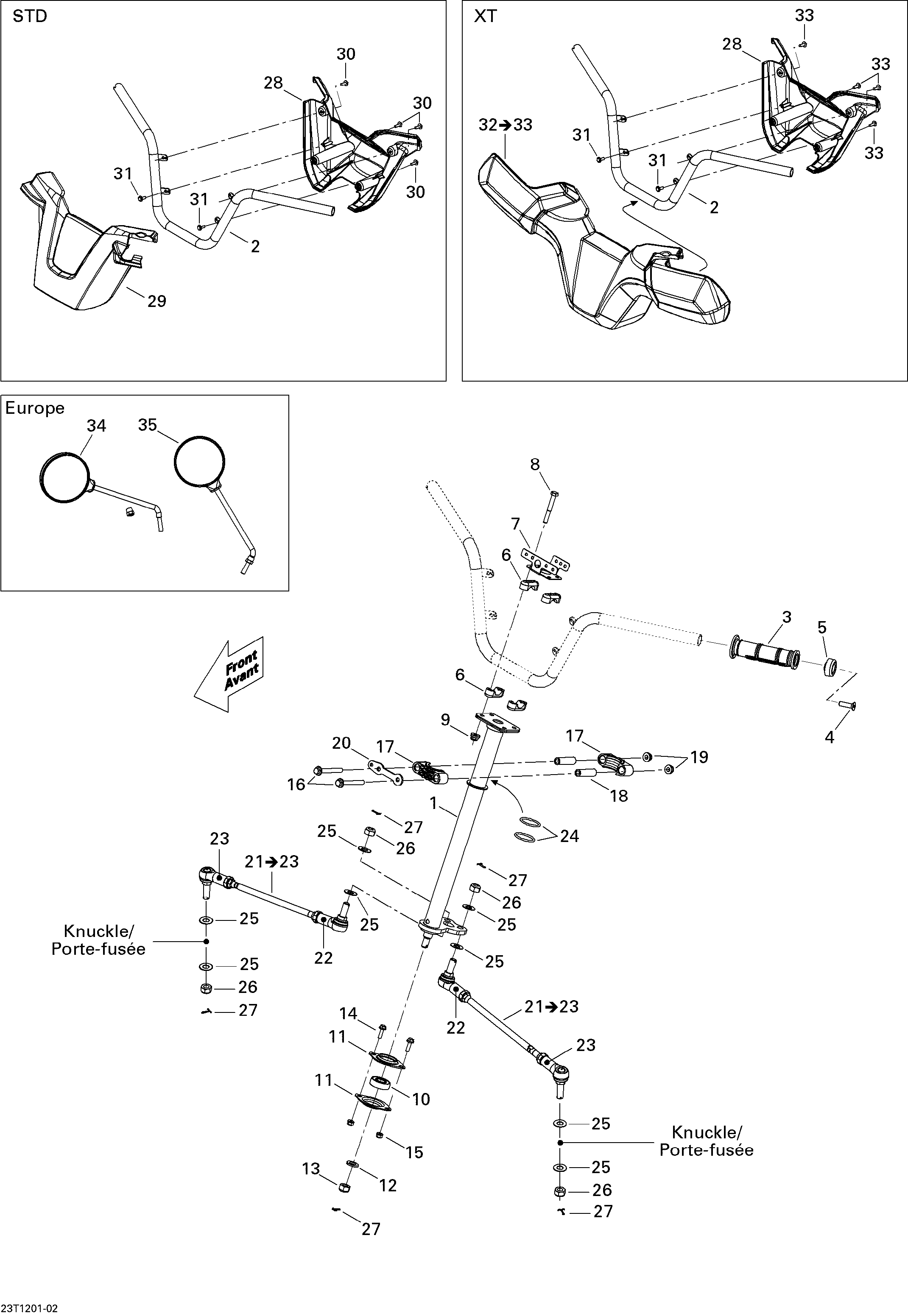

07- Steering для BRP Outlander Max STD, XT, 400 EFI - 2012
-
№АртикулНазвание
-
1709401056 Main TubeMain Tube
-
2709401041 Handle BarHandle Bar
-
3709400493 Handle GripHandle Grip
-
4205883046 Socket Head Screw, M8Socket Head Screw, M8
-
5709400868 End PieceEnd Piece
-
6709400919 Steering SupportSteering Support
-
7709400586 Connector BracketConnector Bracket
-
8207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10709400439 Ball BearingBall Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
14207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20709400053 Stopper PlateStopper Plate
-
21709400485 Tie Rod Ass'yTie Rod Ass'y
-
22709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
23709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
24293300068 O-RingO-Ring
-
25706200281 Hardened WasherHardened Washer
-
26250100099 Nut M12Nut M12
-
27211400013 Cotter PinCotter Pin
-
28709400313 Rear Steering Cover, BlackRear Steering Cover, Black
-
29709400386 Front Steering Cover, Black. STDFront Steering Cover, Black. STD
-
30250000146 Truss Head Torx Screw K50 X 16. STDTruss Head Torx Screw K50 X 16. STD
-
31243141640 Hex. Flanged Plastite Screw M4.8 X 16Hex. Flanged Plastite Screw M4.8 X 16
-
32703100217 Handle Guard, XT. XT, Includes 32 to 33Handle Guard, XT. XT, Includes 32 to 33
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
34709400406 LH Mirror. EuropeLH Mirror. Europe
-
35709400407 RH Mirror. EuropeRH Mirror. Europe
