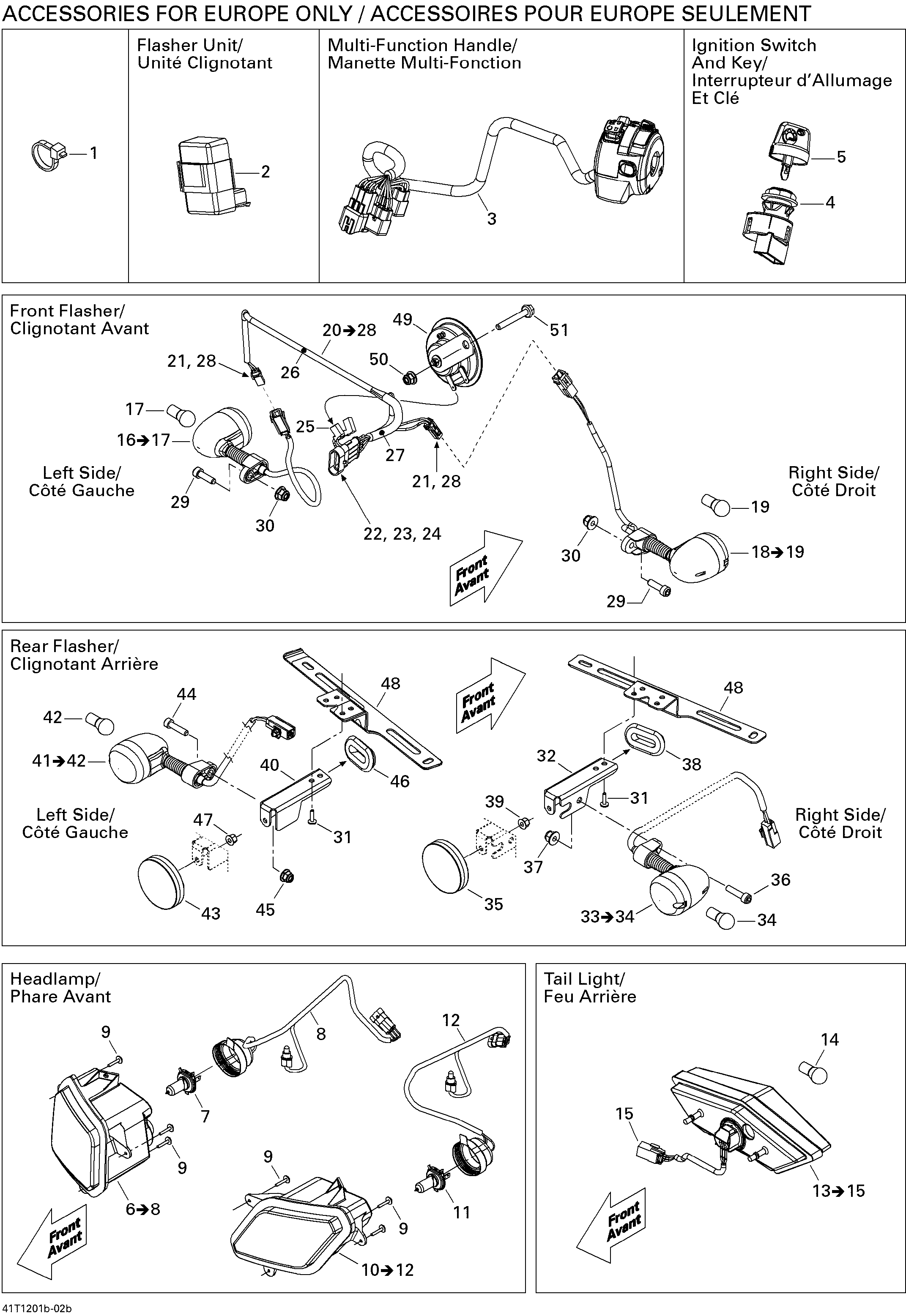

10- Electrical Accessories 2, Europe для BRP Outlander Max STD, XT, 400 EFI - 2012
-
№АртикулНазвание
-
1293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2710002393 Flasher UnitFlasher Unit
-
3710003037 Multi-Function HandleMulti-Function Handle
-
4710002324 Ignition SwitchIgnition Switch
-
5710000817 Black-Electronic KeyBlack-Electronic Key
-
6710000861 RH Headlamp Ass'y. Includes 6 to 7RH Headlamp Ass'y. Includes 6 to 7
-
7710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
8710000923 Headlamp HarnessHeadlamp Harness
-
9250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
10710000862 LH Headlamp Ass'y. Includes 10 to 12LH Headlamp Ass'y. Includes 10 to 12
-
11710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
12710000923 Headlamp HarnessHeadlamp Harness
-
13710001204 Tail Light Housing Ass'y. Includes 13 to 15Tail Light Housing Ass'y. Includes 13 to 15
-
14520000758 BulbBulb
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16710001079 Flashing Light Ass'yFlashing Light Ass'y
-
17415129258 BulbBulb
-
18710001080 Flashing Light Ass'yFlashing Light Ass'y
-
19415129258 BulbBulb
-
20710001495 Front Harness Ass'y. Includes 20 to 28Front Harness Ass'y. Includes 20 to 28
-
21515175231 Female TerminalFemale Terminal
-
22409012900 Male TerminalMale Terminal
-
23710000576 Housing, 4circuitsHousing, 4circuits
-
24278001013 Wire SealWire Seal
-
25409010300 Female TerminalFemale Terminal
-
26515175442 Tubing 6 mmTubing 6 mm
-
27409901700 Tubing 9 mmTubing 9 mm
-
28515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
29205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
32710001329 BracketBracket
-
33710001079 Flashing Light Ass'y. Includes 33 to 34Flashing Light Ass'y. Includes 33 to 34
-
34415129258 BulbBulb
-
35705002408 Reflector, RedReflector, Red
-
36205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38705003668 Oblong GrommetOblong Grommet
-
39233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
40710001330 BracketBracket
-
41710001080 Flashing Light Ass'y. Includes 41 to 42Flashing Light Ass'y. Includes 41 to 42
-
42415129258 BulbBulb
-
43705002408 Reflector, RedReflector, Red
-
44205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
45233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
46705003668 Oblong GrommetOblong Grommet
-
47233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
48710001241 BracketBracket
-
49710000983 HornHorn
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
