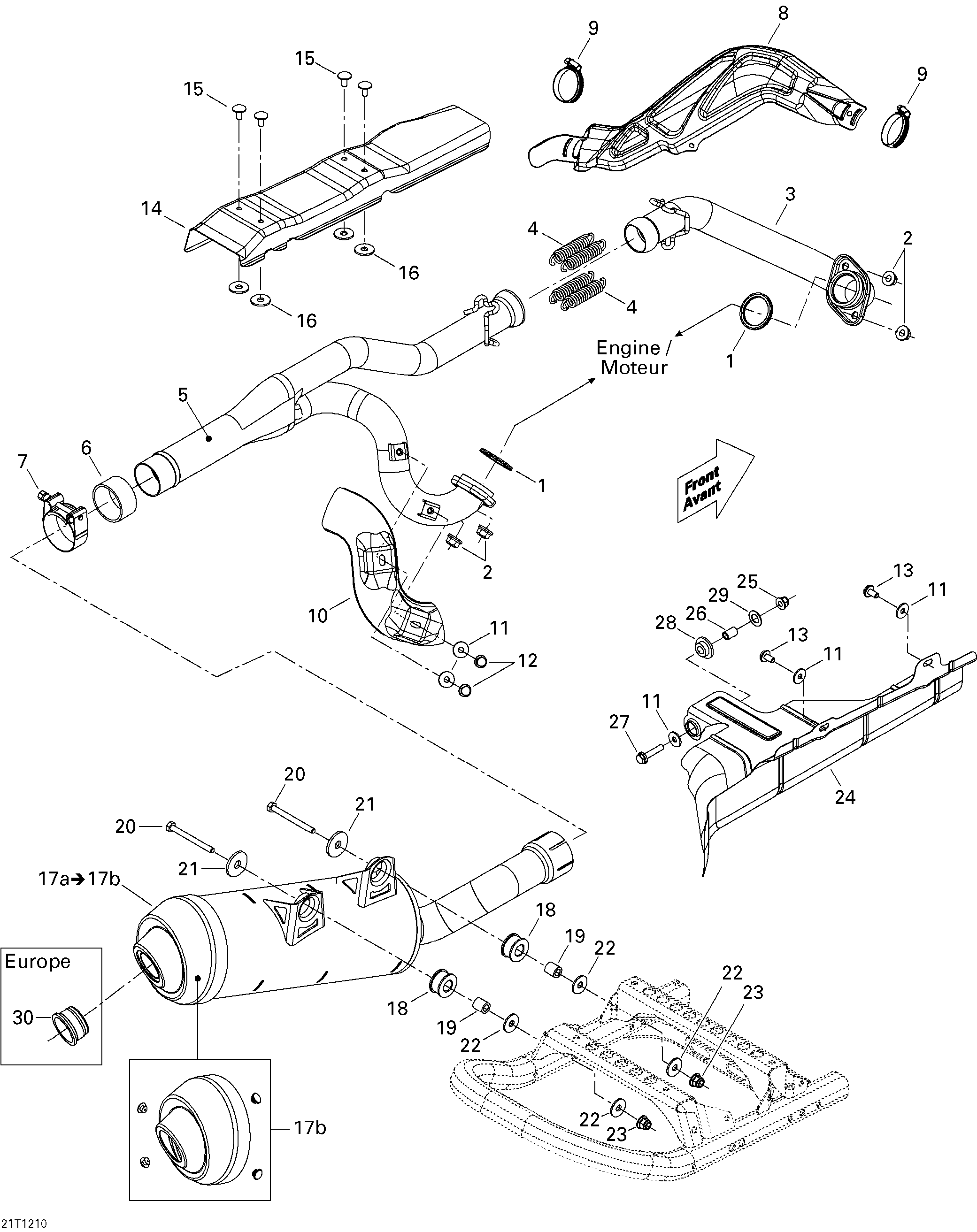

01- Exhaust System для BRP Renagade 500EFI STD - 2012
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3707600529 Front Tuned PipeFront Tuned Pipe
-
4415107100 SpringSpring
-
5707600530 Rear Tuned PipeRear Tuned Pipe
-
6707600430 Pipe GasketPipe Gasket
-
7293650177 Norma Gear ClampNorma Gear Clamp
-
8707600889 Heat ShieldHeat Shield
-
9293650098 Norma Gear ClampNorma Gear Clamp
-
10707600615 ProtectorProtector
-
11391302000 Flat WasherFlat Washer
-
12250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14707600700 Heat ShieldHeat Shield
-
15390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
16517124300 WasherWasher
-
17707600578 Muffler. Includes 17 to 17bMuffler. Includes 17 to 17b
-
17707600579 Muffler. Includes 17 to 17b, EuropeMuffler. Includes 17 to 17b, Europe
-
17b703500701 Muffler Cap KitMuffler Cap Kit
-
18707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
19293900106 BushingBushing
-
20207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
21503032900 WasherWasher
-
22234082410 Flat Washer 8 mmFlat Washer 8 mm
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24707600621 ProtectorProtector
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26293900078 SleeveSleeve
-
27207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
28705003932 GrommetGrommet
-
29503175800 WasherWasher
-
30707600556 Restrictor. EuropeRestrictor. Europe
