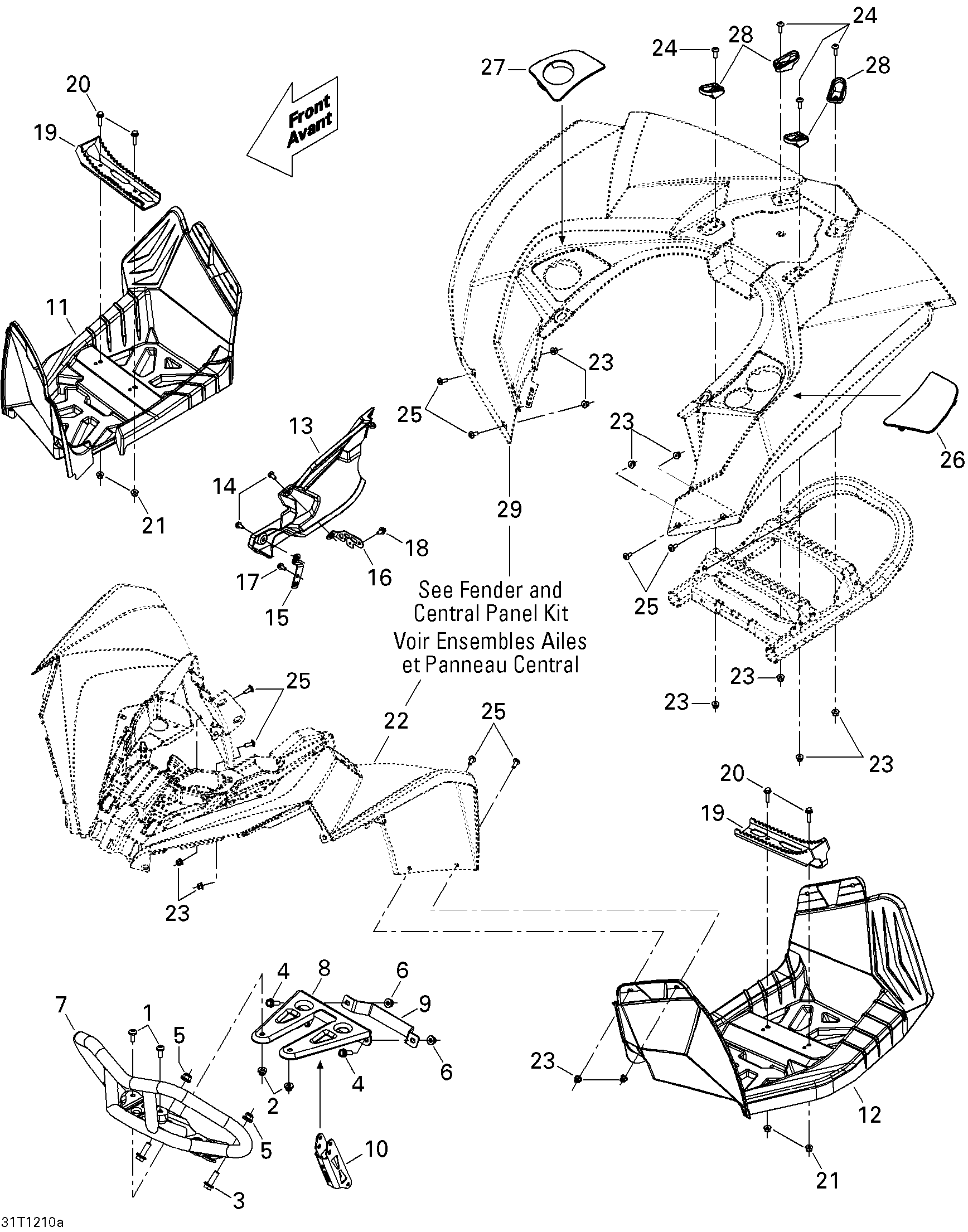

09- Body And Accessories 1 для BRP Renagade 500EFI STD - 2012
-
№АртикулНазвание
-
1250000117 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3207603044 Hex. Flanged Screw M10 X 30Hex. Flanged Screw M10 X 30
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7705003300 Front BumperFront Bumper
-
8705002279 AttacheAttache
-
9705002520 Bumper Bracket, BlackBumper Bracket, Black
-
10705002282 SupportSupport
-
11705003136 RH FootboardRH Footboard
-
12705003135 LH FootboardLH Footboard
-
13705003839 Engine CoverEngine Cover
-
14210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
15705003646 Engine Cover SupportEngine Cover Support
-
16705002667 Engine Cover SupportEngine Cover Support
-
17210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
19705002326 FootrestFootrest
-
20207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
25250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
26705001910 LH Cap, BlackLH Cap, Black
-
27705002420 Neck CapNeck Cap
-
28705002342 HookHook
