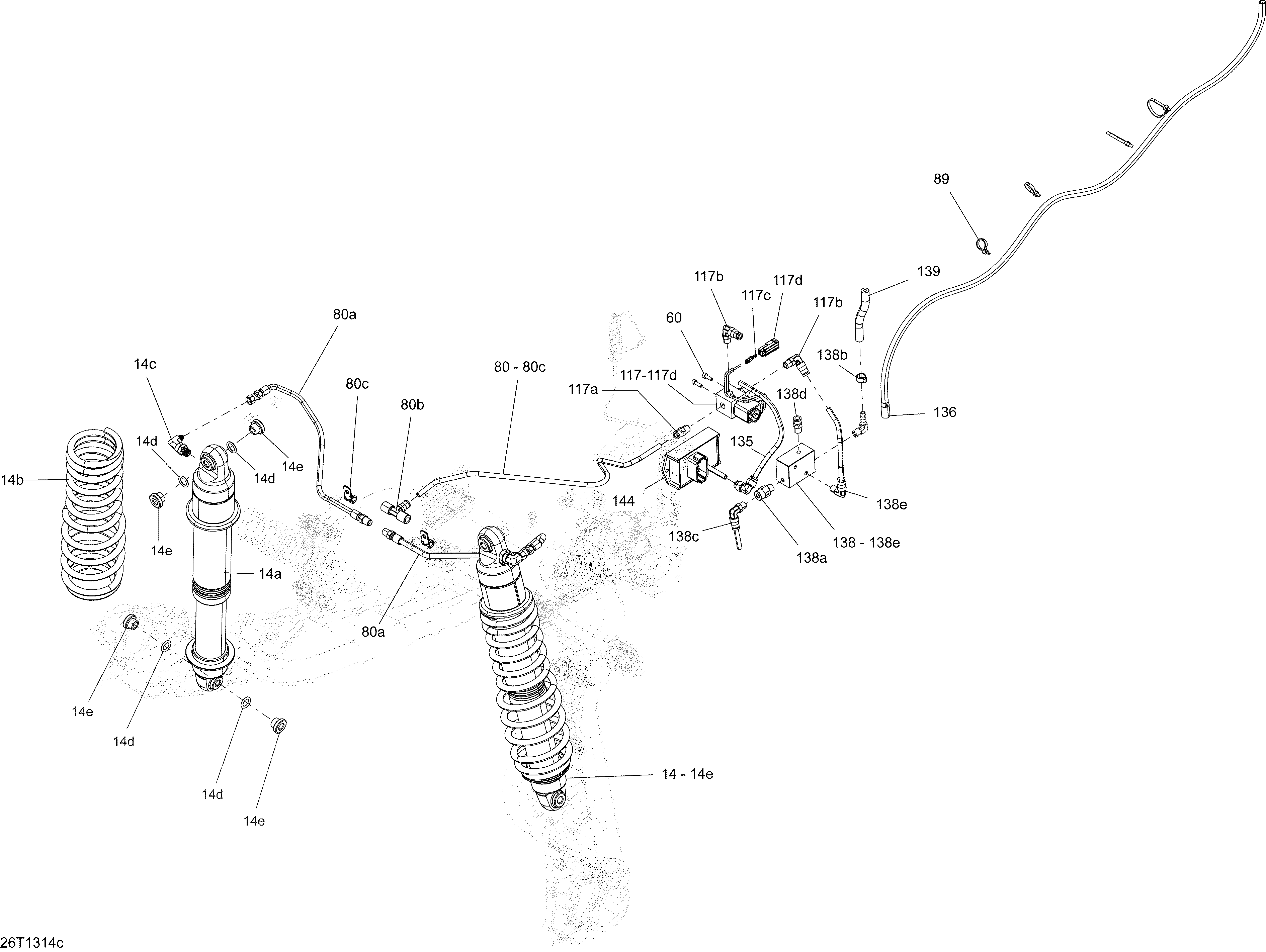

08- Rear Suspension LTD для BRP Outlander MAX 1000EFI LTD - 2013
-
№АртикулНазвание
-
14a706000930 Rear Shock. LTDRear Shock. LTD
-
14b706000836 Rear Spring. LTDRear Spring. LTD
-
14c706001200 Elbow 90°. LTDElbow 90°. LTD
-
14d715900209 O-Ring Bushing. LTDO-Ring Bushing. LTD
-
14e715900210 Interior Bushing. LTDInterior Bushing. LTD
-
60205041284 Socket Head Screw M4 X 12. LTDSocket Head Screw M4 X 12. LTD
-
80706001341 Rear Shock Distributor Ass'yRear Shock Distributor Ass'y
-
80b706000946 ''T'' Fitting''T'' Fitting
-
80c705600459 ClampClamp
-
89293750002 Tie-Rap 142 mm. LTDTie-Rap 142 mm. LTD
-
117706001367 Pressure Collector Ass'y. LTDPressure Collector Ass'y. LTD
-
117a706000869 Connector. LTDConnector. LTD
-
117b706000928 Elbow 90°. LTDElbow 90°. LTD
-
117c515175232 Male Terminal. LTDMale Terminal. LTD
-
117d515175654 Male Terminal Housing, 2 Circuits. LTDMale Terminal Housing, 2 Circuits. LTD
-
135706001216 Hose Ass'yHose Ass'y
-
136415080200 Hose, PolyurethaneHose, Polyurethane
-
138706001388 Hose Ass'yHose Ass'y
-
138a706000860 Check ValveCheck Valve
-
138b293650207 Clamp OetikerClamp Oetiker
-
138c706000928 Elbow 90°Elbow 90°
-
138d706000869 ConnectorConnector
-
138e706000872 Elbow 90°Elbow 90°
-
144710003204 Calibrated Module. LTDCalibrated Module. LTD
