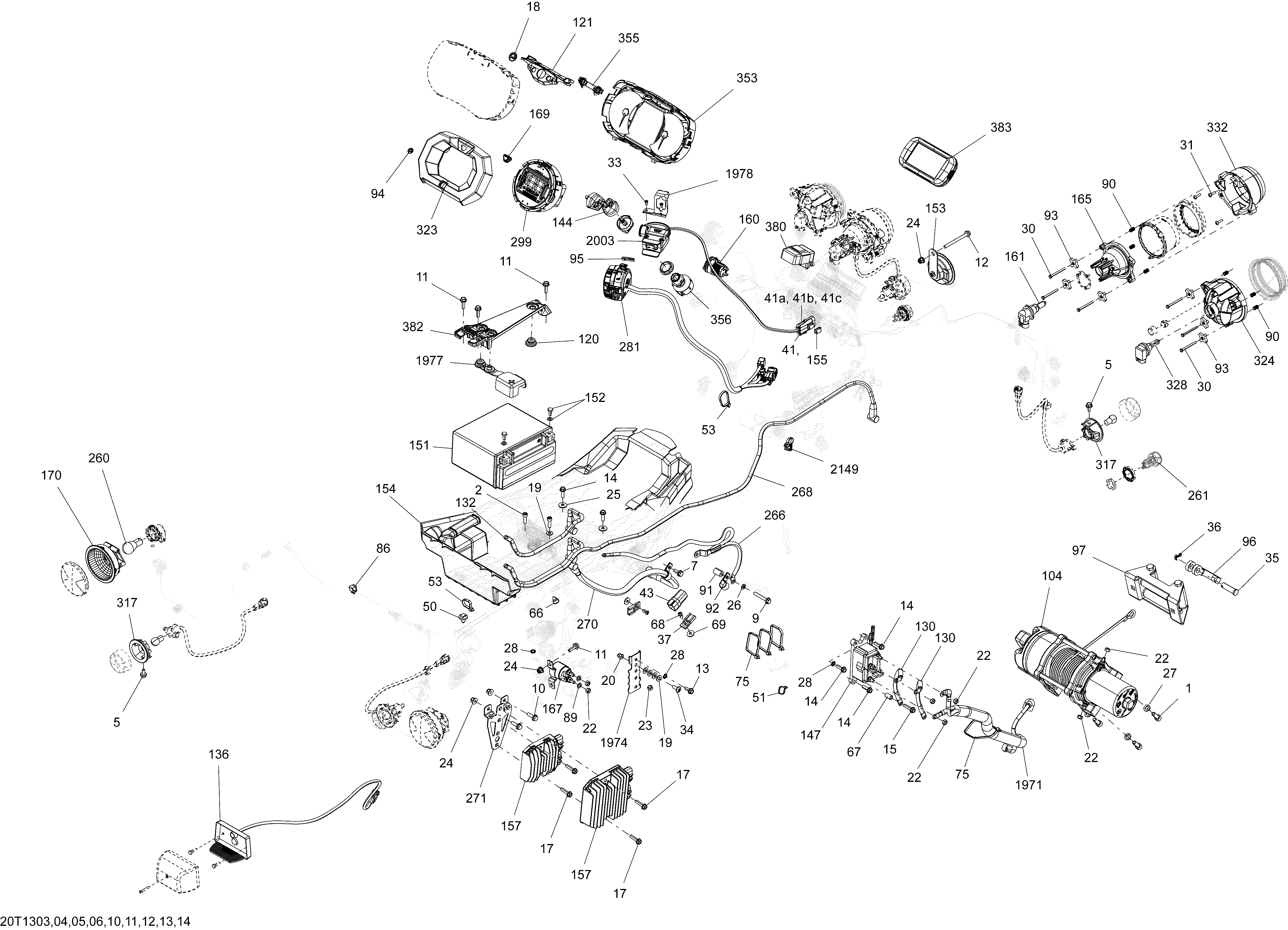

10- Electrical System для BRP Outlander MAX 1000EFI LTD - 2013
-
№АртикулНазвание
-
1205082044 Socket Head Screw M8 X 20. LTDSocket Head Screw M8 X 20. LTD
-
2205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
5207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. OUT-MAX EuropeHex. Flanged Screw M6 X 12, Scotch Grip. OUT-MAX Europe
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. 1000Hex. Flanged Screw M6 X 16, Scotch Grip. 1000
-
10207662044 Hex. Flanged Screw M6 X 20. OUT-MAXHex. Flanged Screw M6 X 20. OUT-MAX
-
11207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12207667044 Hex. Flange Screw M6 X 70. OUT-MAX EuropeHex. Flange Screw M6 X 70. OUT-MAX Europe
-
13210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
15210263580 Hex. Flanged Forming Screw M6 X 25. LTD Except EuropeHex. Flanged Forming Screw M6 X 25. LTD Except Europe
-
17210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
18219902677 Logo BRP, 20 mm. LTDLogo BRP, 20 mm. LTD
-
19224061121 Flat WasherFlat Washer
-
20232361493 Domed Nut M6Domed Nut M6
-
22232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25234062670 Flat WasherFlat Washer
-
27234181401 Lock Washer 8 mm. LTDLock Washer 8 mm. LTD
-
28234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
30241044540 Hexagonal Screw K40 X 45Hexagonal Screw K40 X 45
-
31250000084 Phillips Screw K40 X 16. OUT-MAXPhillips Screw K40 X 16. OUT-MAX
-
33250000153 Hex. Cap Screw 6-32 X 1/4''. LTDHex. Cap Screw 6-32 X 1/4''. LTD
-
34250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
35250400021 Clevis Pin. LTDClevis Pin. LTD
-
36250400022 Cotter Pin. LTDCotter Pin. LTD
-
37270000141 ClipClip
-
41710000917 Connector Ass'yConnector Ass'y
-
41a278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
41b278000216 Wire SealWire Seal
-
41c710000992 ClipClip
-
43710003006 HousingHousing
-
50293730040 Mount Dart. OUT-MAXMount Dart. OUT-MAX
-
51293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
66293830005 Rubber PlugRubber Plug
-
67293900078 Sleeve. LTD Except EuropeSleeve. LTD Except Europe
-
68390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
69391301600 WasherWasher
-
75293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
86414227300 ClipClip
-
89234161601 Lock Washer Helical M6Lock Washer Helical M6
-
90517168600 Spring. OUT-MAXSpring. OUT-MAX
-
92518321570 Open ClampOpen Clamp
-
93572106600 Handle. OUT-MAXHandle. OUT-MAX
-
95704901835 DPS Label. LTD EuropeDPS Label. LTD Europe
-
96705002329 Hook. LTDHook. LTD
-
97715000011 Winch Roller. LTDWinch Roller. LTD
-
104705003296 Winch. LTDWinch. LTD
-
120705003666 Rubber GrommetRubber Grommet
-
121705004366 Cap Support. LTDCap Support. LTD
-
130710003003 Negative Harness. LTDNegative Harness. LTD
-
136710002721 Licence Light. OUT-MAX EuropeLicence Light. OUT-MAX Europe
-
144710000817 Black-Electronic Key. EuropeBlack-Electronic Key. Europe
-
144710000817 Black-Electronic Key. Except EuropeBlack-Electronic Key. Except Europe
-
147710001000 Winch Solenoid. LTDWinch Solenoid. LTD
-
151410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
152295500849 Battery Fastener KitBattery Fastener Kit
-
153710000983 Horn. OUT-MAX EuropeHorn. OUT-MAX Europe
-
154710003325 Battery SupportBattery Support
-
155710000992 Clip. LTDClip. LTD
-
157710001191 Voltage RegulatorVoltage Regulator
-
160710001248 Outlet DC. OUT-MAXOutlet DC. OUT-MAX
-
161415129249 Halogen Bulb. OUT-MAXHalogen Bulb. OUT-MAX
-
165710002525 High Beam Ass'y. OUT-MAXHigh Beam Ass'y. OUT-MAX
-
167710001364 Starter RelayStarter Relay
-
170710001645 Tail Light. OUT-MAXTail Light. OUT-MAX
-
260520000758 Bulb. OUT-MAXBulb. OUT-MAX
-
261710001726 Day Light. OUT-MAX EuropeDay Light. OUT-MAX Europe
-
266710001747 Ground Cable Ass'yGround Cable Ass'y
-
268710001748 Battery Positive Cable. LTDBattery Positive Cable. LTD
-
270710001750 Positive CablePositive Cable
-
271710001752 Rectifier Support. OUT-MAXRectifier Support. OUT-MAX
-
281710003037 Multi-Function Handle. EuropeMulti-Function Handle. Europe
-
281710003062 Multi-Function Handle. LTD Except EuropeMulti-Function Handle. LTD Except Europe
-
317710002964 Flasher. OUT-MAX EuropeFlasher. OUT-MAX Europe
-
324710002191 Low Beam. OUT-MAXLow Beam. OUT-MAX
-
328715900141 Bulb 12V 55W. OUT-MAXBulb 12V 55W. OUT-MAX
-
332710002291 RH High Front Housing. OUT-MAXRH High Front Housing. OUT-MAX
-
332710002292 LH High Front Housing. OUT-MAXLH High Front Housing. OUT-MAX
-
353710002310 Calibrated Speedometer Ass'y. LTDCalibrated Speedometer Ass'y. LTD
-
355710002312 Button. LTDButton. LTD
-
356710002327 Ignition Switch. OUT-MAXIgnition Switch. OUT-MAX
-
380710003239 Flasher Unit. EuropeFlasher Unit. Europe
-
382710002404 Fixation PlateFixation Plate
-
383715001406 GPS Europe. LTD EuropeGPS Europe. LTD Europe
-
383715001406 GPS Europe. LTD InternationalGPS Europe. LTD International
-
383710002544 GPS. LTD North AmericaGPS. LTD North America
-
1971710002560 Winch Cables. LTDWinch Cables. LTD
-
1974710002567 BracketBracket
-
1977710002569 CapCap
-
1978710002631 Winch Interrupter Support. LTDWinch Interrupter Support. LTD
-
2003710002724 Winch Interrupter. LTDWinch Interrupter. LTD
-
2149710002896 Tie-Rap ClipTie-Rap Clip
-
2149710002896 Tie-Rap Clip. OUT-MAX EuropeTie-Rap Clip. OUT-MAX Europe
