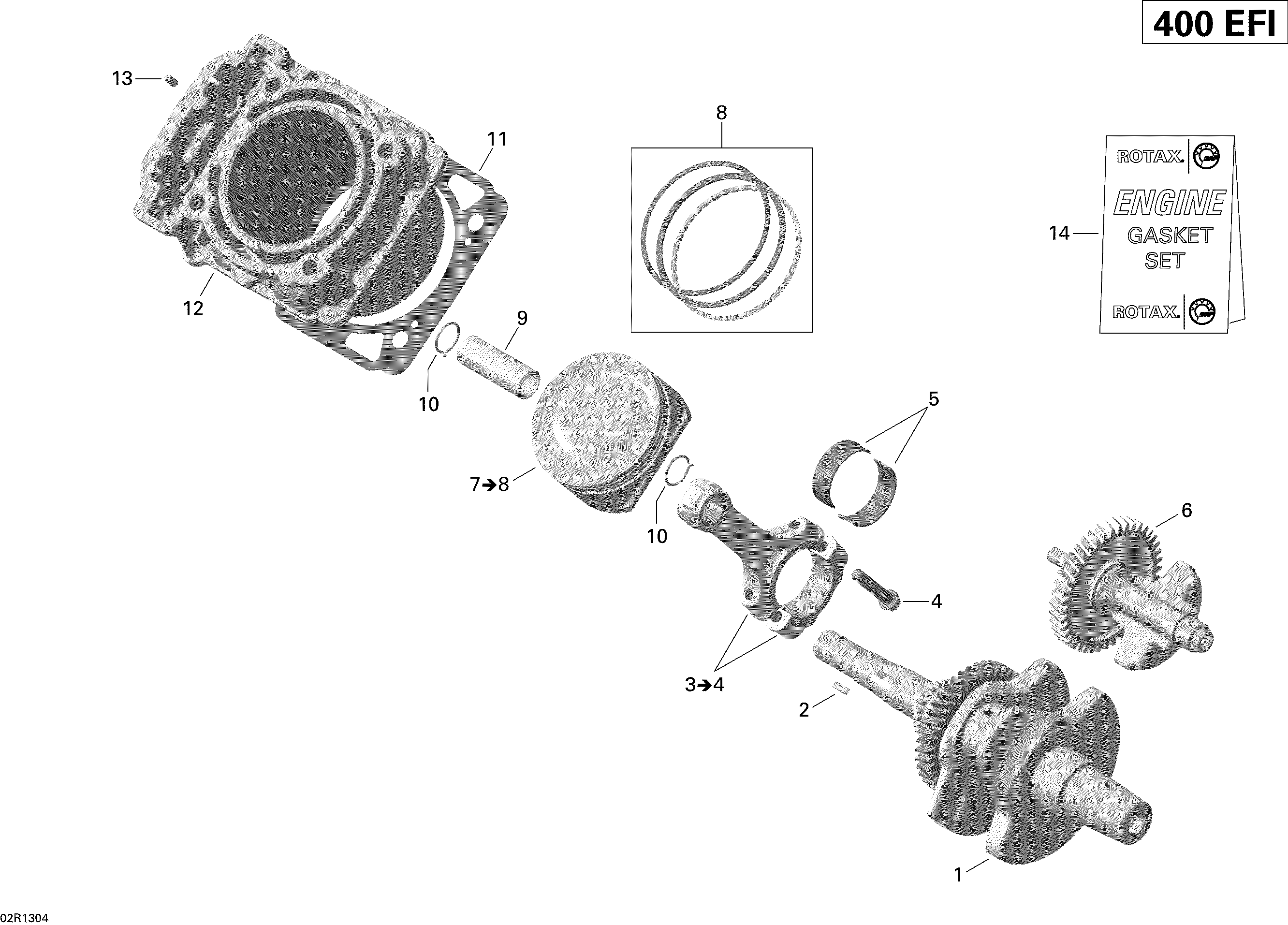

01- Crankshaft And Pistons для BRP Outlander STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1420296671 Crankshaft Ass'yCrankshaft Ass'y
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420217429 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6420620035 Balance Shaft Ass'yBalance Shaft Ass'y
-
7420296775 Piston Ass'y, 90.958 mm. Includes 7 to 8Piston Ass'y, 90.958 mm. Includes 7 to 8
-
7420296776 Piston Ass'y, Oversize, 91.208 mm. Includes 7 to 8Piston Ass'y, Oversize, 91.208 mm. Includes 7 to 8
-
8420296774 Piston Ring SetPiston Ring Set
-
9420216270 Piston PinPiston Pin
-
10420845109 Piston CirclipPiston Circlip
-
11420630210 GasketGasket
-
12420613587 Cylinder With SleeveCylinder With Sleeve
-
13420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
14420685129 Gasket SetGasket Set
