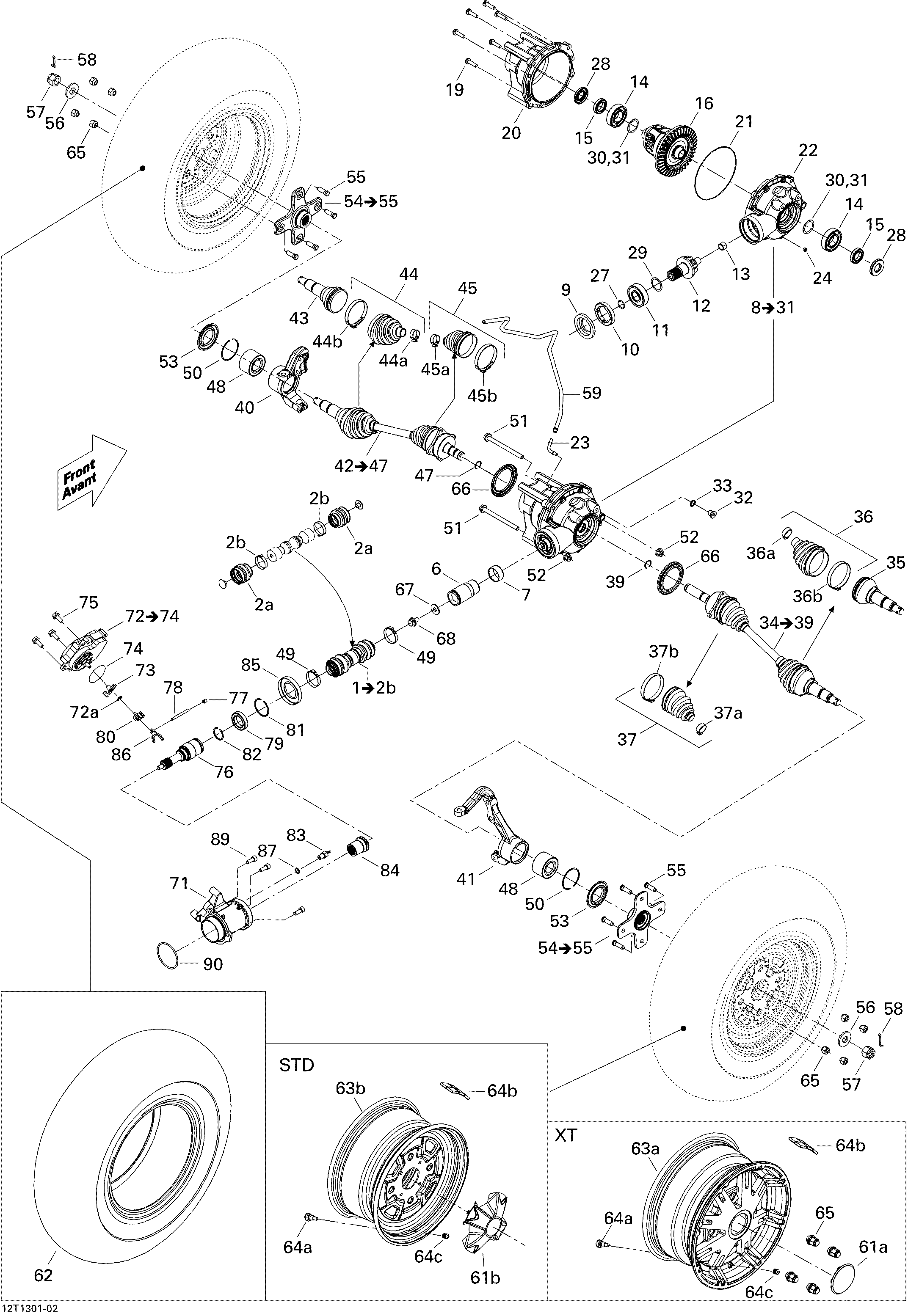

07- Drive System, Front для BRP Outlander STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1705400912 Front Drive Axle Ass'y. Includes 1 to 2bFront Drive Axle Ass'y. Includes 1 to 2b
-
2a715900118 Rubber BootRubber Boot
-
2b509000045 Gear ClampGear Clamp
-
6703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
7705400036 Wear RingWear Ring
-
8705401479 Front Differential Ass'y. Includes 8 to 31Front Differential Ass'y. Includes 8 to 31
-
9705401481 Oil SealOil Seal
-
10705400661 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705501588 10 Teeth Pinion10 Teeth Pinion
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400645 DifferentialDifferential
-
19705500892 ScrewScrew
-
20705400762 Front CoverFront Cover
-
21705500265 SealSeal
-
22705400761 Front CoverFront Cover
-
23705500893 Vent ValveVent Valve
-
24705500894 Drain PlugDrain Plug
-
27705500267 O-RingO-Ring
-
28705500255 Oil SealOil Seal
-
29703500049 Pinion Shim KitPinion Shim Kit
-
29703500049 Pinion Shim KitPinion Shim Kit
-
29703500049 Pinion Shim KitPinion Shim Kit
-
29705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
29705501162 Pinion Gear ShimPinion Gear Shim
-
30703500288 Differential Shim KitDifferential Shim Kit
-
31703500050 Differential Shim KitDifferential Shim Kit
-
32705500504 Fill Level PlugFill Level Plug
-
33705500506 Copper WasherCopper Washer
-
34705401110 RH Homocinetic Joint. Includes 34 to 39RH Homocinetic Joint. Includes 34 to 39
-
40705400816 LH KnuckleLH Knuckle
-
41705400818 RH KnuckleRH Knuckle
-
42705401109 LH Homocinetic Joint. Includes 42 to 47LH Homocinetic Joint. Includes 42 to 47
-
48293350040 Cone BearingCone Bearing
-
49293650138 Oetiker ClampOetiker Clamp
-
50293370019 CirclipCirclip
-
51230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
52233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
53705501121 Wear SleeveWear Sleeve
-
54705501713 Wheel Hub. Includes 54 to 55Wheel Hub. Includes 54 to 55
-
55250300045 Wheel StudWheel Stud
-
56250200049 Spring WasherSpring Washer
-
57250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
58250400036 Cotter PinCotter Pin
-
59415080200 Hose, PolyurethaneHose, Polyurethane
-
61a705400563 Wheel Cap. STDWheel Cap. STD
-
61b705400680 Wheel Cap. XTWheel Cap. XT
-
62705400606 Front Tire. XT InternationalFront Tire. XT International
-
63a705400648 Front Rim. XTFront Rim. XT
-
64a705400193 Rim Valve With CapRim Valve With Cap
-
64b705501385 1/2 OZ Weight1/2 OZ Weight
-
62705400606 Front Tire. XT North AmericaFront Tire. XT North America
-
62705400326 Front Tire. XT EuropeFront Tire. XT Europe
-
62705400607 Front Tire. STD EuropeFront Tire. STD Europe
-
63b705401199 Black Front Rim. STDBlack Front Rim. STD
-
62705400009 Front Tire. STD North AmericaFront Tire. STD North America
-
62705400009 Front Tire. STD InternationalFront Tire. STD International
-
64c293000110 Valve CapValve Cap
-
65250100042 Wheel Nut. STDWheel Nut. STD
-
65250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
66705400780 Wear SleeveWear Sleeve
-
67250200102 Flat Washer M12Flat Washer M12
-
68250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
71705400169 HousingHousing
-
72705400581 Actuator Ass'y. Includes 72 to 74Actuator Ass'y. Includes 72 to 74
-
72a415129176 CirclipCirclip
-
73705400274 ForkFork
-
74293300117 O-RingO-Ring
-
75250000137 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
76705400917 Union ShaftUnion Shaft
-
77206580890 Pressure Screw M8 X 8Pressure Screw M8 X 8
-
78250400025 Dowell PinDowell Pin
-
79705400249 Ball BearingBall Bearing
-
80705400956 SliderSlider
-
81293370029 CirclipCirclip
-
82293370030 CirclipCirclip
-
83710000324 SwitchSwitch
-
84705400389 Coupling SleeveCoupling Sleeve
-
85293250138 Oil SealOil Seal
-
86705400387 Shifter PlateShifter Plate
-
87705600310 Copper WasherCopper Washer
-
89250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
90293300091 O-RingO-Ring
