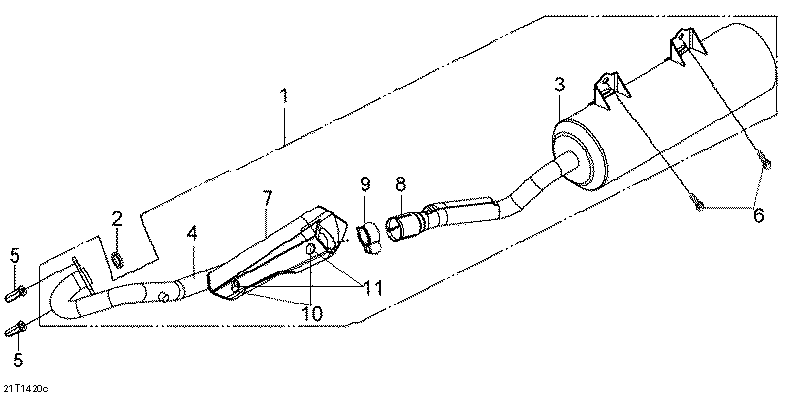

01- Exhaust System EUR для BRP DS 250 NA, EUR & INT - 2014
-
№АртикулНазвание
-
2S18291H9A000 Exhaust Gasket. EURExhaust Gasket. EUR
-
3S18310RB1300 Muffler Ass'y. EURMuffler Ass'y. EUR
-
4S1832ARB1000 Exhaust Pipe. EURExhaust Pipe. EUR
-
5S90043RFS000 Cap Nut. EURCap Nut. EUR
-
6S958010801607 Flanged Bolt M8 X 16. EURFlanged Bolt M8 X 16. EUR
-
7S18317RB1000 Exhaust Protector. EURExhaust Protector. EUR
-
8S18319HMA300 Exhaust Gasket. EURExhaust Gasket. EUR
-
9S18321RB1000 Muffler Clamp 37MM. EURMuffler Clamp 37MM. EUR
-
10S90103V02000 Bolt 6 x 12. EURBolt 6 x 12. EUR
-
11S90107V02000 Washer. EURWasher. EUR
