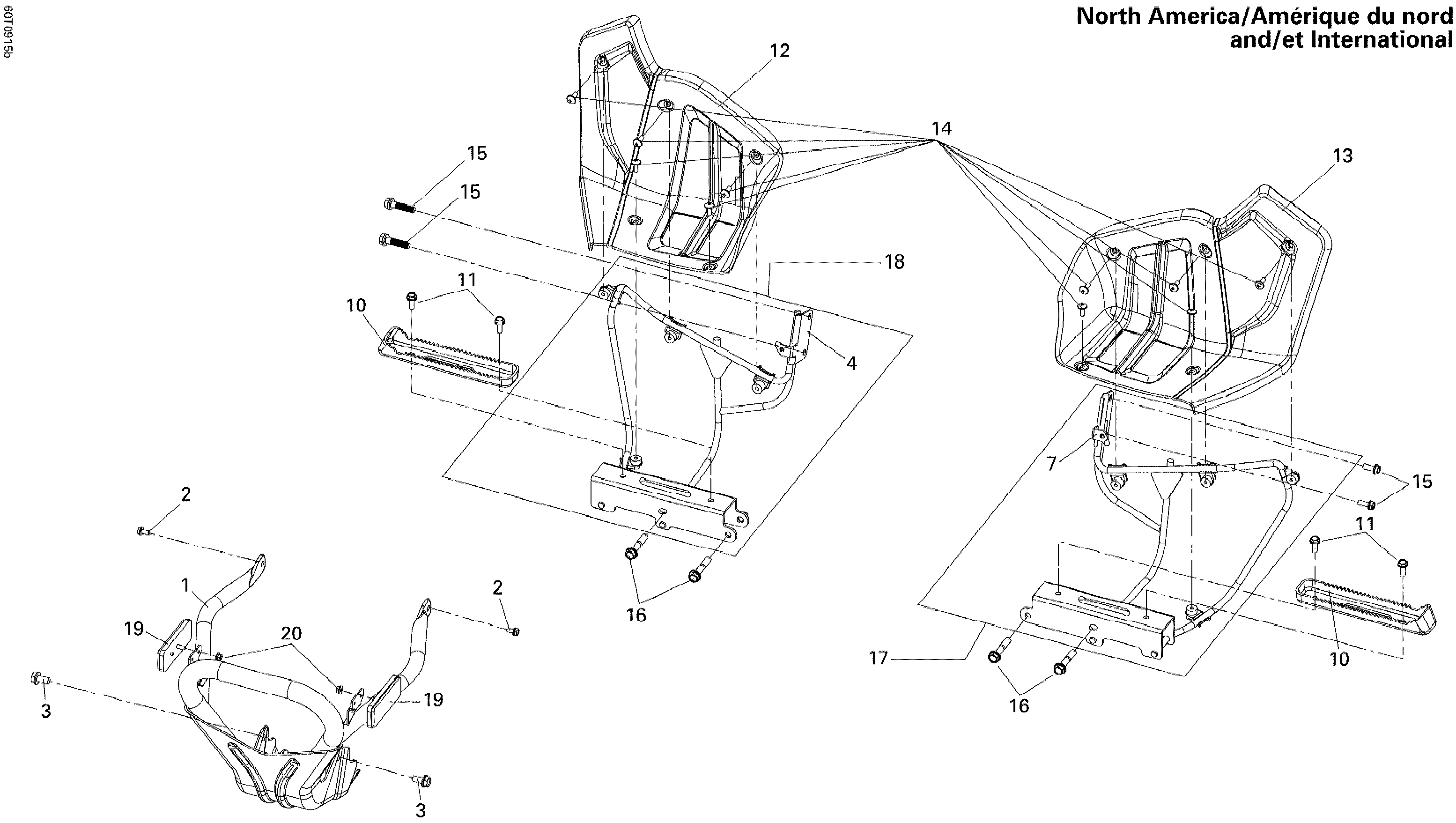

09- Front Bumper And Footrests North America, International для BRP DS 250 NA, EUR & INT - 2014
-
№АртикулНазвание
-
1S50400RCB000 Front BumperFront Bumper
-
2S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
3S958010801407 Flanged Bolt M8 X 14Flanged Bolt M8 X 14
-
10S50620RCA000 Foot PegFoot Peg
-
11S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
12S64310RCA000 RH FootrestRH Footrest
-
13S64410RCA000 LH FootrestLH Footrest
-
14S90118T15000 Washer ScrewWasher Screw
-
15S958010801407 Flanged Bolt M8 X 14Flanged Bolt M8 X 14
-
16S958010805007 Flanged Bolt M8 X 50Flanged Bolt M8 X 50
-
17S5055ARCA000 LH Footrest BarLH Footrest Bar
-
18S5054ARCA000 RH Footrest BarRH Footrest Bar
-
19S33741M9A000 ReflectorReflector
-
20S9405050000 Hex. Flanged Nut 5 mmHex. Flanged Nut 5 mm
