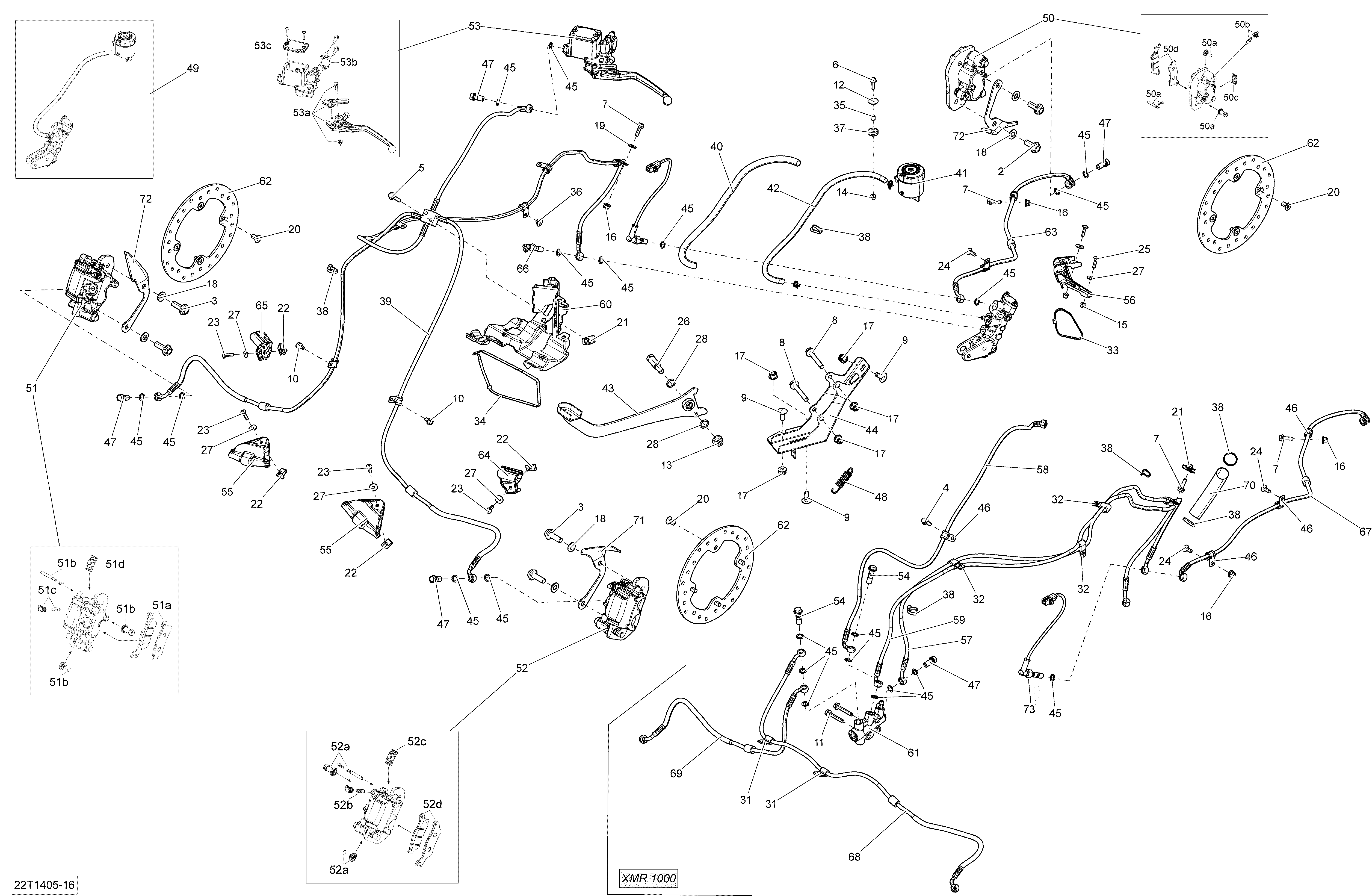

06- Brakes для BRP Outlander 1000EFI XMR - 2014
-
№АртикулНазвание
-
2207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
3207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
4207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
6207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
9207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
11210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
12224060201 Flat WasherFlat Washer
-
13233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
14233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
15233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
21250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
22250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
24250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
25250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
26250000513 Shoulder Screw M10Shoulder Screw M10
-
27250200025 Washer M5Washer M5
-
28293300144 O-RingO-Ring
-
31293650219 ClampClamp
-
32293650220 ClampClamp
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
35293900112 BushingBushing
-
36390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
37414036300 GrommetGrommet
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40415079900 Tubing 10 mmTubing 10 mm
-
41705601020 Oil TankOil Tank
-
42705601019 Housing Oil HoseHousing Oil Hose
-
43705601155 Brake PedalBrake Pedal
-
44705202000 Bracket Brake PedalBracket Brake Pedal
-
45705600310 Copper WasherCopper Washer
-
46705600459 ClampClamp
-
47705600609 Banjo BoltBanjo Bolt
-
48705600792 Brake Pedal SpringBrake Pedal Spring
-
49705601274 Rear Master CylinderRear Master Cylinder
-
50705600859 RH Rear Caliper Ass'yRH Rear Caliper Ass'y
-
50a705601016 Pin SetPin Set
-
50b705601017 Bleeding ScrewBleeding Screw
-
50c705601018 SpringSpring
-
50d705601014 Brake Pad KitBrake Pad Kit
-
51705600861 RH Front Caliper Ass'yRH Front Caliper Ass'y
-
51a705601014 Brake Pad KitBrake Pad Kit
-
51b705601016 Pin SetPin Set
-
51c705601017 Bleeding ScrewBleeding Screw
-
51d705601018 SpringSpring
-
52705600862 LH Front Caliper Ass'yLH Front Caliper Ass'y
-
52a705601016 Pin SetPin Set
-
52b705601017 Bleeding ScrewBleeding Screw
-
52c705601018 SpringSpring
-
52d705601015 Brake Pad KitBrake Pad Kit
-
53705600865 Front Master CylinderFront Master Cylinder
-
53a705601013 Lever SetLever Set
-
53b507032477 Clamp And Screw KitClamp And Screw Kit
-
53c219800096 Cap SetCap Set
-
54705600958 Banjo BoltBanjo Bolt
-
55705600962 Front Hose ProtectorFront Hose Protector
-
56705600963 Rear Hose ProtectorRear Hose Protector
-
57705600964 Outlet Hose, Master CylinderOutlet Hose, Master Cylinder
-
58705600967 Brake Handle LineBrake Handle Line
-
59705600973 Inlet Hose, Master CylinderInlet Hose, Master Cylinder
-
60705600983 Front Hose BracketFront Hose Bracket
-
61705600994 SplitterSplitter
-
62705600999 Disc BrakeDisc Brake
-
64705601048 LH Hose BracketLH Hose Bracket
-
65705601049 RH Hose BracketRH Hose Bracket
-
66705601051 Bleeding ScrewBleeding Screw
-
67705601078 RH Brake LineRH Brake Line
-
68705601124 LH Brake LineLH Brake Line
-
69705601125 RH Brake LineRH Brake Line
-
70409902200 Tubing 25 mmTubing 25 mm
-
73705601251 Brake SwitchBrake Switch
