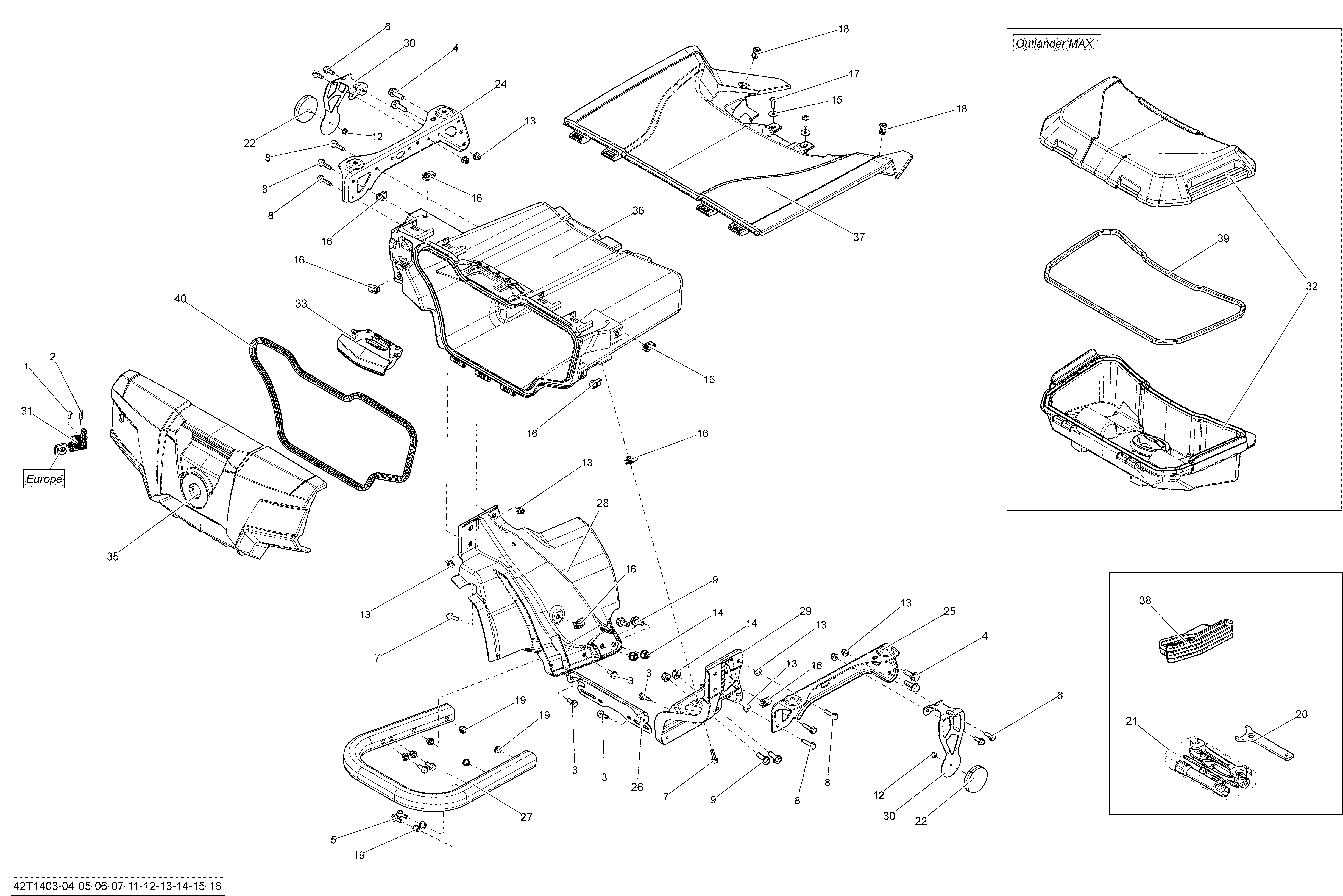

09- Rear Cargo Box для BRP Outlander 1000EFI XMR - 2014
-
№АртикулНазвание
-
1205951046 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
2206252044 Socket Set Screw M5 X 20. EuropeSocket Set Screw M5 X 20. Europe
-
3207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207661634 Hex. Flanged Screw M6 X 16. EuropeHex. Flanged Screw M6 X 16. Europe
-
6207661644 Hex. Flanged Screw M6 X 16. Except EuropeHex. Flanged Screw M6 X 16. Except Europe
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12233251414 Hex. Flanged Elastic Nut M5. Except EuropeHex. Flanged Elastic Nut M5. Except Europe
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
18293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
19293450274 InsertInsert
-
19293450274 Insert. EuropeInsert. Europe
-
20529000035 Adjustement WrenchAdjustement Wrench
-
21704700148 Tool KitTool Kit
-
22705002408 Reflector, Red. Except EuropeReflector, Red. Except Europe
-
24705004563 LH SupportLH Support
-
25705004564 RH SupportRH Support
-
26705004806 Plate SupportPlate Support
-
27715001564 Rear Bumper. Except EuropeRear Bumper. Except Europe
-
27715001566 Rear Bumper. EuropeRear Bumper. Europe
-
28705006997 LH Cargo SupportLH Cargo Support
-
29705006998 RH Cargo SupportRH Cargo Support
-
30705202576 Reflector Support. Except EuropeReflector Support. Except Europe
-
32708200255 Removable Box Ass'yRemovable Box Ass'y
-
33708200272 HandleHandle
-
35708300150 Rear Panel. Except EuropeRear Panel. Except Europe
-
35708300511 Rear Panel. EuropeRear Panel. Europe
-
36708300674 Rear Storage BoxRear Storage Box
-
37708300848 Rear Storage CoverRear Storage Cover
-
38710002270 Remote ControlRemote Control
-
39293250312 Neoprene SealNeoprene Seal
-
40293250275 Neoprene SealNeoprene Seal
