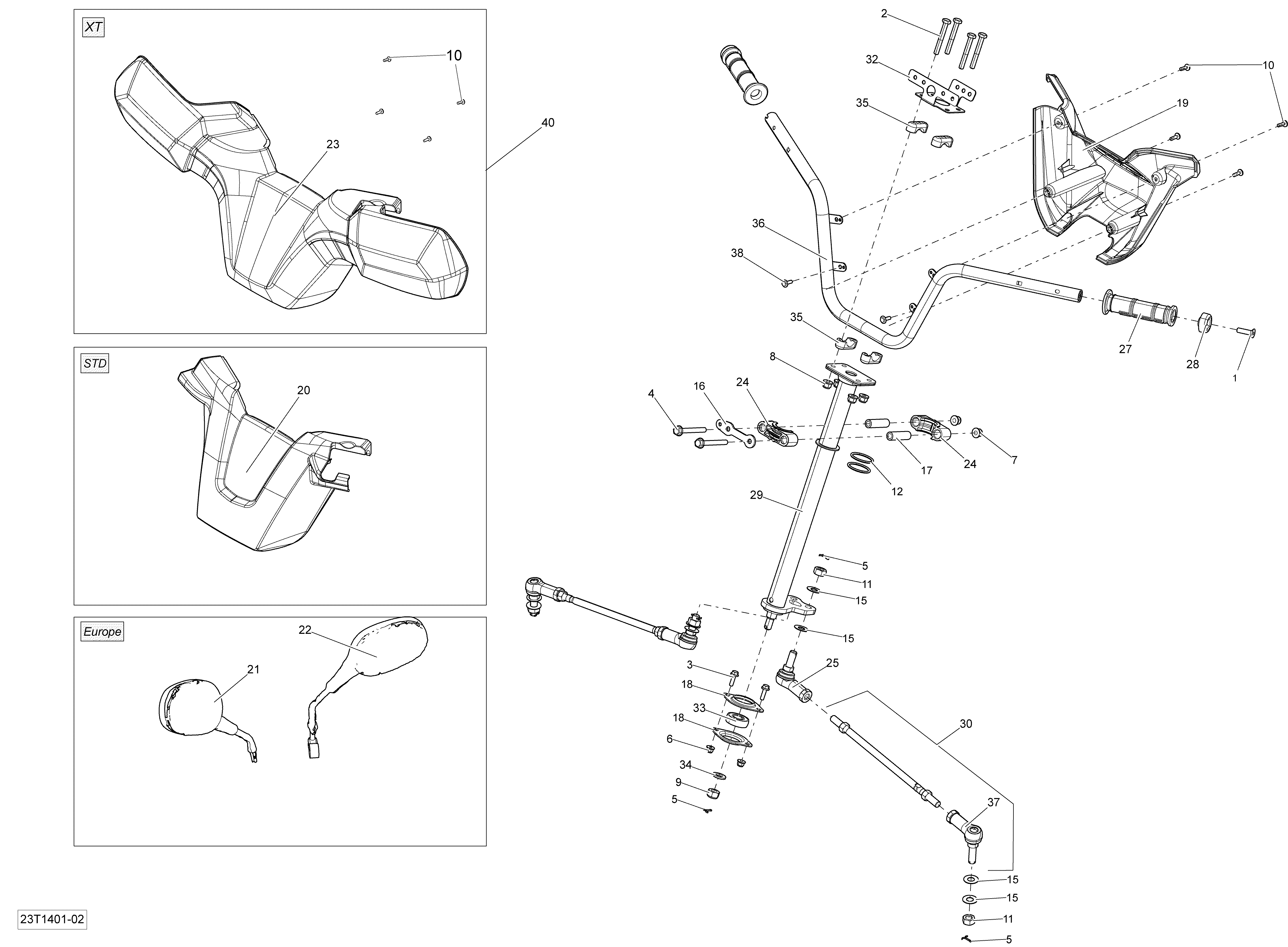

07- Steering для BRP Outlander 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1205883046 Socket Head Screw, M8Socket Head Screw, M8
-
2207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
3207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5211400013 Cotter PinCotter Pin
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
9250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
10250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
11250100099 Nut M12Nut M12
-
12293300068 O-RingO-Ring
-
15706200281 Hardened WasherHardened Washer
-
16709400053 Stopper PlateStopper Plate
-
17709400072 BushingBushing
-
18709400152 Thrust WasherThrust Washer
-
19709400313 Black Rear Steering CoverBlack Rear Steering Cover
-
20709400386 Black Front Steering Cover. Model-STDBlack Front Steering Cover. Model-STD
-
21709400406 LH Mirror. Model-EuropeLH Mirror. Model-Europe
-
22709400407 RH Mirror. Model-EuropeRH Mirror. Model-Europe
-
24709400471 Half BushingHalf Bushing
-
25709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
27709400493 Handle GripHandle Grip
-
28709400868 End PieceEnd Piece
-
29709401056 Main TubeMain Tube
-
30709401059 Tie Rod Ass'yTie Rod Ass'y
-
32709400586 Connector BracketConnector Bracket
-
33709400439 Ball BearingBall Bearing
-
34234021410 Flat Washer 12 mmFlat Washer 12 mm
-
35709400919 Steering SupportSteering Support
-
36709401237 SteeringSteering
-
37709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
38243141640 Hex. Flanged Plastite Screw M4.8 X 16Hex. Flanged Plastite Screw M4.8 X 16
-
40703100217 Handle Guard, XT. Model-XTHandle Guard, XT. Model-XT
