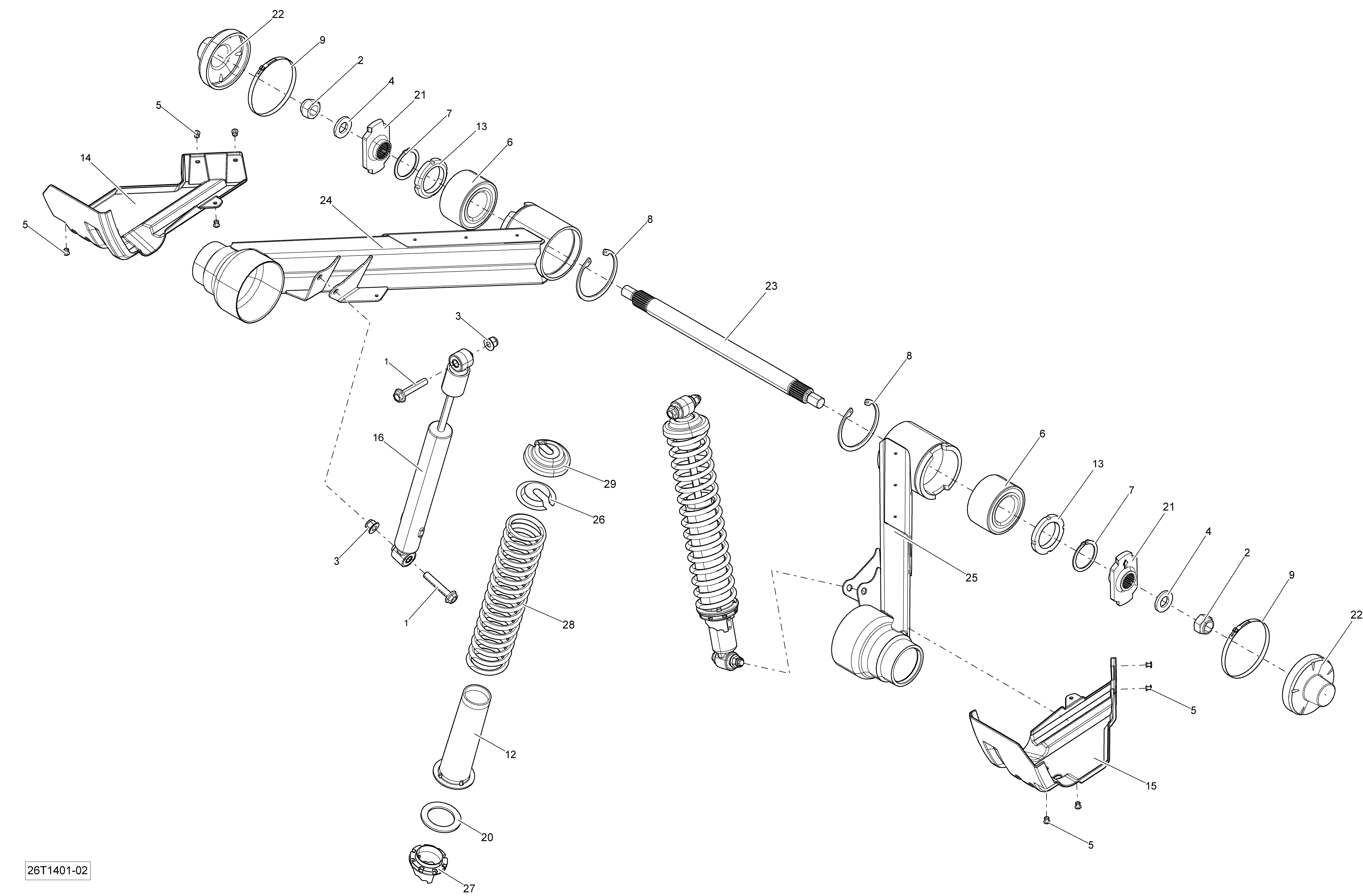

08- Rear Suspension для BRP Outlander 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
2232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
3233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4250200045 WasherWasher
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293350037 Ball BearingBall Bearing
-
7293370027 Circlip 45 mmCirclip 45 mm
-
8293370041 CirclipCirclip
-
9293650162 Oetiker ClampOetiker Clamp
-
12503139800 ProtectorProtector
-
13706000221 NutNut
-
14706000333 LH ProtectorLH Protector
-
15706000334 RH ProtectorRH Protector
-
16706000391 Rear ShockRear Shock
-
20706000533 Spring SeatSpring Seat
-
21706000548 LeverLever
-
22706000749 CoverCover
-
23706001077 Sway BarSway Bar
-
24706001185 LH Swing ArmLH Swing Arm
-
25706001186 RH Swing ArmRH Swing Arm
-
26706200785 CapCap
-
27706001033 Adjuster RingAdjuster Ring
-
28706000649 Paint SpringPaint Spring
-
29706200881 Spring StopperSpring Stopper
