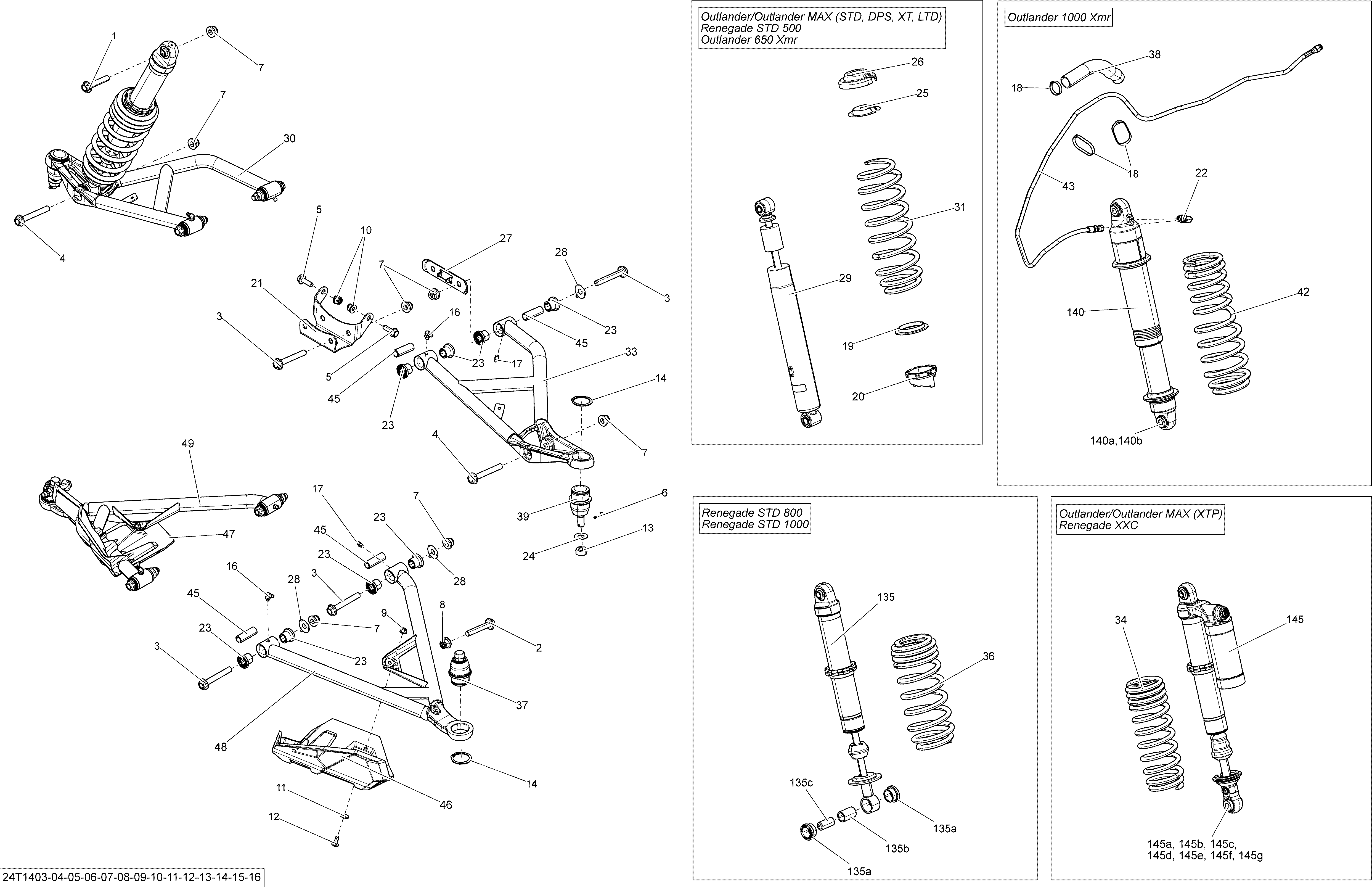

07- Front Suspension для BRP Renegade 1000 EFI STD, XXC - 2014
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat WasherFlat Washer
-
12250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
21705203247 Upper Front HolderUpper Front Holder
-
23703500875 Bushing Kit. Includes 45Bushing Kit. Includes 45
-
24250200086 Flat WasherFlat Washer
-
27706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
30706201797 Black RH Upper ArmBlack RH Upper Arm
-
33706201796 Black LH Upper ArmBlack LH Upper Arm
-
34706201258 Yellow Spring. Model XXCYellow Spring. Model XXC
-
36706201268 Yellow Spring. Model STDYellow Spring. Model STD
-
37706201393 Ball JointBall Joint
-
39706201394 Ball JointBall Joint
-
45703500875 Bushing Kit. Includes 23Bushing Kit. Includes 23
-
46706201829 LH Joint ProtectorLH Joint Protector
-
47706201830 RH Joint ProtectorRH Joint Protector
-
48706201874 Black LH Lower ArmBlack LH Lower Arm
-
49706201875 Black RH Lower ArmBlack RH Lower Arm
-
135706201267 Shock Absorber. Model STD, Includes 135a to 135cShock Absorber. Model STD, Includes 135a to 135c
-
135a706201584 Bushing. Model STDBushing. Model STD
-
135b706201585 Bushing Sleeve. Model STDBushing Sleeve. Model STD
-
135c706201586 Bushing Sleeve. Model STDBushing Sleeve. Model STD
-
145706201812 Shock Absorber. Model XXC, Includes 145a to 145gShock Absorber. Model XXC, Includes 145a to 145g
-
145a706201648 Bushing. Model XXCBushing. Model XXC
-
145b706201585 Bushing Sleeve. Model XXCBushing Sleeve. Model XXC
-
145c706201586 Bushing Sleeve. Model XXCBushing Sleeve. Model XXC
-
145d715900209 O-Ring Bushing. Model XXCO-Ring Bushing. Model XXC
-
145e715900210 Interior Bushing. Model XXCInterior Bushing. Model XXC
-
145f715900251 Spherical Bearing. Model XXCSpherical Bearing. Model XXC
-
145g715900252 Retaining Ring. Model XXCRetaining Ring. Model XXC
