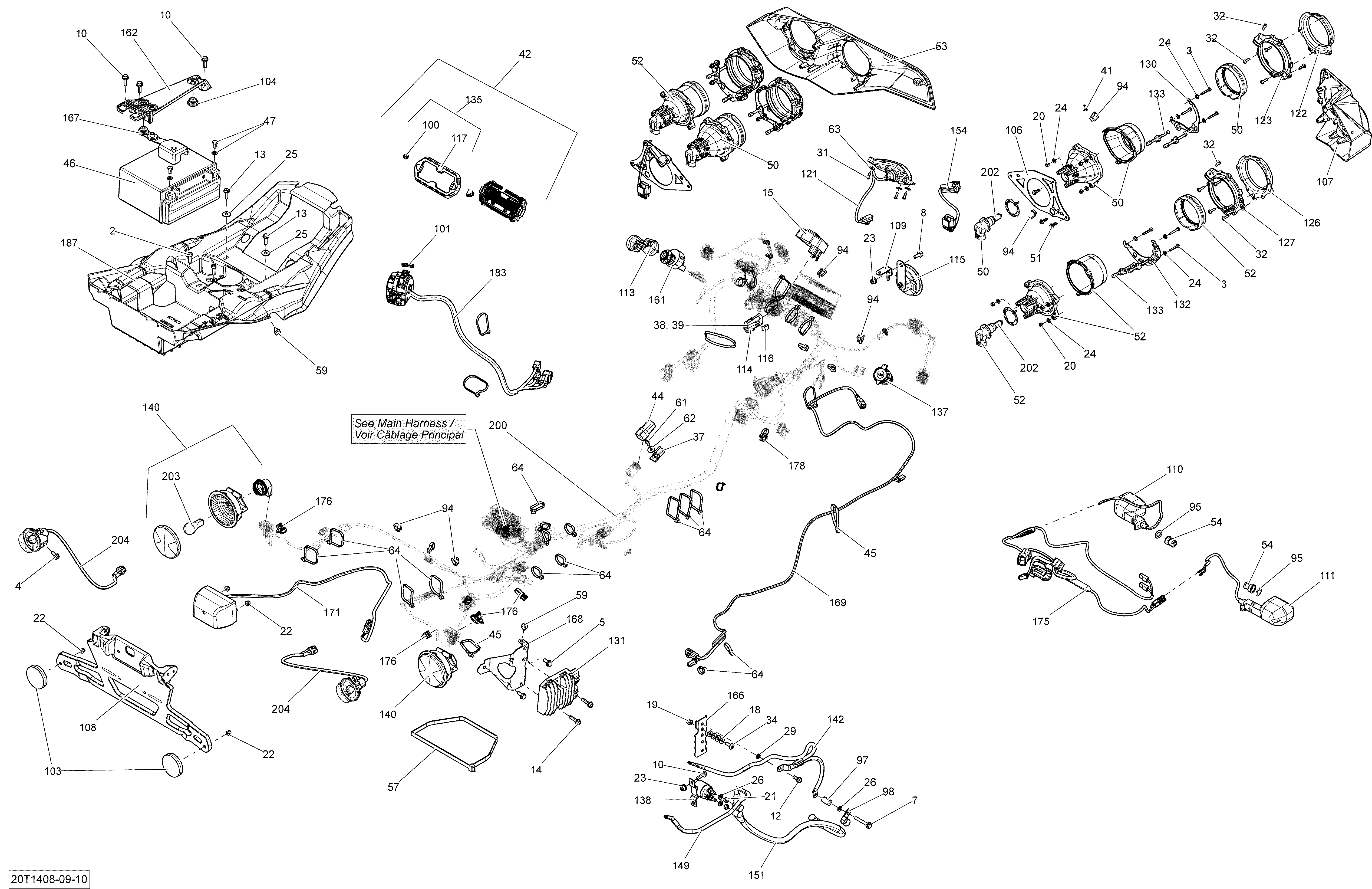

10- Electrical System для BRP Renegade 1000 EFI STD, XXC - 2014
-
№АртикулНазвание
-
2205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
3207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
4207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
7207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
14210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
15710003239 Flasher UnitFlasher Unit
-
18224061121 Flat WasherFlat Washer
-
19232361493 Domed Nut M6Domed Nut M6
-
20232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24234051410 Flat Washer M5Flat Washer M5
-
25234062670 Flat WasherFlat Washer
-
26234161601 Lock Washer Helical M6Lock Washer Helical M6
-
26234161601 Lock Washer Helical M6Lock Washer Helical M6
-
29234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
31241641040 Phillips Screw K40 X 10Phillips Screw K40 X 10
-
32250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
34250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
37270000141 ClipClip
-
38278000216 Wire SealWire Seal
-
39278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
42710003851 SpeedometerSpeedometer
-
44710003006 HousingHousing
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
47295500849 Battery Fastener KitBattery Fastener Kit
-
50710002524 Low Beam Ass'yLow Beam Ass'y
-
51241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
52710002525 High Beam Ass'yHigh Beam Ass'y
-
53705004508 LH Front FaciaLH Front Facia
-
54710001826 Cap GuardCap Guard
-
57293750041 Tie-rap 627 mmTie-rap 627 mm
-
59293830005 Rubber BumperRubber Bumper
-
61390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
62391301600 WasherWasher
-
63250200081 Flat WasherFlat Washer
-
64414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
94414227300 ClipClip
-
95503175800 WasherWasher
-
97517203200 SpacerSpacer
-
98518321570 Open ClampOpen Clamp
-
100704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
101704901835 DPS LabelDPS Label
-
103705002408 Reflector, RedReflector, Red
-
104705003666 Rubber GrommetRubber Grommet
-
106705004309 Painted Headlamp SupportPainted Headlamp Support
-
107705004509 RH Front FaciaRH Front Facia
-
108708300553 Plate SupportPlate Support
-
109709200284 SupportSupport
-
110710000546 FlasherFlasher
-
111710000547 FlasherFlasher
-
113710000817 Black-Electronic Key. EuropeBlack-Electronic Key. Europe
-
113710002183 Grey-Electronic Key. Except EuropeGrey-Electronic Key. Except Europe
-
114710000917 Connector Ass'yConnector Ass'y
-
115710000983 HornHorn
-
116710000992 ClipClip
-
117710001183 Trim Ring Ass'yTrim Ring Ass'y
-
121710001042 Day LightDay Light
-
122710001081 RH Low Front HousingRH Low Front Housing
-
122710001083 LH Low Front HousingLH Low Front Housing
-
123710001082 RH Low Rear HousingRH Low Rear Housing
-
123710001084 LH Low Rear HousingLH Low Rear Housing
-
126710001085 RH High Front HousingRH High Front Housing
-
126710001087 LH High Front HousingLH High Front Housing
-
127710001086 RH High Rear HousingRH High Rear Housing
-
127710001088 LH High Rear HousingLH High Rear Housing
-
130710001037 LH Low Light SupportLH Low Light Support
-
130710001094 RH Low Light SupportRH Low Light Support
-
131710001103 Voltage Regulator. STD Except EuropeVoltage Regulator. STD Except Europe
-
131710001191 Voltage Regulator. XXC Except EuropeVoltage Regulator. XXC Except Europe
-
131710001191 Voltage Regulator. EuropeVoltage Regulator. Europe
-
132710001036 LH High Light SupportLH High Light Support
-
132710001115 RH High Light SupportRH High Light Support
-
133710001147 Setting ScrewSetting Screw
-
135710001183 Trim Ring Ass'yTrim Ring Ass'y
-
137710001248 Outlet DCOutlet DC
-
138710001364 Starter RelayStarter Relay
-
140710001645 Tail LightTail Light
-
142710001747 Ground Cable Ass'yGround Cable Ass'y
-
149710001749 Positive CablePositive Cable
-
151710001750 Positive CablePositive Cable
-
154710001757 Harness Ass'yHarness Ass'y
-
161710002327 Ignition SwitchIgnition Switch
-
162710002404 Fixation PlateFixation Plate
-
166710002567 BracketBracket
-
167710002569 CapCap
-
168710002587 Rectifier SupportRectifier Support
-
169710002613 Brake HarnessBrake Harness
-
171710002721 Licence LightLicence Light
-
175710002804 Harness Ass'yHarness Ass'y
-
176710002896 Tie-Rap ClipTie-Rap Clip
-
183710003037 Multi-Function Handle. EuropeMulti-Function Handle. Europe
-
183710003062 Multi-Function Handle. XXC Except EuropeMulti-Function Handle. XXC Except Europe
-
183710003063 Multi-Fonction Handle. STD Except EuropeMulti-Fonction Handle. STD Except Europe
-
187710003325 Battery SupportBattery Support
-
200710003626 Harness Ass'yHarness Ass'y
-
202415129249 Halogen BulbHalogen Bulb
-
203520000758 BulbBulb
-
204710002964 FlasherFlasher
