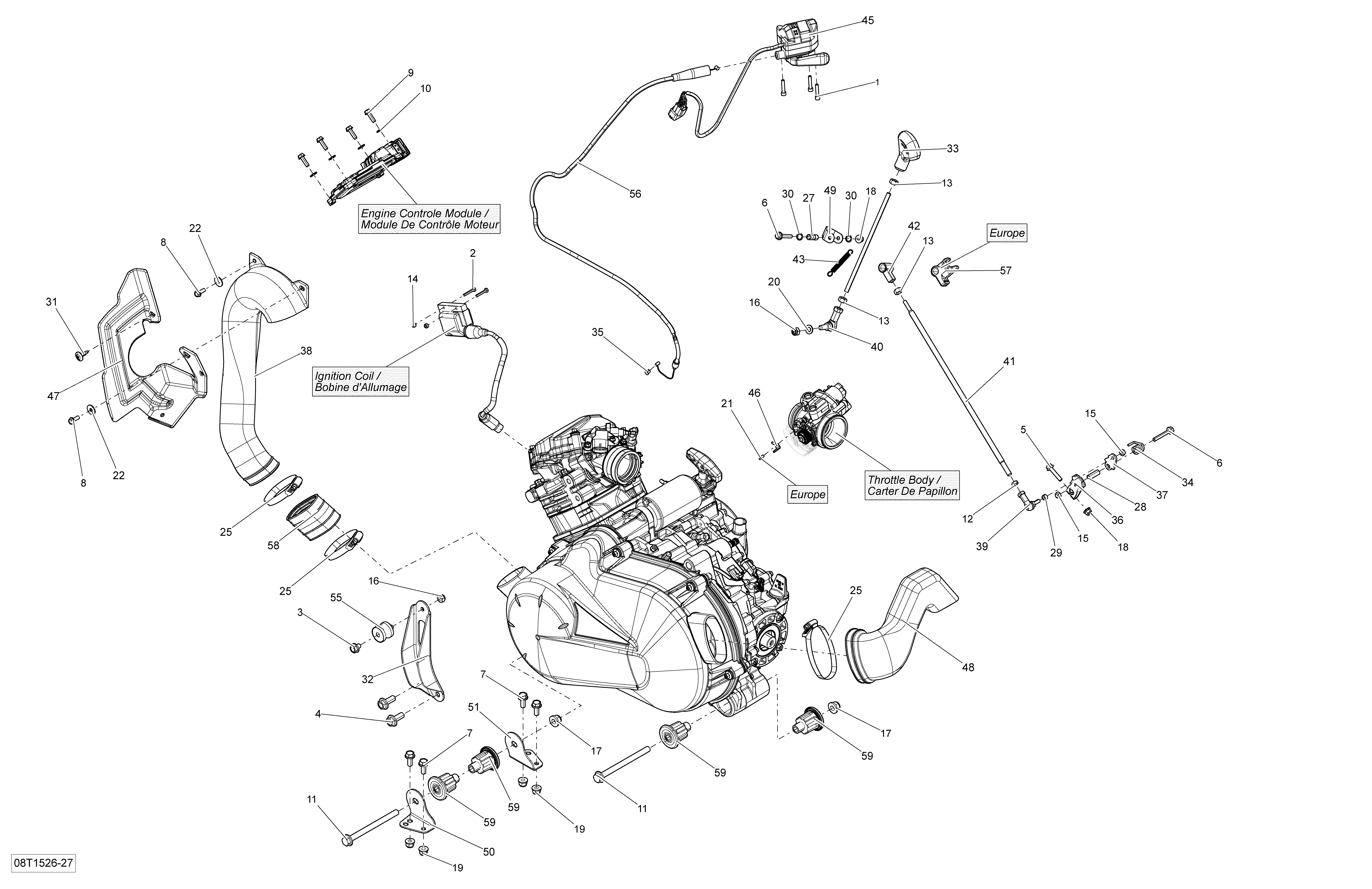

01- Engine _08T1526 для BRP Outlander 400 EFI, STD(International only) - 2015
-
№АртикулНазвание
-
1205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
2207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
3207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
4207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
5207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
7207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
8210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
10224061121 Flat WasherFlat Washer
-
11230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
12232066414 LH Hex. Nut M6LH Hex. Nut M6
-
13232081414 Hex. Nut M8Hex. Nut M8
-
14232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
17233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
22250200082 Flat WasherFlat Washer
-
25293650091 Norma ClampNorma Clamp
-
27293900075 BushingBushing
-
28293900079 BushingBushing
-
29293900104 BushingBushing
-
30414583300 O-RingO-Ring
-
31414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
32707000224 Upper Engine BracketUpper Engine Bracket
-
33707000284 Lever HandleLever Handle
-
34707000310 SpringSpring
-
35707000434 Cable GuideCable Guide
-
36707000503 LeverLever
-
37707000507 Pivot PlatePivot Plate
-
38707000540 Air IntakeAir Intake
-
39707000545 LH Ball JointLH Ball Joint
-
40707000546 RH Ball JointRH Ball Joint
-
41707000567 Threaded RodThreaded Rod
-
42707000568 Pivot. InternationalPivot. International
-
43707000569 SpringSpring
-
45707000595 Throttle HandleThrottle Handle
-
46707000573 Speed LimiterSpeed Limiter
-
47707000697 CVT Water DeflectorCVT Water Deflector
-
48707000718 Air OutletAir Outlet
-
49707000786 Lever ArmLever Arm
-
50707000802 Engine BracketEngine Bracket
-
51707000803 Engine BracketEngine Bracket
-
55707000949 Rubber IsolatorRubber Isolator
-
56707000974 Throttle CableThrottle Cable
-
57707000977 PivotPivot
-
58707001043 Flexible AdaptorFlexible Adaptor
-
59707001170 Anti Vibration BufferAnti Vibration Buffer
