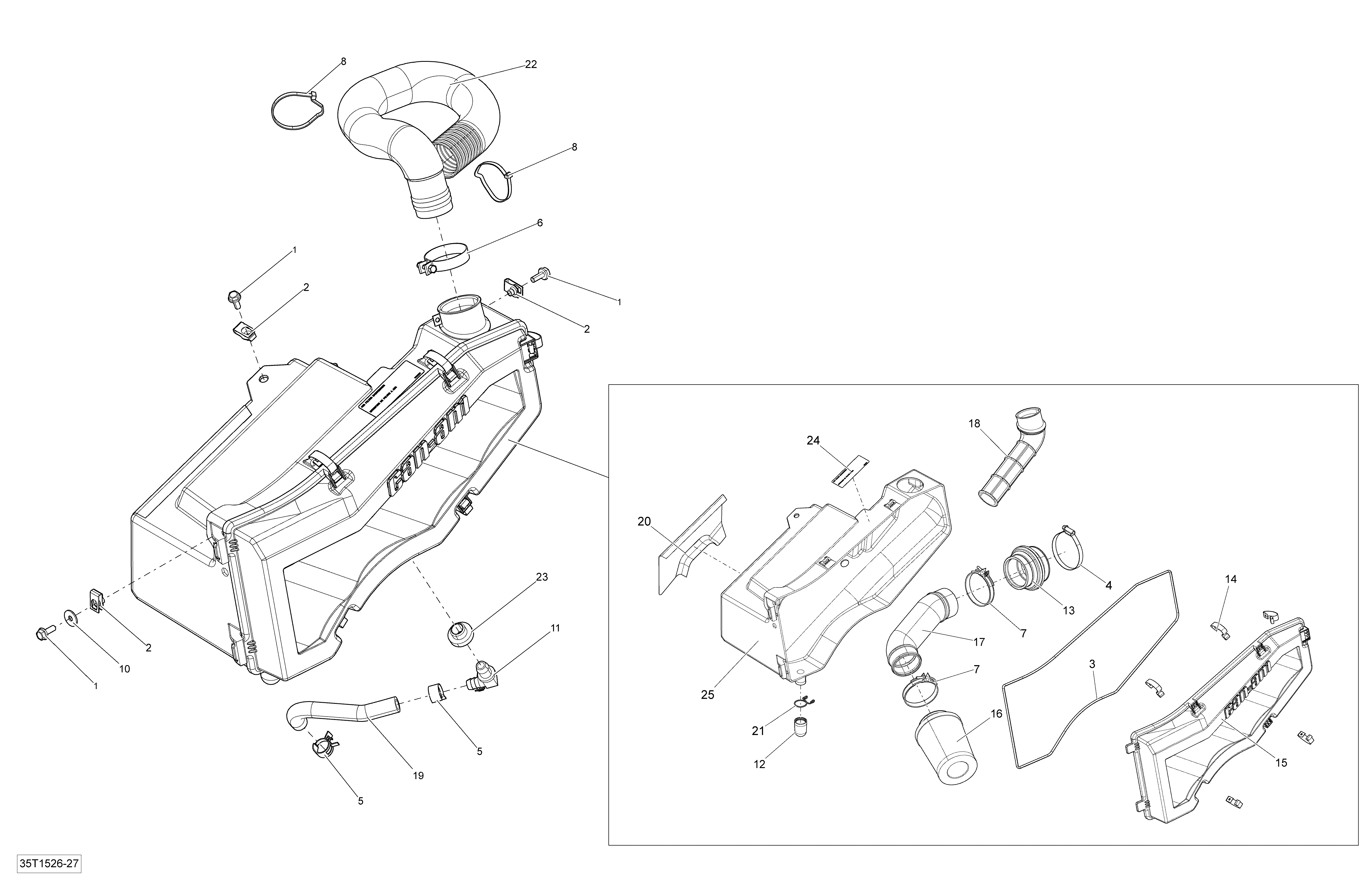

02- Air Intake Silencer _35T1526 для BRP Outlander 400 EFI, STD(International only) - 2015
-
№АртикулНазвание
-
1207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
2250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3293250178 GasketGasket
-
4293650091 Norma ClampNorma Clamp
-
5293650110 Norma ClampNorma Clamp
-
6293650160 Gemi ClampGemi Clamp
-
7293650175 ClampClamp
-
8293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
10250200082 Flat WasherFlat Washer
-
11414523600 Elbow FittingElbow Fitting
-
12707800080 Drain TubeDrain Tube
-
13707800177 Intake AdaptorIntake Adaptor
-
14707800249 Cover BracketCover Bracket
-
15707800263 Air Intake Silencer CoverAir Intake Silencer Cover
-
16707800264 Air FilterAir Filter
-
17707800265 Rigid AdaptorRigid Adaptor
-
18707800266 Front Intake AdaptorFront Intake Adaptor
-
19707800268 Vent HoseVent Hose
-
20707800276 Heat ProtectorHeat Protector
-
21707800278 Retainer ClipRetainer Clip
-
22707800287 Vent HoseVent Hose
-
23707800347 GrommetGrommet
-
24707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
25707800445 Air Intake Silencer BaseAir Intake Silencer Base
