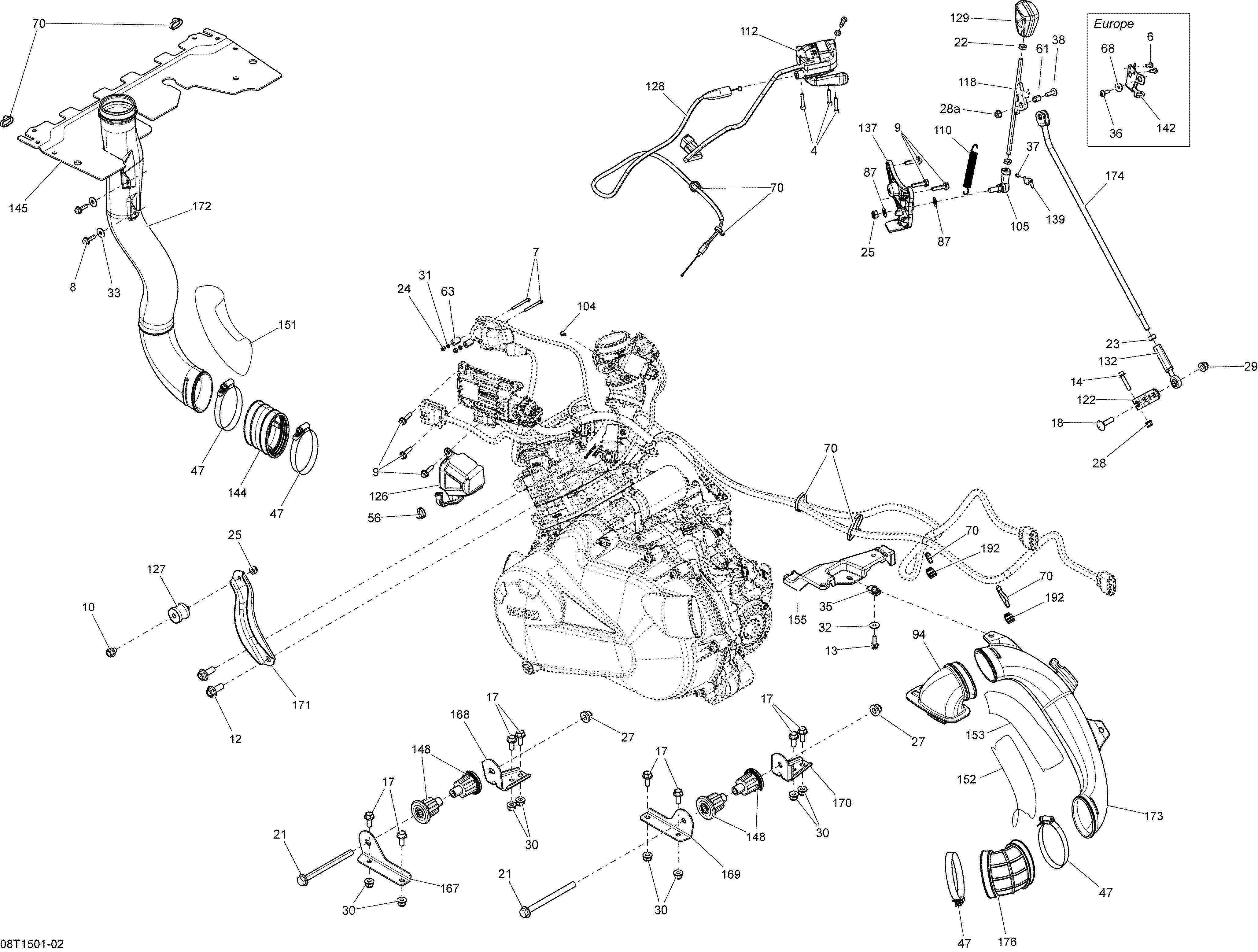

01- Engine And Engine Support _08T1501 для BRP Outlander L 450 EFI - 2015
-
№АртикулНазвание
-
4205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
6205951046 Socket Head Screw M5 X 10. Model- EuropeSocket Head Screw M5 X 10. Model- Europe
-
7207144044 Hex. Cap ScrewHex. Cap Screw
-
8207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
9207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
10207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
12207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
17207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
18207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
21230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
22232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
23250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
24232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
25232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
27233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28a233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
31234040600 Flat Washer 4 mmFlat Washer 4 mm
-
32234062410 Flat Washer 6 mmFlat Washer 6 mm
-
33234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
35250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
36250000146 Truss Head Torx Screw K50 X 16. Model- EuropeTruss Head Torx Screw K50 X 16. Model- Europe
-
37250000332 Torx Screw M4 X 8. Model- EuropeTorx Screw M4 X 8. Model- Europe
-
38250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
47293650091 Norma ClampNorma Clamp
-
56293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
61293900019 BushingBushing
-
63293900117 BushingBushing
-
68391301600 Washer. Model- EuropeWasher. Model- Europe
-
70414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
87506151252 WasherWasher
-
94706600024 Air OutletAir Outlet
-
104707000434 Cable GuideCable Guide
-
105707000546 RH Ball JointRH Ball Joint
-
110707000577 SpringSpring
-
112707000595 Throttle HandleThrottle Handle
-
118707000840 Shift Arm. Model- InterrnationalShift Arm. Model- Interrnational
-
118707000840 Shift Arm. Model-North AmericaShift Arm. Model-North America
-
118707001003 Shift Arm. Model- EuropeShift Arm. Model- Europe
-
122707000503 LeverLever
-
126707000945 CoverCover
-
127707000949 Rubber IsolatorRubber Isolator
-
128707000955 Throttle CableThrottle Cable
-
129707000965 Lever ButtonLever Button
-
132707000966 Ball Joint Ass'yBall Joint Ass'y
-
137707000971 Shift Arm BaseShift Arm Base
-
139707000573 Speed Limiter. Model- EuropeSpeed Limiter. Model- Europe
-
142707001042 Fixing Plate. Model- EuropeFixing Plate. Model- Europe
-
144707001467 Flexible AdaptorFlexible Adaptor
-
145707001124 Upper Water DeflectorUpper Water Deflector
-
148707001169 DamperDamper
-
151707001638 Heat ShieldHeat Shield
-
152707001641 Heat ShieldHeat Shield
-
153707001639 Heat ShieldHeat Shield
-
155707001262 Air Outlet SupportAir Outlet Support
-
167707001407 LH Front Engine BracketLH Front Engine Bracket
-
168707001408 RH Front Engine BracketRH Front Engine Bracket
-
169707001409 LH Rear Engine BracketLH Rear Engine Bracket
-
170707001410 RH Rear Engine BracketRH Rear Engine Bracket
-
171707001411 Upper Engine BracketUpper Engine Bracket
-
172707001412 CVT Air InletCVT Air Inlet
-
173707001413 CVT Air OutletCVT Air Outlet
-
174707001414 Shifter RodShifter Rod
-
176707001425 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
192710002896 Tie-Rap ClipTie-Rap Clip
