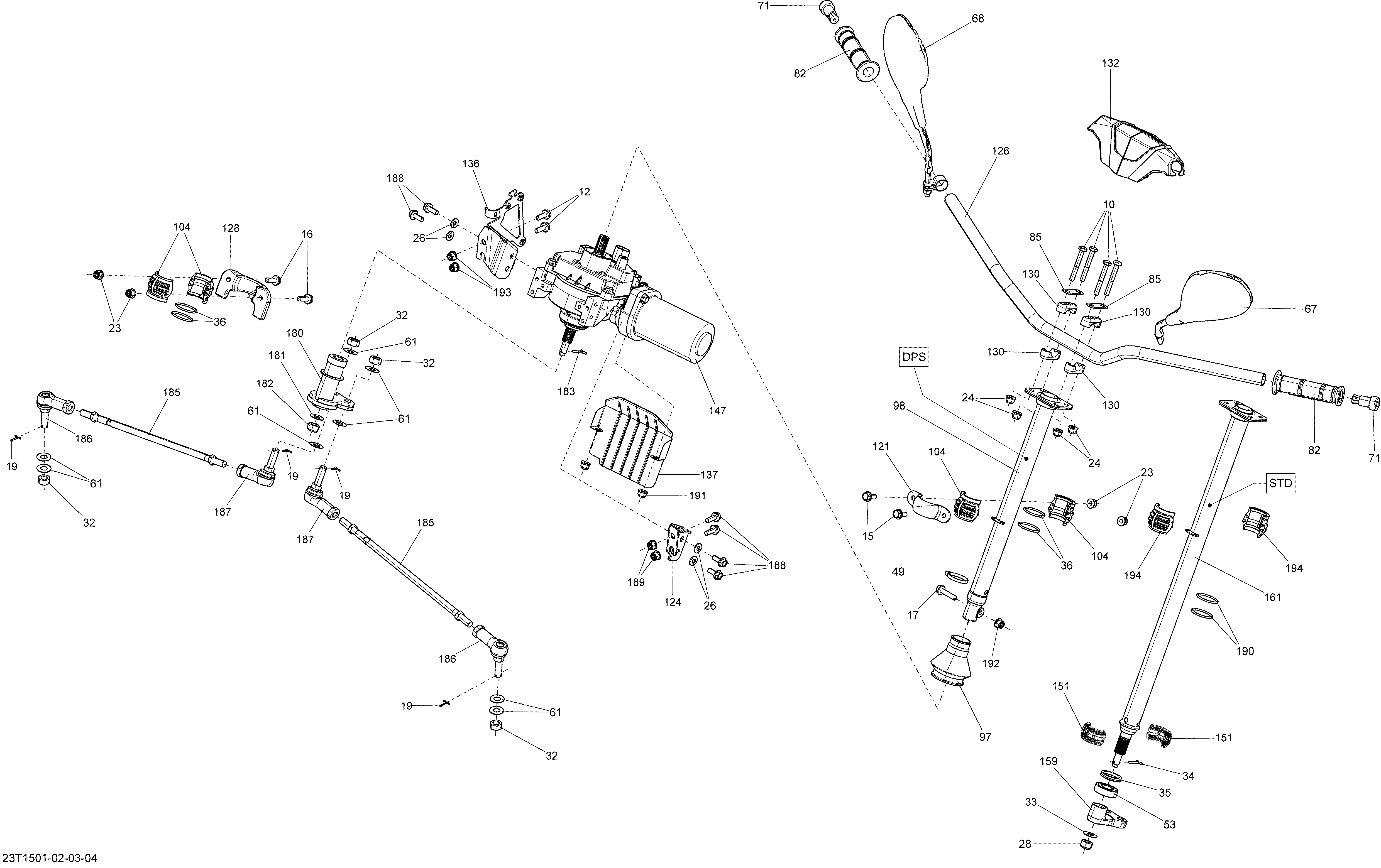

07- Steering _23T1501 для BRP Outlander L 450 EFI - 2015
-
№АртикулНазвание
-
10207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
15207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
16207682534 Hex. Flanged ScrewHex. Flanged Screw
-
17207683544 Hex. Flanged Screw M8 X 35. Package-DPSHex. Flanged Screw M8 X 35. Package-DPS
-
19211400013 Cotter PinCotter Pin
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
26234281474 Conical Spring Washer M8. Package-DPSConical Spring Washer M8. Package-DPS
-
28250000047 Hex. Flanged Elastic Nut M12. Package-STDHex. Flanged Elastic Nut M12. Package-STD
-
32250100099 Nut M12Nut M12
-
33250200086 Flat Washer. Package-STDFlat Washer. Package-STD
-
34250400034 Cotter Pin. Package-STDCotter Pin. Package-STD
-
35293250177 Seal. Package-STDSeal. Package-STD
-
36293300068 O-Ring. Package-DPSO-Ring. Package-DPS
-
49414115200 Tie-Rap 180 mm. Package-DPSTie-Rap 180 mm. Package-DPS
-
53503190396 Ball Bearing. Package-STDBall Bearing. Package-STD
-
61250200086 Flat WasherFlat Washer
-
67709400406 LH Mirror. Model-EuropeLH Mirror. Model-Europe
-
68709400407 RH Mirror. Model-EuropeRH Mirror. Model-Europe
-
71709400449 End PieceEnd Piece
-
82709400493 Handle GripHandle Grip
-
85709400509 StiffnerStiffner
-
97709400674 Bellows. Package-DPSBellows. Package-DPS
-
98709400703 Noir Upper Main Tube. Package-DPSNoir Upper Main Tube. Package-DPS
-
104709400783 Spherical Half Bushing. Package-DPSSpherical Half Bushing. Package-DPS
-
121709400827 Upper Column AttachmentUpper Column Attachment
-
124709400848 Power Steering Module Bracket. Package-DPSPower Steering Module Bracket. Package-DPS
-
126709401240 Black Handle BarBlack Handle Bar
-
128709401428 Column AttachmentColumn Attachment
-
130709400919 Steering SupportSteering Support
-
132709400939 Cover. Package-STD, DPSCover. Package-STD, DPS
-
136709400994 RH Steering BracketRH Steering Bracket
-
137709401005 Heat Deflector. Package-DPSHeat Deflector. Package-DPS
-
147709401182 Power Steering. Package-DPSPower Steering. Package-DPS
-
151709401370 Spherical Half Bushing. Package-STDSpherical Half Bushing. Package-STD
-
159709401542 Pitman Arm. Package-STDPitman Arm. Package-STD
-
161709401545 Black Upper Main Tube. Package-STDBlack Upper Main Tube. Package-STD
-
180703500785 Pitman Kit. Package-DPS, Includes 180 to 183Pitman Kit. Package-DPS, Includes 180 to 183
-
181250200086 Flat Washer. Package-DPSFlat Washer. Package-DPS
-
182250000047 Hex. Flanged Elastic Nut M12. Package-DPSHex. Flanged Elastic Nut M12. Package-DPS
-
183250400034 Cotter Pin. Package-DPSCotter Pin. Package-DPS
-
185703500783 Tie-Rod Ass'y. Includes 185 to 187Tie-Rod Ass'y. Includes 185 to 187
-
186709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
187709400490 Ball JointBall Joint
-
188207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package-DPSHex. Flanged Screw M8 X 20, Scotch Grip. Package-DPS
-
189233281414 Hex. Flanged Elastic Nut M8. Package-DPSHex. Flanged Elastic Nut M8. Package-DPS
-
190293300068 O-Ring. Package-STDO-Ring. Package-STD
-
191233281414 Hex. Flanged Elastic Nut M8. Package-DPSHex. Flanged Elastic Nut M8. Package-DPS
-
192233281414 Hex. Flanged Elastic Nut M8. Package-DPSHex. Flanged Elastic Nut M8. Package-DPS
-
193233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
194709400783 Spherical Half Bushing. Package-STDSpherical Half Bushing. Package-STD
