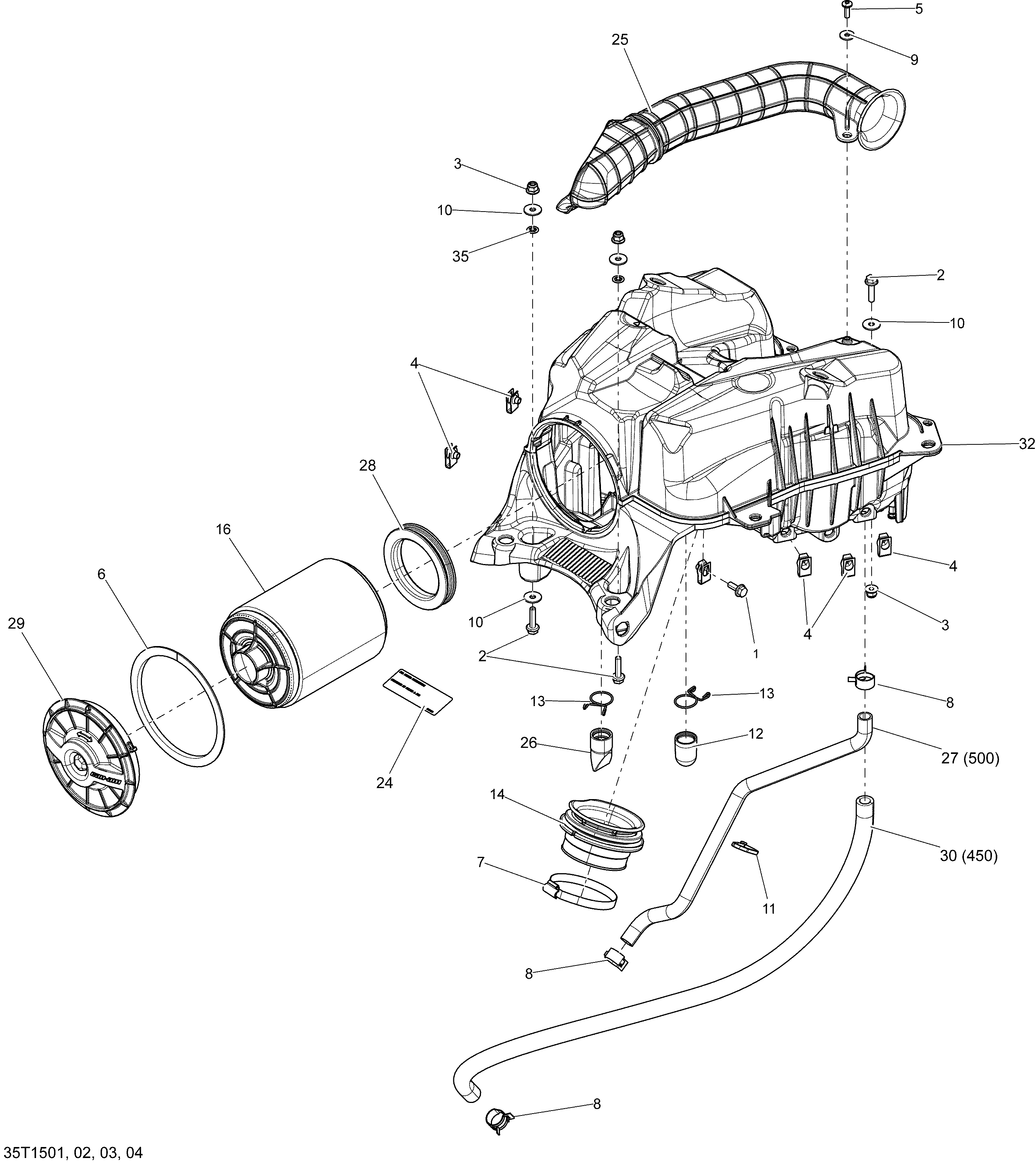

02- Air Intake _35T1503 для BRP Outlander L 500 EFI - 2015
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
6293300175 GasketGasket
-
7293650091 Norma ClampNorma Clamp
-
8293650110 Norma ClampNorma Clamp
-
9391301600 WasherWasher
-
10250200082 Flat WasherFlat Washer
-
10250200082 Flat WasherFlat Washer
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12707800080 Drain TubeDrain Tube
-
13707800278 Retainer ClipRetainer Clip
-
14707800333 Intake AdaptorIntake Adaptor
-
16707800371 Air FilterAir Filter
-
24707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
25707800375 Air Intake HoseAir Intake Hose
-
26707800404 Drain TubeDrain Tube
-
27707800453 Vent HoseVent Hose
-
28707800470 Air Filter AdaptorAir Filter Adaptor
-
29707800518 Intake Silencer CapIntake Silencer Cap
-
32707800599 Welded Air BoxWelded Air Box
-
35732610072 Push NutPush Nut
