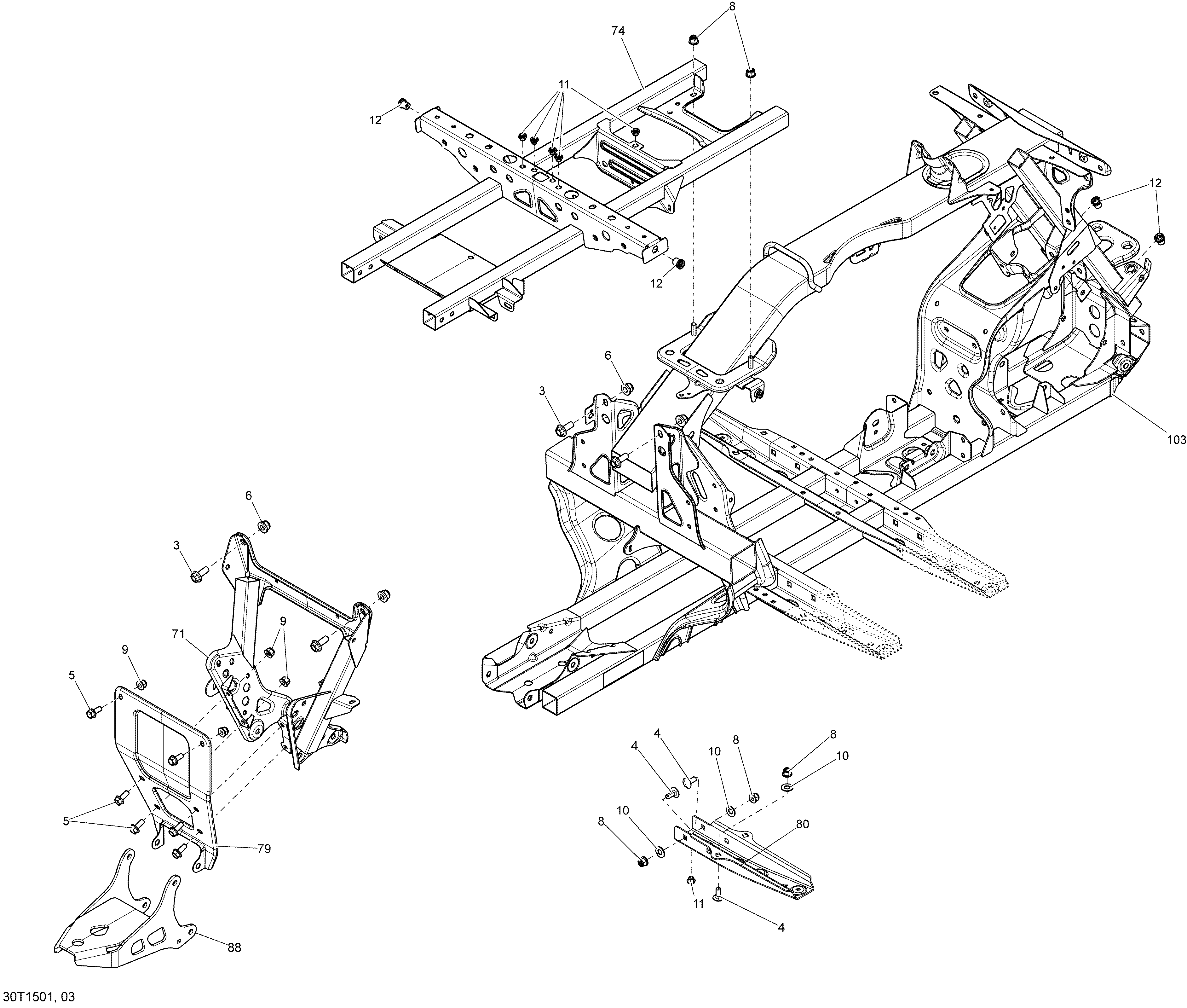

09- Frame _30T1503 для BRP Outlander L 500 EFI - 2015
-
№АртикулНазвание
-
3207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
4207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
5207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
6233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11293450232 InsertInsert
-
12293450307 InsertInsert
-
71705203387 Black Rear SupportBlack Rear Support
-
74705203362 Black Frame ExtensionBlack Frame Extension
-
79705203541 Rear SupportRear Support
-
80705203816 Foot Rest SupportFoot Rest Support
-
88715001925 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
103705204116 Black FrameBlack Frame
