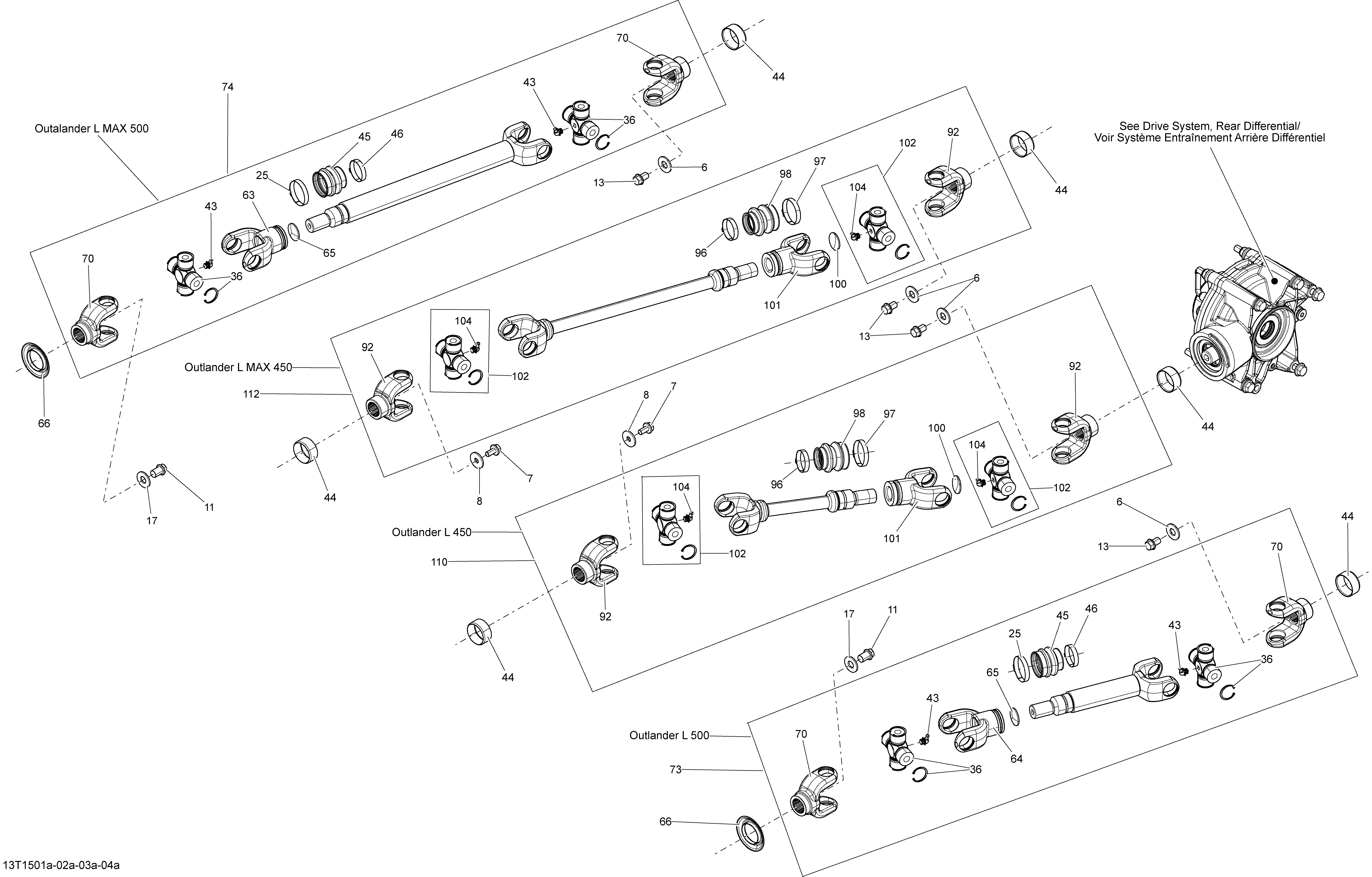

08- Drive System, Rear Propeller Shaft_13T1502a для BRP Outlander L MAX 450 EFI - 2015
-
№АртикулНазвание
-
6250200014 Flat Washer M10Flat Washer M10
-
7207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
8211200041 WasherWasher
-
11250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
13250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
17250200102 Flat Washer M12Flat Washer M12
-
44705400036 Wear RingWear Ring
-
92715900294 Fixe YokeFixe Yoke
-
96509000045 Oetiker Gear ClampOetiker Gear Clamp
-
97293650138 Oetiker Gear ClampOetiker Gear Clamp
-
98715900118 Rubber BootRubber Boot
-
100715900187 CoverCover
-
101715900106 Spline YokeSpline Yoke
-
102703500846 Universal Joint Ass'yUniversal Joint Ass'y
-
104715900295 Grease FittingGrease Fitting
-
112705501999 Rear Propeller Shaft Ass'yRear Propeller Shaft Ass'y
