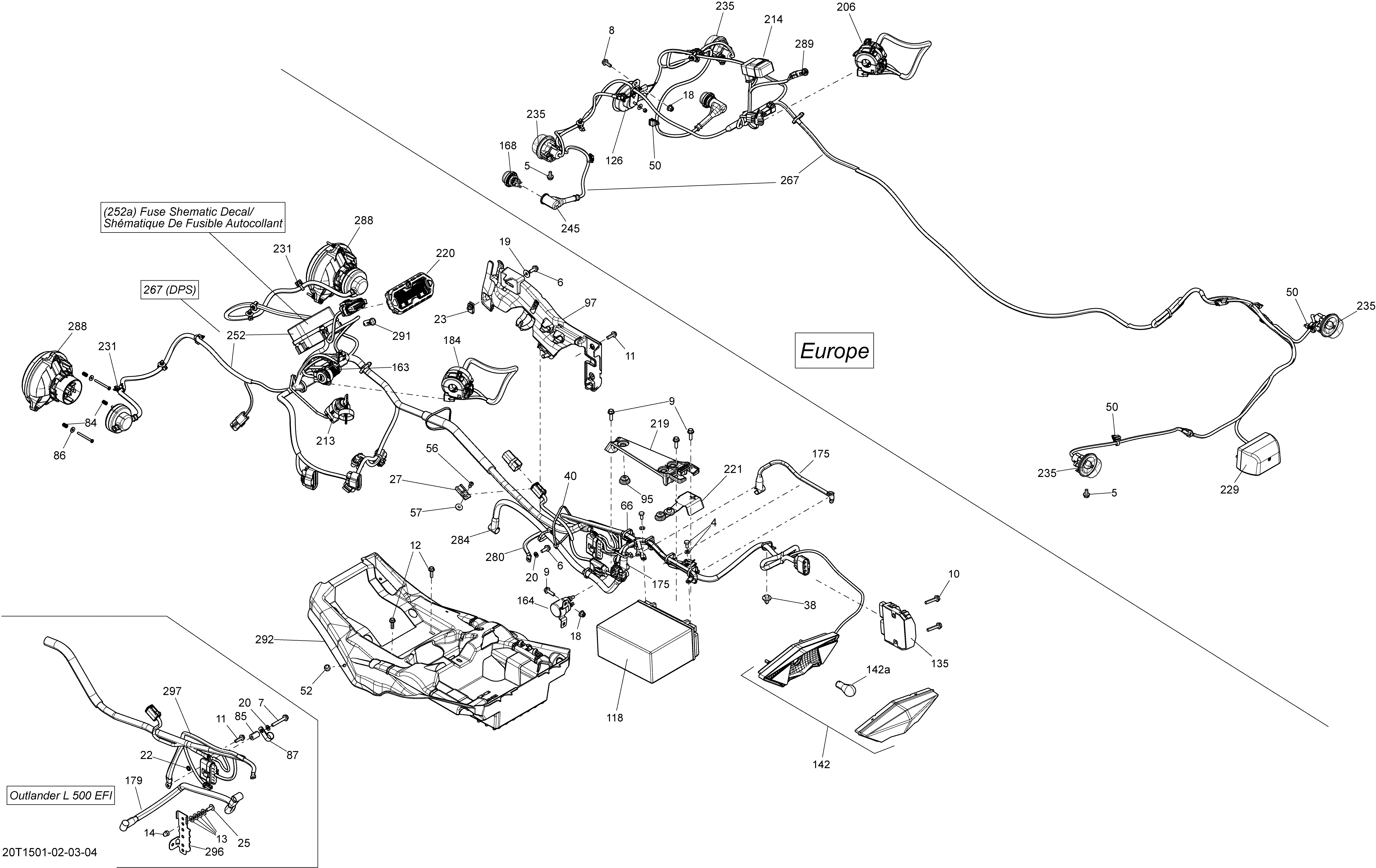

10- Electrical System _20T1502 для BRP Outlander L MAX 450 EFI - 2015
-
№АртикулНазвание
-
4250000282 Battery Bolt KitBattery Bolt Kit
-
5207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Model-EuropeHex. Flanged Screw M6 X 12, Scotch Grip. Model-Europe
-
6207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16. Model-EuropeHex. Flanged Screw M6 X 16. Model-Europe
-
9207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
11210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19234062410 Flat Washer 6 mmFlat Washer 6 mm
-
20234161601 Lock Washer Helical M6Lock Washer Helical M6
-
22234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
23250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
27270000141 ClipClip
-
38293730040 Mount DartMount Dart
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
50293750058 Locking Tie Rap. Model-EuropeLocking Tie Rap. Model-Europe
-
52293830005 Rubber BumperRubber Bumper
-
56390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
57391301600 WasherWasher
-
66414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
84517168600 SpringSpring
-
86517225900 Flat WasherFlat Washer
-
95705003666 Rubber GrommetRubber Grommet
-
97707001280 Cable BracketCable Bracket
-
118410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
126710000983 Horn. Model-EuropeHorn. Model-Europe
-
135515177325 Voltage Regulator. Package-DPS, Model-EuropeVoltage Regulator. Package-DPS, Model-Europe
-
135710001103 Voltage Regulator. Package-STDVoltage Regulator. Package-STD
-
142710001203 Tail Light Housing Ass'yTail Light Housing Ass'y
-
163710001248 Outlet DCOutlet DC
-
164710001364 Starter RelayStarter Relay
-
168710001726 Day Light. Model-EuropeDay Light. Model-Europe
-
175710001749 Positive CablePositive Cable
-
184710003062 Multi-Function Handle. Package-DPSMulti-Function Handle. Package-DPS
-
184710003063 Multi-Fonction Handle. Package-STDMulti-Fonction Handle. Package-STD
-
206710003037 Multi-Function Handle. Model-EuropeMulti-Function Handle. Model-Europe
-
213710002323 Ignition Switch With KeyIgnition Switch With Key
-
214710003239 Flasher Unit. Model-EuropeFlasher Unit. Model-Europe
-
219710002404 Fixation PlateFixation Plate
-
220710003924 Multifunction SpeedometerMultifunction Speedometer
-
221710002569 CapCap
-
229710002721 Licence Light. Model-EuropeLicence Light. Model-Europe
-
231710002896 Tie-Rap ClipTie-Rap Clip
-
235710002964 Flasher. Model-EuropeFlasher. Model-Europe
-
245710003269 Cap ProtectorCap Protector
-
252710003353 Wiring Harness Assembly. Package-STDWiring Harness Assembly. Package-STD
-
267710003560 Wiring Harness Assembly. Package-DPSWiring Harness Assembly. Package-DPS
-
267710003561 Wiring Harness Assembly. Model-EuropeWiring Harness Assembly. Model-Europe
-
280710003580 Ground CableGround Cable
-
284710003798 Positive CablePositive Cable
-
288710003900 Low BeamLow Beam
-
288a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
289710003909 Pilot Lamp. Model-EuropePilot Lamp. Model-Europe
-
291710003910 Pilot Lamp CapPilot Lamp Cap
-
292710003990 Battery TrayBattery Tray
-
142a520000758 BulbBulb
-
252a710003976 Fuse Shematic DecalFuse Shematic Decal
