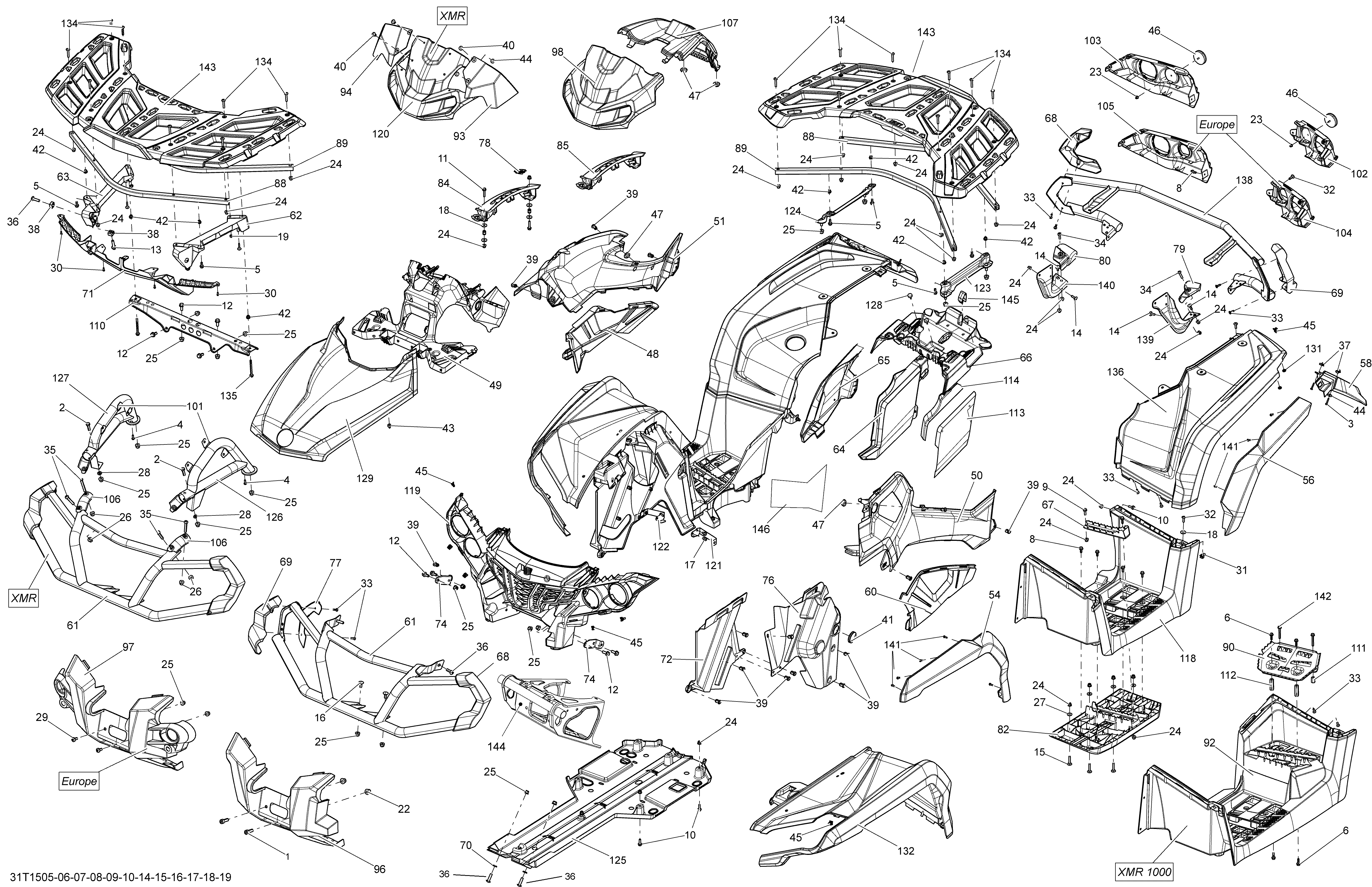

09- Body And Accessories _31T1514 для BRP Outlander MAX 500 EFI - 2015
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
4250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
5207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
14207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
33250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
34250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 Edge ClipEdge Clip
-
46705002408 Red ReflectorRed Reflector
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support KitDash Support Kit
-
50705003446 Yellow LH Lateral Panel. Model-YellowYellow LH Lateral Panel. Model-Yellow
-
50705006045 White LH Lateral Panel. Model-WhiteWhite LH Lateral Panel. Model-White
-
50705007530 Quarry Gray LH Lateral Panel. Model-Light GreyQuarry Gray LH Lateral Panel. Model-Light Grey
-
51705009019 Yellow RH Lateral Panel. Model-YellowYellow RH Lateral Panel. Model-Yellow
-
51705009116 Quarry Gray RH Lateral Panel. Model-Light GreyQuarry Gray RH Lateral Panel. Model-Light Grey
-
51705009119 White RH Lateral Panel. Model-WhiteWhite RH Lateral Panel. Model-White
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705005018 Front Bumper. Model-XTFront Bumper. Model-XT
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
64715001897 LH Extension PanelLH Extension Panel
-
65705004348 RH Extension PanelRH Extension Panel
-
66705007948 Seat HolderSeat Holder
-
68705004409 Cap (Front LH) (Rear RH). Model-XTCap (Front LH) (Rear RH). Model-XT
-
69705004410 Cap (Front RH) (Rear LH). Model-XTCap (Front RH) (Rear LH). Model-XT
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket Cover. Model-XTBracket Cover. Model-XT
-
78705005003 Shiftgate Trim. EuropeShiftgate Trim. Europe
-
79705005094 LH BracketLH Bracket
-
80705005095 RH BracketRH Bracket
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005258 IndicatorIndicator
-
85705005259 IndicatorIndicator
-
88705005469 TubeTube
-
89705005470 TubeTube
-
96705006299 Front Guard PlateFront Guard Plate
-
97705006300 Front Guard PlateFront Guard Plate
-
98705006321 Gauge Support. Model-DPS, XTGauge Support. Model-DPS, XT
-
102705006643 LH Rear FaciaLH Rear Facia
-
103705006650 RH Rear FaciaRH Rear Facia
-
104705006651 LH Rear FaciaLH Rear Facia
-
105705006652 RH Rear FaciaRH Rear Facia
-
107715001765 Dash Kit. EuropeDash Kit. Europe
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
113705006870 Heat ShieldHeat Shield
-
114705006871 Heat ShieldHeat Shield
-
118705003525 LH Footrest, MaxLH Footrest, Max
-
118705003521 RH Footrest, Max. EuropeRH Footrest, Max. Europe
-
119705007041 Front Facia. EuropeFront Facia. Europe
-
123705007277 LH SupportLH Support
-
124705007278 RH SupportRH Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
128708000759 Rubber StopperRubber Stopper
-
129715001541 Yellow Hood Kit. Model-Yellow North AmericaYellow Hood Kit. Model-Yellow North America
-
129715001845 White Hood Kit. Model-White North AmericaWhite Hood Kit. Model-White North America
-
129715002237 Grey Hood Kit. Model-Light Grey North AmericaGrey Hood Kit. Model-Light Grey North America
-
131732610072 Push NutPush Nut
-
132715002248 Yellow LH Front Fender Kit. Model-Yellow North AmericaYellow LH Front Fender Kit. Model-Yellow North America
-
132715002257 White LH Front Fender Kit. Model-White North AmericaWhite LH Front Fender Kit. Model-White North America
-
132715002262 Grey LH Front Fender Kit. Model-Light Grey North AmericaGrey LH Front Fender Kit. Model-Light Grey North America
-
132715001761 White RH Front Fender Kit. Model-White North AmericaWhite RH Front Fender Kit. Model-White North America
-
132715001791 Yellow RH Front Fender Kit. Model-Yellow North AmericaYellow RH Front Fender Kit. Model-Yellow North America
-
132715002267 Grey RH Front Fender Kit. Model-Light Grey North AmericaGrey RH Front Fender Kit. Model-Light Grey North America
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136715001793 Yellow LH Rear Fender Kit. Model-Yellow North AmericaYellow LH Rear Fender Kit. Model-Yellow North America
-
136715001808 White LH Rear Fender Kit. Model-White North AmericaWhite LH Rear Fender Kit. Model-White North America
-
136715002290 Grey LH Rear Fender Kit. Model-Light Grey North AmericaGrey LH Rear Fender Kit. Model-Light Grey North America
-
136715001820 Yellow RH Rear Fender Kit. Model-Yellow North AmericaYellow RH Rear Fender Kit. Model-Yellow North America
-
136715001839 White RH Rear Fender Kit. Model-White North AmericaWhite RH Rear Fender Kit. Model-White North America
-
136715002232 Grey RH Rear Fender Kit. Model-Light Grey North AmericaGrey RH Rear Fender Kit. Model-Light Grey North America
-
138705005019 Black Bumper. Model-XTBlack Bumper. Model-XT
-
139705008164 LH Rear Bracket. Model-XTLH Rear Bracket. Model-XT
-
140705008165 RH Rear Bracket. Model-XTRH Rear Bracket. Model-XT
-
143715001852 Rack Kit. North AmericaRack Kit. North America
-
143715002784 Rack Kit. Europe, Int'lRack Kit. Europe, Int'l
-
144705009253 Black Front Bumper SupportBlack Front Bumper Support
