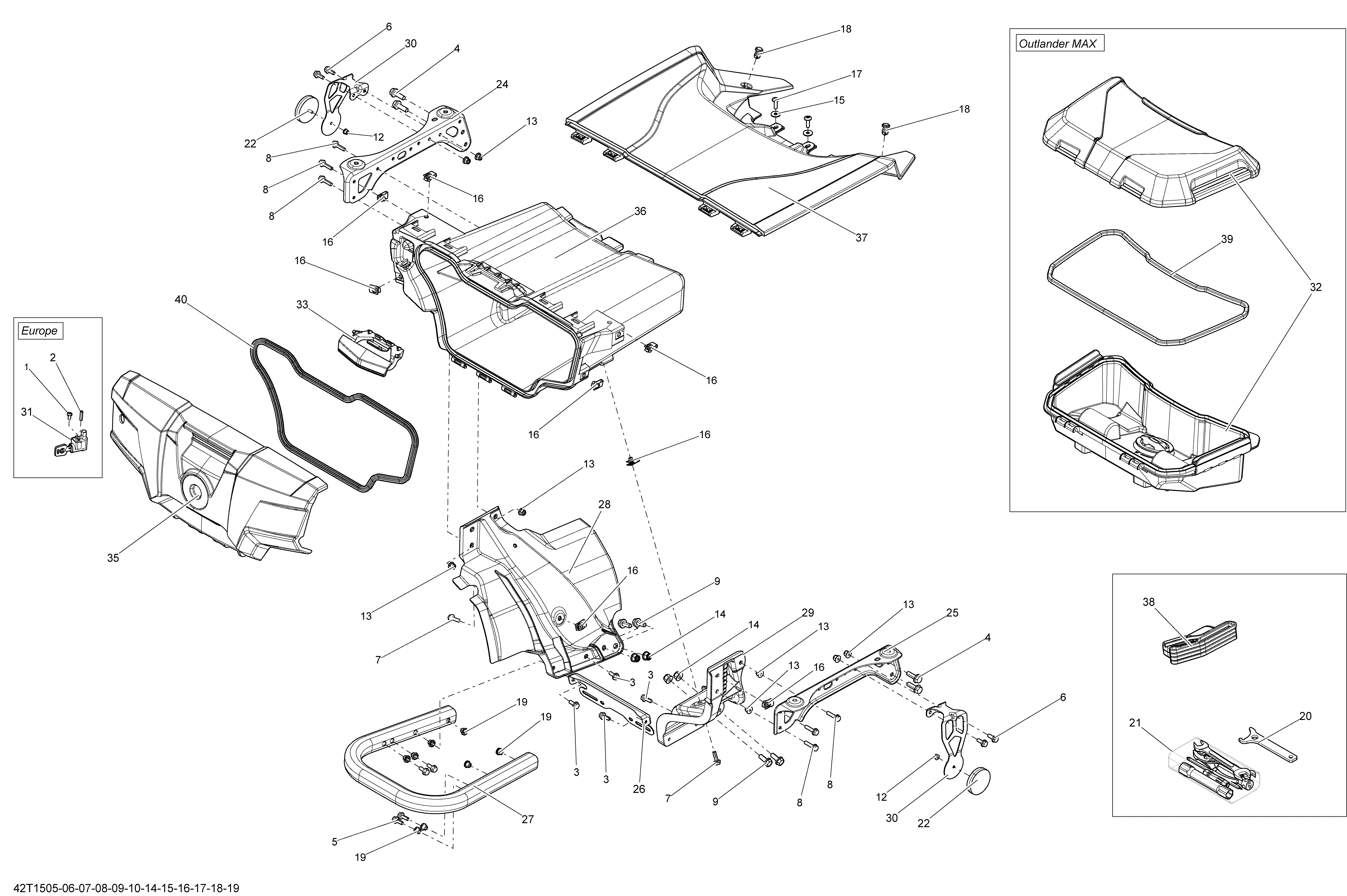

09- Rear Cargo Box _42T1514 для BRP Outlander MAX 500 EFI - 2015
-
№АртикулНазвание
-
3207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234062670 Flat WasherFlat Washer
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
18293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
19293450274 InsertInsert
-
20529000035 Adjustement WrenchAdjustement Wrench
-
21704700148 Tool KitTool Kit
-
22705002408 Red ReflectorRed Reflector
-
24705004563 LH SupportLH Support
-
25705004564 RH SupportRH Support
-
26705004806 Plate SupportPlate Support
-
27715001564 Rear BumperRear Bumper
-
28705006997 LH Cargo SupportLH Cargo Support
-
29705006998 RH Cargo SupportRH Cargo Support
-
30705202576 Reflector SupportReflector Support
-
32708200408 Box Ass'yBox Ass'y
-
33708200272 HandleHandle
-
35708300150 Rear PanelRear Panel
-
36708300674 Rear Storage BoxRear Storage Box
-
37715002638 Rear Storage Box Cover. Model-Europe, InternationalRear Storage Box Cover. Model-Europe, International
-
37715002635 Rear Storage Box Cover. Model- North AmericaRear Storage Box Cover. Model- North America
-
38710002270 Remote Control. Package-XTRemote Control. Package-XT
-
39293250312 Neoprene SealNeoprene Seal
-
40293250275 Neoprene SealNeoprene Seal
