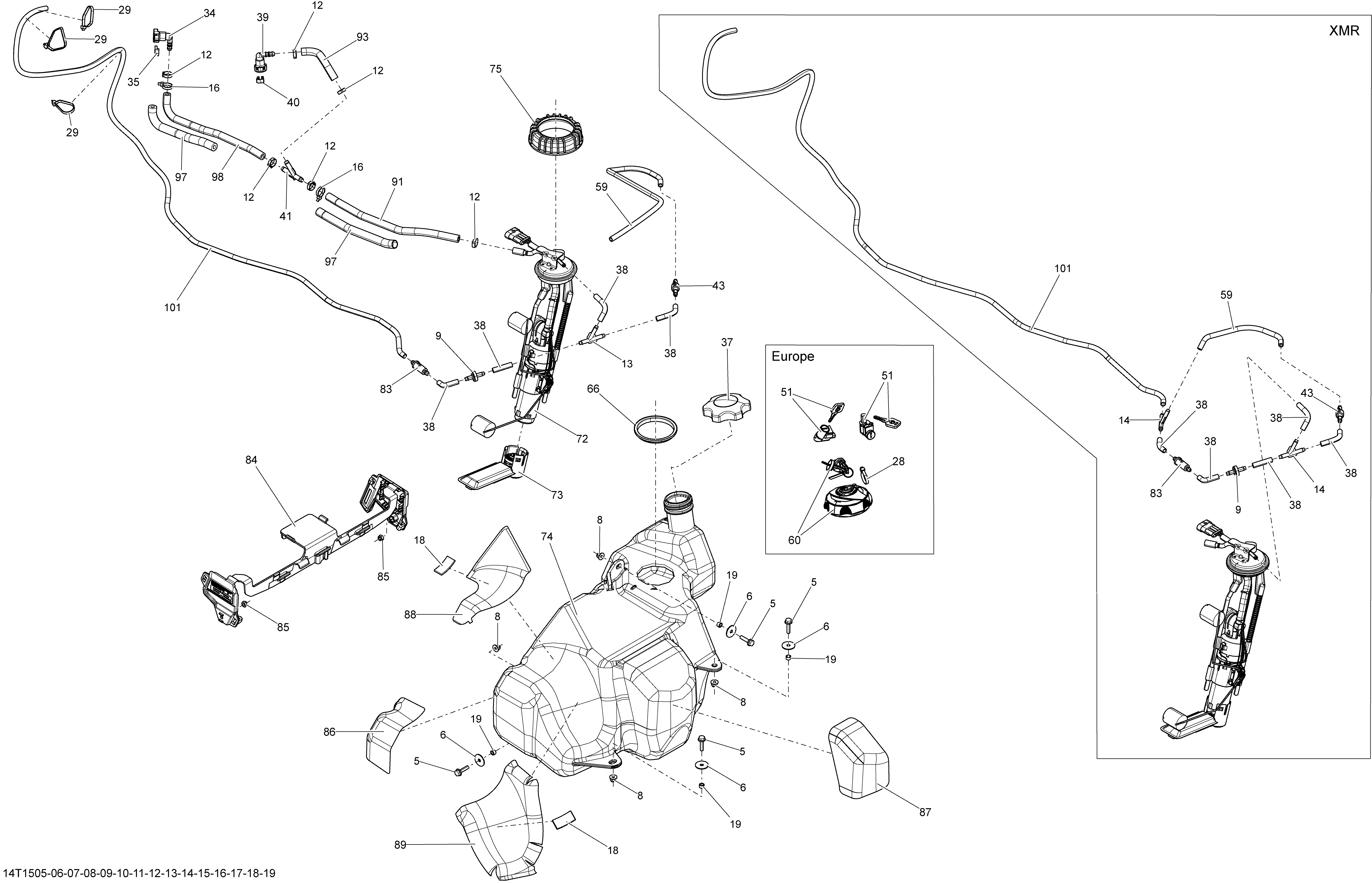

02- Fuel System _14T1511 для BRP Renegade 500 EFI - 2015
-
№АртикулНазвание
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224060251 WasherWasher
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9275500398 Check ValveCheck Valve
-
12293650047 Crimp ClampCrimp Clamp
-
13293710059 Y-FittingY-Fitting
-
16293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
18293830172 Rubber PadRubber Pad
-
19293900104 BushingBushing
-
28414115200 Tie-Rap 180 mm. Model-EuropeTie-Rap 180 mm. Model-Europe
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34709000627 Quick Fitting 45° Ass'y. Includes 34 to 35Quick Fitting 45° Ass'y. Includes 34 to 35
-
35513033135 Locking ClipLocking Clip
-
37513033025 Fuel Tank Cap. Model-North America, InternationalFuel Tank Cap. Model-North America, International
-
38415080200 Hose, PolyurethaneHose, Polyurethane
-
39709000627 Quick Fitting 45° Ass'y. Includes 39 to 40Quick Fitting 45° Ass'y. Includes 39 to 40
-
40513033135 Locking ClipLocking Clip
-
41293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
43513033469 Check ValveCheck Valve
-
51707000666 Lock. Model-EuropeLock. Model-Europe
-
59415080200 Hose, PolyurethaneHose, Polyurethane
-
60860200387 Locking Cap Tank. Model-EuropeLocking Cap Tank. Model-Europe
-
66709000208 SealSeal
-
72709000287 Fuel Pump Module Ass'y. Includes 72 to 73Fuel Pump Module Ass'y. Includes 72 to 73
-
73709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
-
74709000310 Fuel Tank Ass'y. Includes 74 to 75Fuel Tank Ass'y. Includes 74 to 75
-
75709000328 Fuel Pump Module NutFuel Pump Module Nut
-
83709000330 FilterFilter
-
84709000359 Hose Support Ass'y. Includes 85 to 86Hose Support Ass'y. Includes 85 to 86
-
85232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
86709000381 Heat Reflective SheetHeat Reflective Sheet
-
87709000382 Heat Reflective SheetHeat Reflective Sheet
-
88709000387 Heat Reflective SheetHeat Reflective Sheet
-
89709000388 Heat Reflective SheetHeat Reflective Sheet
-
91709000516 Fuel LineFuel Line
-
93709000516 Fuel LineFuel Line
-
97415080000 Tubing 16 mmTubing 16 mm
-
98709000516 Fuel LineFuel Line
-
101415080200 Hose, PolyurethaneHose, Polyurethane
