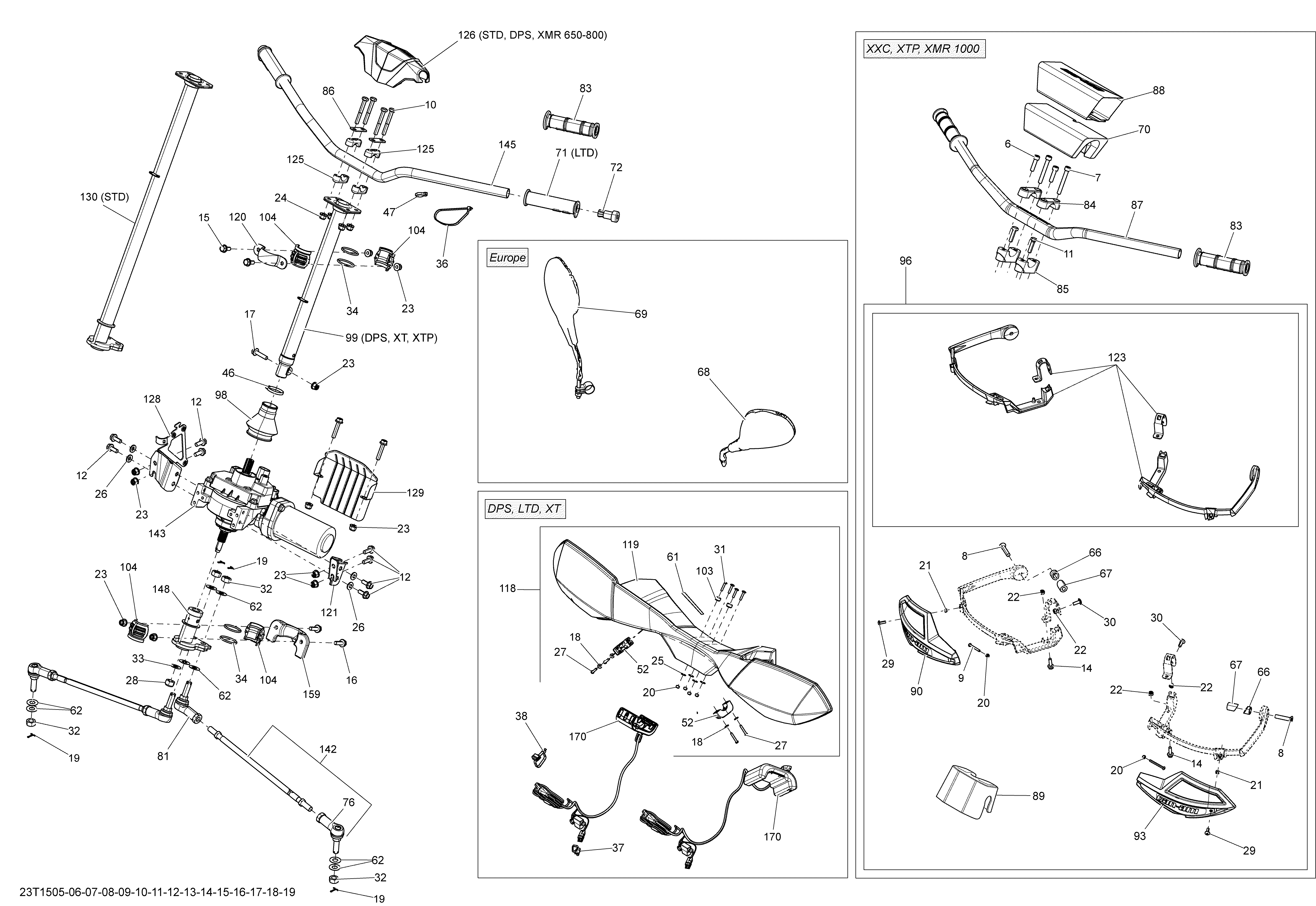

07- Steering _23T1512 для BRP Renegade 800R EFI - 2015
-
№АртикулНазвание
-
6205083060 Socket Screw M8 X 30. Package-XXCSocket Screw M8 X 30. Package-XXC
-
7205086060 Socket Head Screw M8 X 60. Package-XXCSocket Head Screw M8 X 60. Package-XXC
-
8205384034 Socket Head Screw. Package-XXCSocket Head Screw. Package-XXC
-
9205444086 Socket Head Screw M4 X 40. Package-XXCSocket Head Screw M4 X 40. Package-XXC
-
10207086046 Hex. Screw M8 X 60. Package-STDHex. Screw M8 X 60. Package-STD
-
11207183060 Hex. Screw M8 X 30. Package-XXCHex. Screw M8 X 30. Package-XXC
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
14207662044 Hex. Flanged Screw M6 X 20. Package-XXCHex. Flanged Screw M6 X 20. Package-XXC
-
15207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
16207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
17207683544 Hex. Flanged Screw M8 X 35. Package-XXCHex. Flanged Screw M8 X 35. Package-XXC
-
18211200035 Flat WasherFlat Washer
-
19211400013 Cotter PinCotter Pin
-
20232541414 Elastic Stop Nut M4. Package-XXCElastic Stop Nut M4. Package-XXC
-
21232551600 Hex. Elastic Nut M5. Package-XXCHex. Elastic Nut M5. Package-XXC
-
22232061404 Hexagonal Nut M6. Package-XXCHexagonal Nut M6. Package-XXC
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
26234281474 Conical Spring Washer M8. Package-XXCConical Spring Washer M8. Package-XXC
-
27241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
28250000047 Hex. Flanged Elastic Nut M12. Package-XXCHex. Flanged Elastic Nut M12. Package-XXC
-
29250000145 Torx Screw M5 X 14. Package-XXCTorx Screw M5 X 14. Package-XXC
-
30250000717 Torx Head Screw M6 X 16. Package-XXCTorx Head Screw M6 X 16. Package-XXC
-
32250100099 Nut M12Nut M12
-
33250200086 Flat Washer. Package-XXCFlat Washer. Package-XXC
-
34293300068 O-RingO-Ring
-
46414115200 Tie-Rap 180 mm. Package-XXCTie-Rap 180 mm. Package-XXC
-
52517303264 U-ClampU-Clamp
-
61704902966 DPS DecalDPS Decal
-
62250200086 Flat WasherFlat Washer
-
66709400161 Bracket, Small. Package-XXCBracket, Small. Package-XXC
-
67709400162 Bracket, Large. Package-XXCBracket, Large. Package-XXC
-
68709400406 LH Mirror. Model-EuropeLH Mirror. Model-Europe
-
69709400523 RH Mirror. Model-EuropeRH Mirror. Model-Europe
-
70709400422 Foam. Package-XXCFoam. Package-XXC
-
72709400449 End Piece. Package-STDEnd Piece. Package-STD
-
76709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
81709400490 Ball JointBall Joint
-
83709400493 Handle GripHandle Grip
-
84709400496 Support. Package-XXCSupport. Package-XXC
-
85709400497 Steering Support. Package-XXCSteering Support. Package-XXC
-
86709400509 Stiffner. Package-STDStiffner. Package-STD
-
87709400513 Aluminum- Handle Bar. Package-XXCAluminum- Handle Bar. Package-XXC
-
87709401530 Manta Green Handle Bar. Package-XXC Digital CamoManta Green Handle Bar. Package-XXC Digital Camo
-
88709400519 Cover. Package-XXC BlackCover. Package-XXC Black
-
88709401511 Cover. Package-XXC Digital CamoCover. Package-XXC Digital Camo
-
89709400278 Steering Cover. Package-XXCSteering Cover. Package-XXC
-
90709400616 Black RH Hand Air Deflector. Model-REN XXC Deep BlackBlack RH Hand Air Deflector. Model-REN XXC Deep Black
-
90709401622 Manta Green RH Deflector. Model-REN XXC Digital CamoManta Green RH Deflector. Model-REN XXC Digital Camo
-
93709400617 Black LH Hand Air Deflector. Model-REN XXC Deep BlackBlack LH Hand Air Deflector. Model-REN XXC Deep Black
-
93709401623 Manta Green LH Deflector. Model-REN XXC Digital CamoManta Green LH Deflector. Model-REN XXC Digital Camo
-
98709400674 Bellows. Package-XXCBellows. Package-XXC
-
99709400703 Noir Upper Main Tube. Package-XXCNoir Upper Main Tube. Package-XXC
-
104709400783 Spherical Half BushingSpherical Half Bushing
-
119709400822 Handle Bar ProtectorHandle Bar Protector
-
120709400827 Upper Column AttachmentUpper Column Attachment
-
121709400848 Power Steering Module Bracket. Package-XXCPower Steering Module Bracket. Package-XXC
-
123715000545 Frame Deflector Support Kit. Package-XXCFrame Deflector Support Kit. Package-XXC
-
125709400919 Steering Support. Package-STDSteering Support. Package-STD
-
126709400939 Cover. Package-STDCover. Package-STD
-
128709400994 RH Steering BracketRH Steering Bracket
-
129709401005 Heat Deflector. Package-XXCHeat Deflector. Package-XXC
-
130709401008 Main Tube. Package-STDMain Tube. Package-STD
-
142703500783 Tie-Rod Ass'yTie-Rod Ass'y
-
143709401182 Power Steering. Package-XXCPower Steering. Package-XXC
-
145709401240 Black Handle Bar. Package-STDBlack Handle Bar. Package-STD
-
148703500785 Pitman Kit. Package-XXCPitman Kit. Package-XXC
-
159709401428 Column AttachmentColumn Attachment
