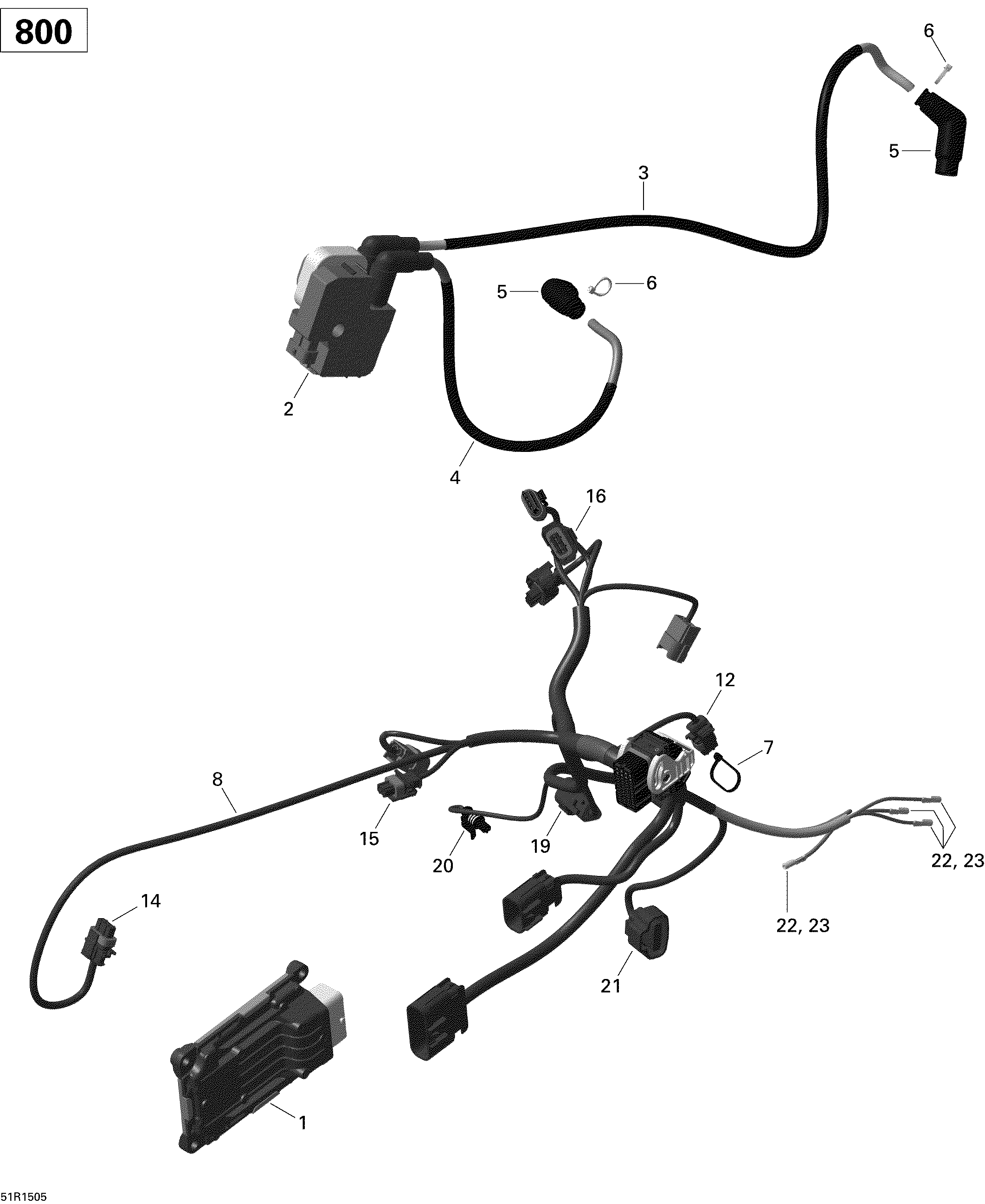

10- Engine Harness And Electronic Module Renegade_51R1505 для BRP Renegade 800R EFI - 2015
-
№АртикулНазвание
-
1420264972 ECM, Engine Control Module. Package-XXC North AmericaECM, Engine Control Module. Package-XXC North America
-
1420264972 ECM, Engine Control Module. Package-XXC InternationalECM, Engine Control Module. Package-XXC International
-
1420264972 ECM, Engine Control Module. Package-STD North AmericaECM, Engine Control Module. Package-STD North America
-
1420264972 ECM, Engine Control Module. Package-STD InternationalECM, Engine Control Module. Package-STD International
-
1420266910 ECM, Engine Control Module. Package-STD EuropeECM, Engine Control Module. Package-STD Europe
-
1420266910 ECM, Engine Control Module. Package-XXC EuropeECM, Engine Control Module. Package-XXC Europe
-
2278001546 Ignition CoilIgnition Coil
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8420665908 Engine Wiring Harness. Includes 8 to 23Engine Wiring Harness. Includes 8 to 23
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
19278002378 Male HousingMale Housing
-
20278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22278001009 Female TerminalFemale Terminal
-
23278001007 Insulated SheathInsulated Sheath
