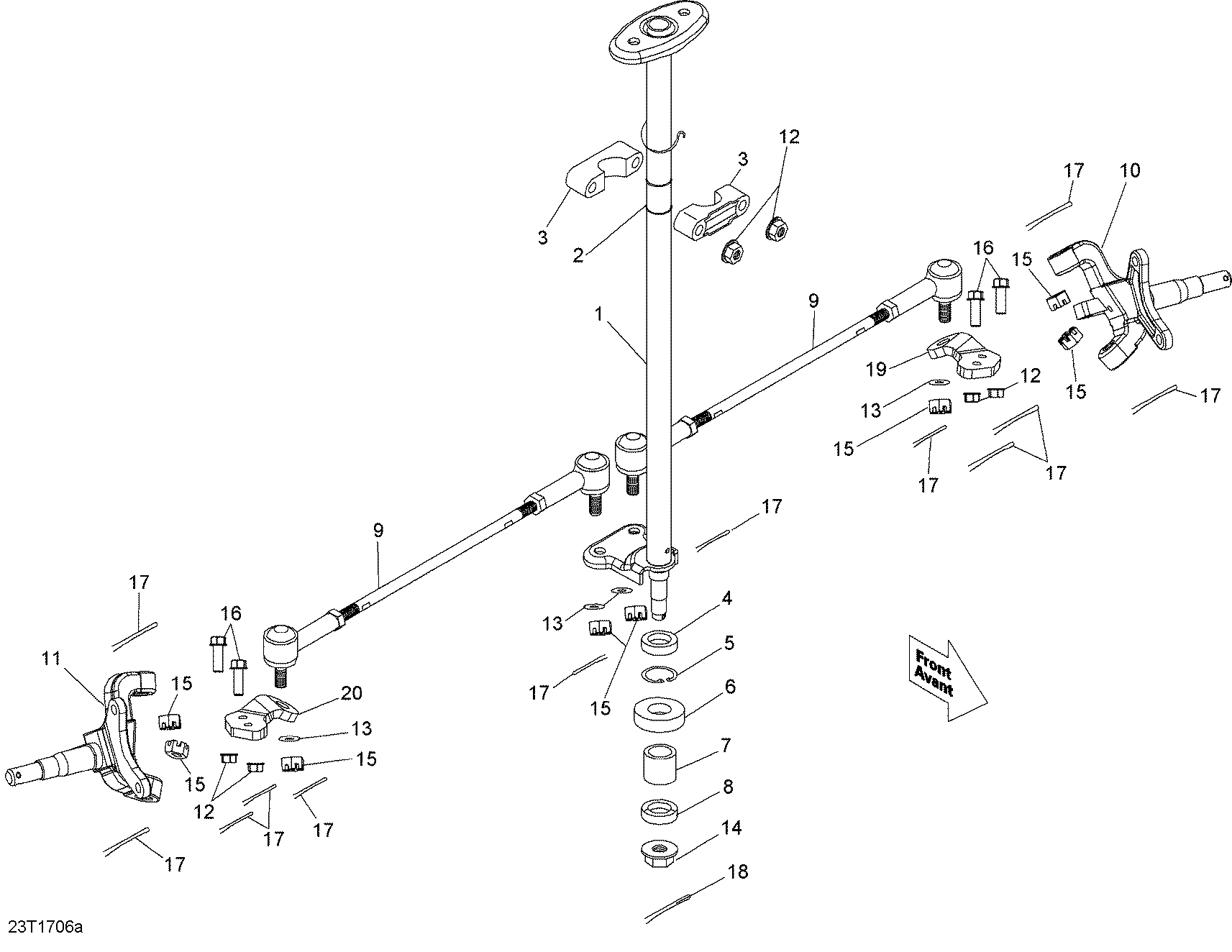

07- Steering для BRP 3- DS 90 X - 2018
-
№АртикулНазвание
-
1V53200DGF08H Steering Column, BlackSteering Column, Black
-
2V53217MAA020 SleeveSleeve
-
3V53434MAA020BK Steering Shaft HolderSteering Shaft Holder
-
4V92101MAA000 Oil SealOil Seal
-
5V9452032000 C-CirclipC-Circlip
-
6A961006002ZZ Radial Ball Bearing, 6002ZZRadial Ball Bearing, 6002ZZ
-
7V22112MAA010 CollarCollar
-
8V92102MAA000 Oil SealOil Seal
-
9V53180DGF03H Tie-Rod Ass'yTie-Rod Ass'y
-
10V51215DGF05HLL LH KnuckleLH Knuckle
-
11V51210DGF04HLL RH KnuckleRH Knuckle
-
12232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
13234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
14232571414 Elastic Stop Nut M14Elastic Stop Nut M14
-
15V9035210000LL Lock NutLock Nut
-
16207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
17V9420117020LL Cotter PinCotter Pin
-
18V9420130032LL Cotter PinCotter Pin
-
19V51211DGF06H LH Tie Rod PlateLH Tie Rod Plate
-
20V51212DGF06H RH Tie Rod PlateRH Tie Rod Plate
