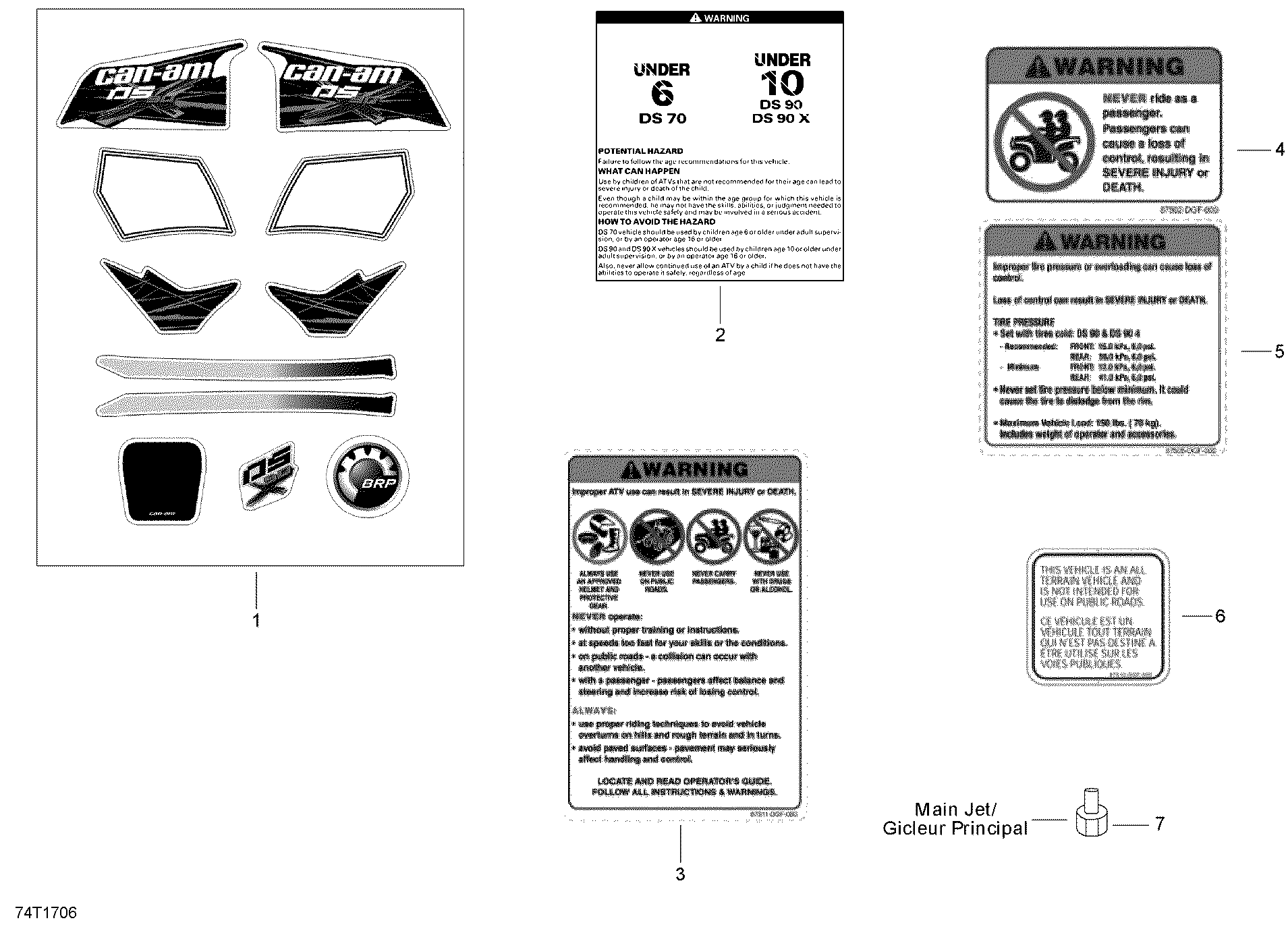

09- Accessories And Decals для BRP 3- DS 90 X - 2018
-
№АртикулНазвание
-
1V87301DGF02H DS90X Decal SetDS90X Decal Set
-
2V87213DGF000LL Warning LabelWarning Label
-
3V87212DGF000LL Warning LabelWarning Label
-
4V87215DGF000LL Warning LabelWarning Label
-
5V87216DGF000LL Warning LabelWarning Label
-
6V87218DGF000LL Warning Label. North America ModelWarning Label. North America Model
-
6704901394 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
7V16104DGF000 Main Jet 68Main Jet 68
-
7V16105DGF000 Main Jet 70Main Jet 70
-
7V16106DGF000 Main Jet 72Main Jet 72
-
7V16103DGE010 Main Jet 75Main Jet 75
-
7V16107DGF000 Main Jet 78Main Jet 78
-
7V16109DGF000 Main Jet 82Main Jet 82
-
7V16110DGF000 Main Jet 85Main Jet 85
