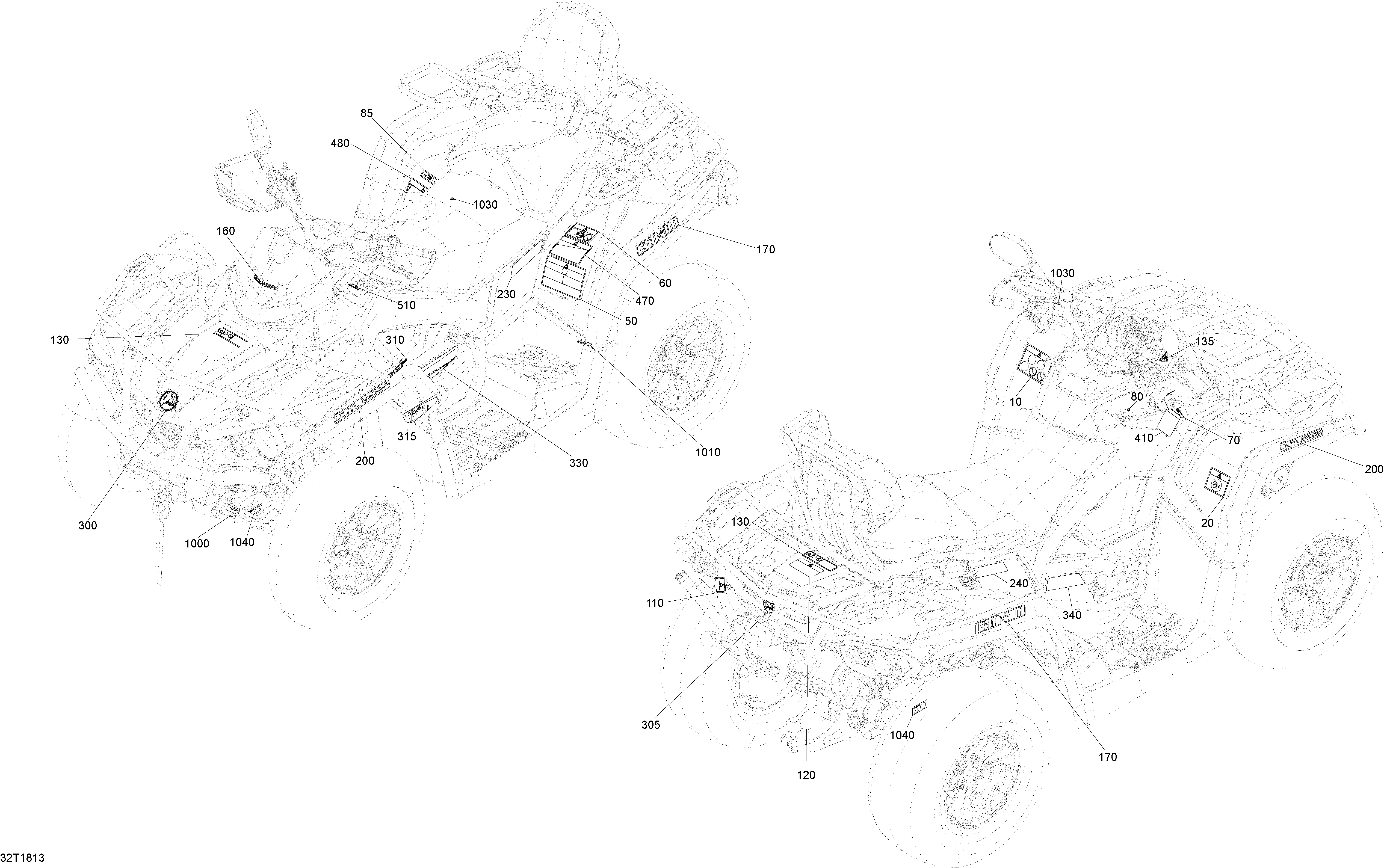

09- Decals для BRP 5- Outlander T3 MAX 570 EFI - 2018
-
№АртикулНазвание
-
10704906845 Warning Decal, Death and InjuriesWarning Decal, Death and Injuries
-
20704905679 Warning Decal Over 16Warning Decal Over 16
-
50704907125 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704905694 Warning Decal PassengerWarning Decal Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
80704906894 Parking Brake DecalParking Brake Decal
-
85704906301 Warning Decal, Cat. 1Warning Decal, Cat. 1
-
110704905699 Warning DecalWarning Decal
-
120704905701 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704905703 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
160704905723 Console Decal. Package DPSConsole Decal. Package DPS
-
160704905972 Console Decal. Package XTConsole Decal. Package XT
-
170704905730 CAN-AM Decal. Magnesium ModelCAN-AM Decal. Magnesium Model
-
170704905731 CAN-AM Decal. Squadron Green ModelCAN-AM Decal. Squadron Green Model
-
170704906423 Can-Am Decal. Orange Crush ModelCan-Am Decal. Orange Crush Model
-
200704905736 Outlander Decal. Magnesium ModelOutlander Decal. Magnesium Model
-
200704905737 Outlander Decal. Squadron Green ModelOutlander Decal. Squadron Green Model
-
200704906424 Outlander Decal. Orange Crush ModelOutlander Decal. Orange Crush Model
-
230704905973 LH XT Max Decal. Package XTLH XT Max Decal. Package XT
-
240704905974 RH XT Max Decal. Package XTRH XT Max Decal. Package XT
-
300516008739 Logo BRPLogo BRP
-
305516008738 Logo BRPLogo BRP
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704905747 4X4 Visco-Lok Decal. Without Brake ABS4X4 Visco-Lok Decal. Without Brake ABS
-
315704907066 4X4 CVT Decal. With Brake ABS4X4 CVT Decal. With Brake ABS
-
330704905749 LH 570 Engine DecalLH 570 Engine Decal
-
340704905753 RH 570 Engine DecalRH 570 Engine Decal
-
410704903947 Warning Decal, General Use ModelWarning Decal, General Use Model
-
470704907111 Warning Decal, Road UseWarning Decal, Road Use
-
480704905720 Decal, MutltilingualDecal, Mutltilingual
-
510704906243 Decal DESS KeyDecal DESS Key
-
1000704906895 Decal Front Grease FittingDecal Front Grease Fitting
-
1010704906896 Decal Rear Grease FittingDecal Rear Grease Fitting
-
1030704906395 Brake Liquid DecalBrake Liquid Decal
-
1040704907067 Decal Support PointDecal Support Point
