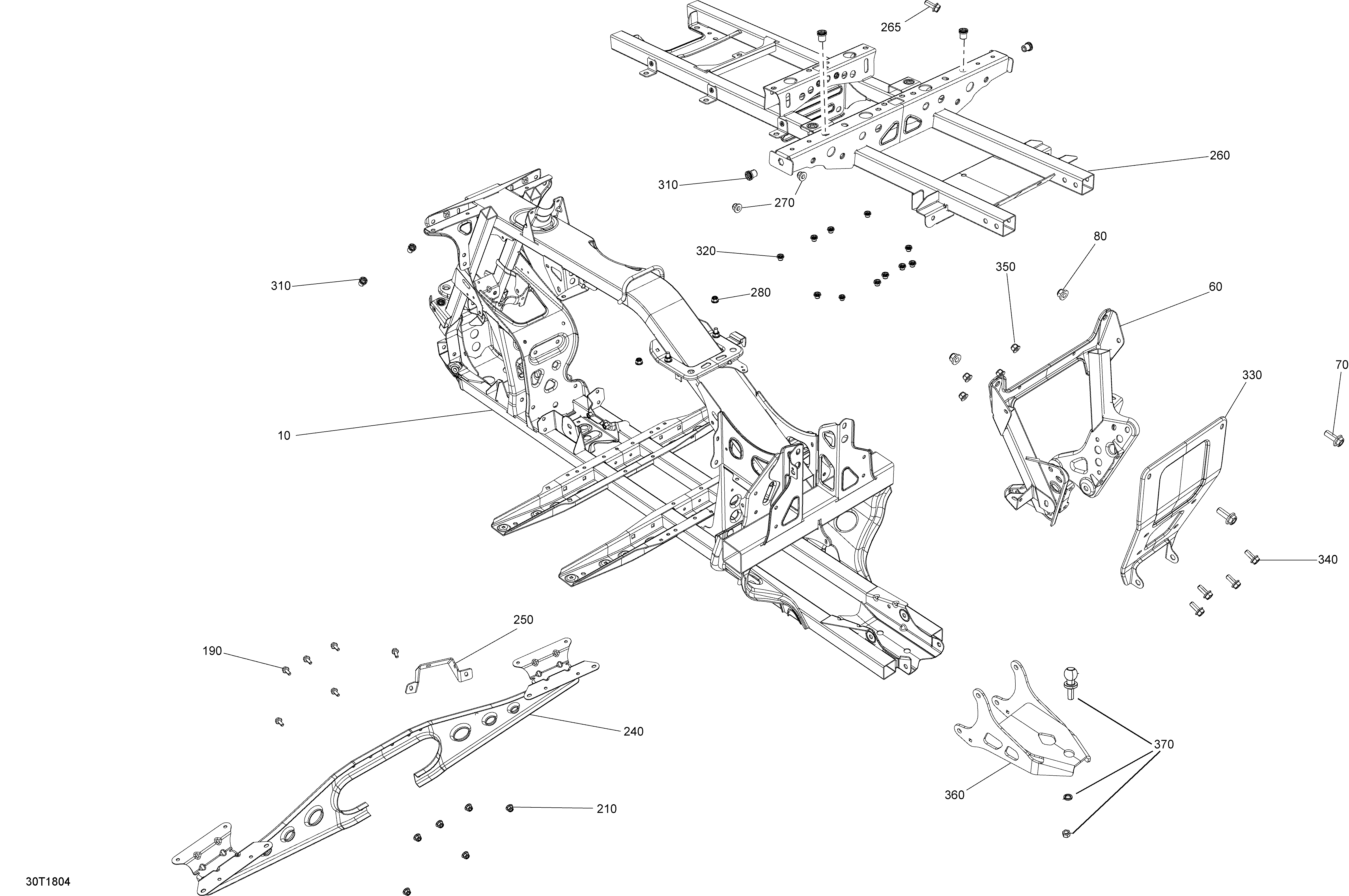

09- Frame для BRP 5- Outlander T3 MAX 570 EFI - 2018
-
№АртикулНазвание
-
10705206363 Black Frame. Max ModelBlack Frame. Max Model
-
10705206365 Black Frame. Non Max ModelBlack Frame. Non Max Model
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
190207661644 Hex. Flanged Screw M6 X 16. Max ModelHex. Flanged Screw M6 X 16. Max Model
-
210233261414 Hex. Flanged Elastic Nut M6. Max ModelHex. Flanged Elastic Nut M6. Max Model
-
240705202947 Footrest Support. Max ModelFootrest Support. Max Model
-
250705203874 Master Cylinder Bracket. Max ModelMaster Cylinder Bracket. Max Model
-
260705203362 Black Frame Extension. Non Max ModelBlack Frame Extension. Non Max Model
-
260705203427 Black Frame Extension. Max ModelBlack Frame Extension. Max Model
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
310293450307 InsertInsert
-
320250100199 Insert Half Hex Body M6 x 1.0. Max ModelInsert Half Hex Body M6 x 1.0. Max Model
-
320250100199 Insert Half Hex Body M6 x 1.0. Non Max ModelInsert Half Hex Body M6 x 1.0. Non Max Model
-
330705203541 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
360705206592 Trailer HitchTrailer Hitch
-
370705206722 Coupling Ball Ass'yCoupling Ball Ass'y
-
390705206416 Trailer connector Support. Not ShownTrailer connector Support. Not Shown
