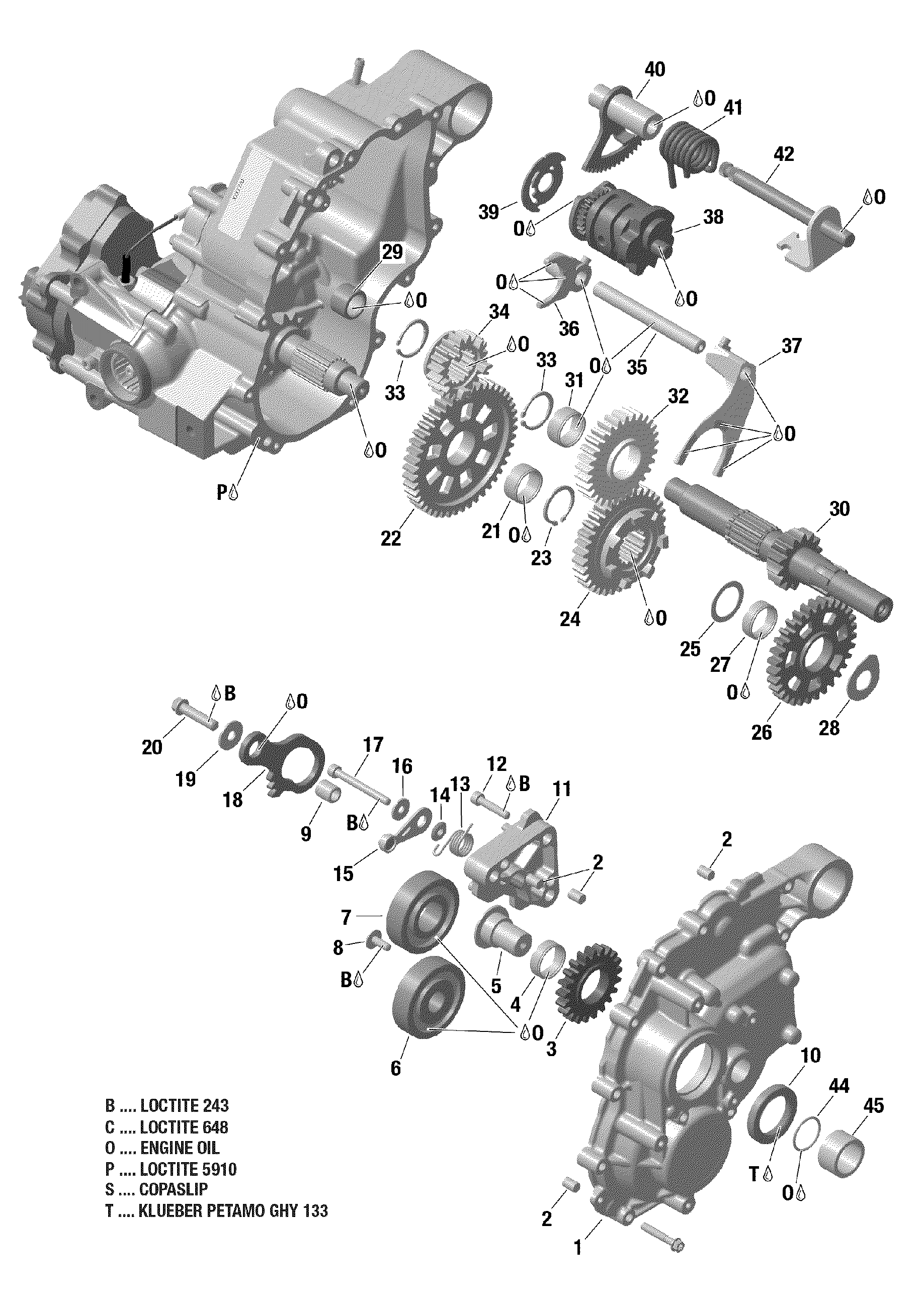

05- Gear Box 2 - 420685397 для BRP 3- Outlander 850 EFI - 2018
-
№АртикулНазвание
-
1>6420212215 LH Gear Housing Ass'yLH Gear Housing Ass'y
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420434582 Intermedite Gear, 21 TeethIntermedite Gear, 21 Teeth
-
4420232652 Needle BearingNeedle Bearing
-
5420620681 Intermedite Gear ShaftIntermedite Gear Shaft
-
6420632290 Ball BearingBall Bearing
-
7420932825 Ball BearingBall Bearing
-
8420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
10420950089 Oil SealOil Seal
-
11420611451 SupportSupport
-
12205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
13420239561 Index SpringIndex Spring
-
14420227717 Step RingStep Ring
-
15420248526 Index LeverIndex Lever
-
16420827300 WasherWasher
-
17420240331 Socket Head Screw M6 X 55Socket Head Screw M6 X 55
-
18420257653 Parking Lock Lever Ass'yParking Lock Lever Ass'y
-
19420227937 Plain WasherPlain Washer
-
20420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
21420632070 Needle BearingNeedle Bearing
-
22420435730 Pinion Gear, 46 TeethPinion Gear, 46 Teeth
-
23420845772 Retaining RingRetaining Ring
-
24420434541 Pinion Gear, 35 TeethPinion Gear, 35 Teeth
-
25420427011 Thrust WasherThrust Washer
-
26420434532 Pigion Gear, 31 TeethPigion Gear, 31 Teeth
-
27420232652 Needle BearingNeedle Bearing
-
28420281302 Thrust Washer Set, CVT SideThrust Washer Set, CVT Side
-
29420832240 Needle BushingNeedle Bushing
-
30420620673 Countershaft, 14 TeethCountershaft, 14 Teeth
-
31420632070 Needle BearingNeedle Bearing
-
32420434571 Pinion Gear, 28 TeethPinion Gear, 28 Teeth
-
33420845772 Retaining RingRetaining Ring
-
34420435740 Shift Gear, 20 TeethShift Gear, 20 Teeth
-
35420258389 Fork SpindleFork Spindle
-
36420657311 Shifting ForkShifting Fork
-
37420657321 Shifting ForkShifting Fork
-
38420657335 Shift DrumShift Drum
-
39420626092 Isolating WasherIsolating Washer
-
40>42420620923 Shift Shaft Ass'yShift Shaft Ass'y
-
43420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
44420631610 O-RingO-Ring
-
45420647253 Distance RingDistance Ring
