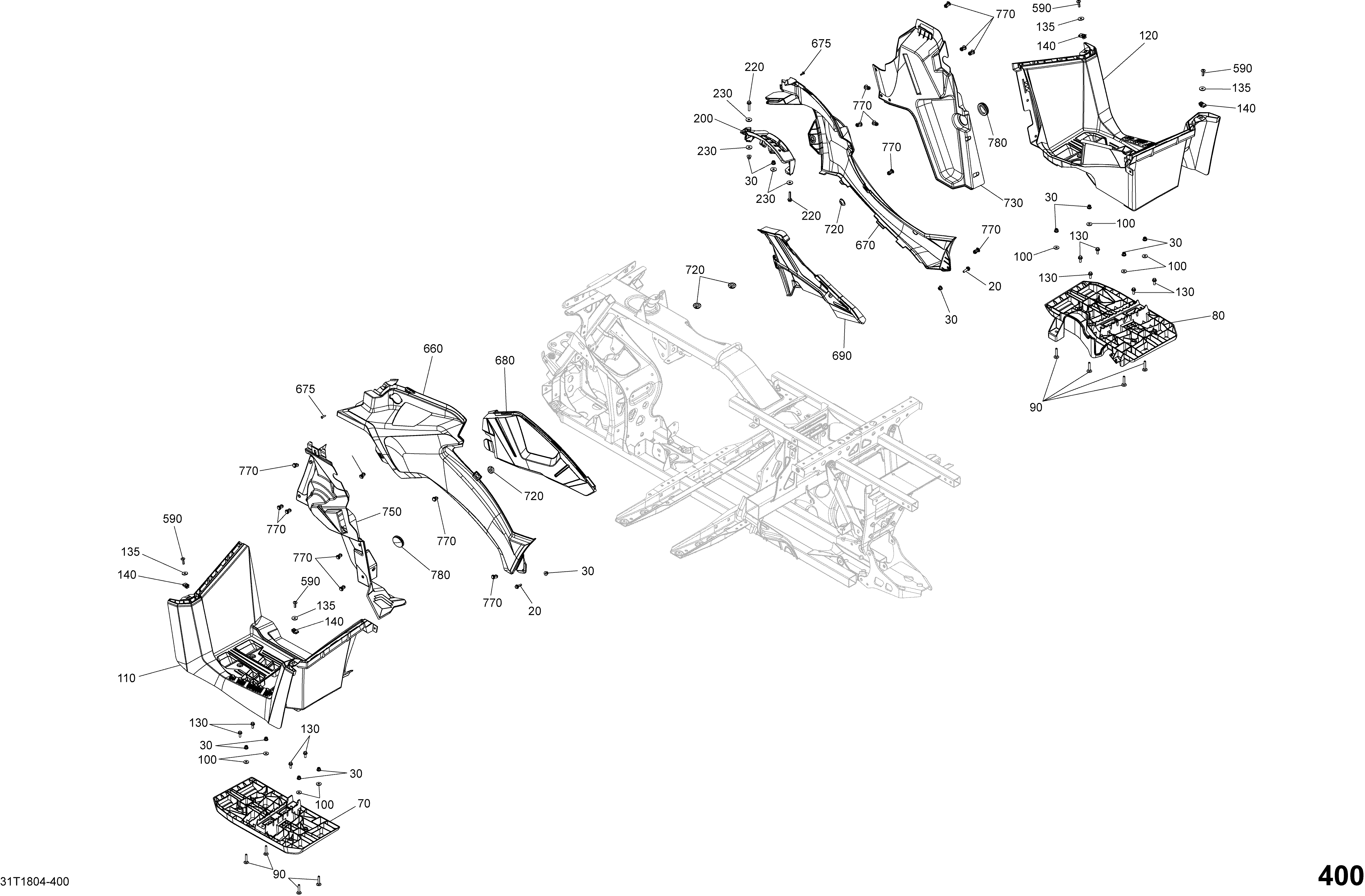

09- Body And Accessories G2 Side Body Parts - Package Hunting для BRP 3- Outlander 850 EFI - 2018
-
№АртикулНазвание
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70705011540 LH Structural FootboardLH Structural Footboard
-
80705011542 RH Structural FootboardRH Structural Footboard
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH FootrestLH Footrest
-
120705007039 RH FootrestRH Footrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
200705011546 Shifter GateShifter Gate
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
660705005236 LH PannelLH Pannel
-
670705009121 RH PannelRH Pannel
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
720705003264 GrommetGrommet
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
750705011464 LH Inner FenderLH Inner Fender
-
770293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
780293250242 Rubber CoverRubber Cover
