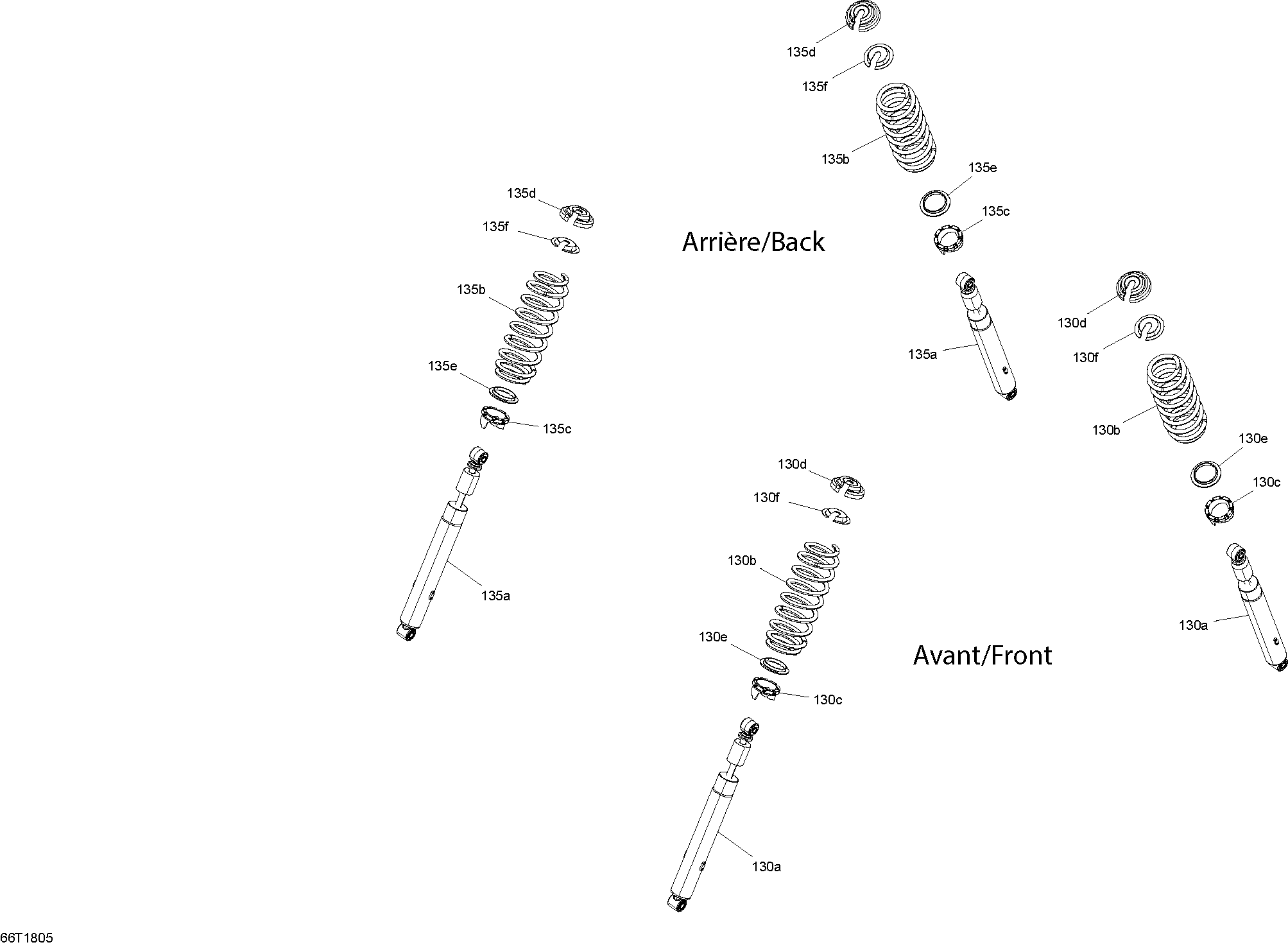

07- Shocks Hunting Edition для BRP 4- Outlander 1000R EFI, MY2018 - 2018
-
№АртикулНазвание
-
135a706000958 ShockShock
-
135b706002585 Black SpringBlack Spring
-
135c505073625 Adjustment CamAdjustment Cam
-
135d706200881 Spring StopperSpring Stopper
-
135e503187500 Spring GuideSpring Guide
-
135f706200785 CapCap
-
130a706201170 Front ShockFront Shock
-
130b706202716 Black SpringBlack Spring
-
130c505073625 Adjustment CamAdjustment Cam
-
130d706200881 Spring StopperSpring Stopper
-
130e503187500 Spring GuideSpring Guide
-
130f706200785 CapCap
