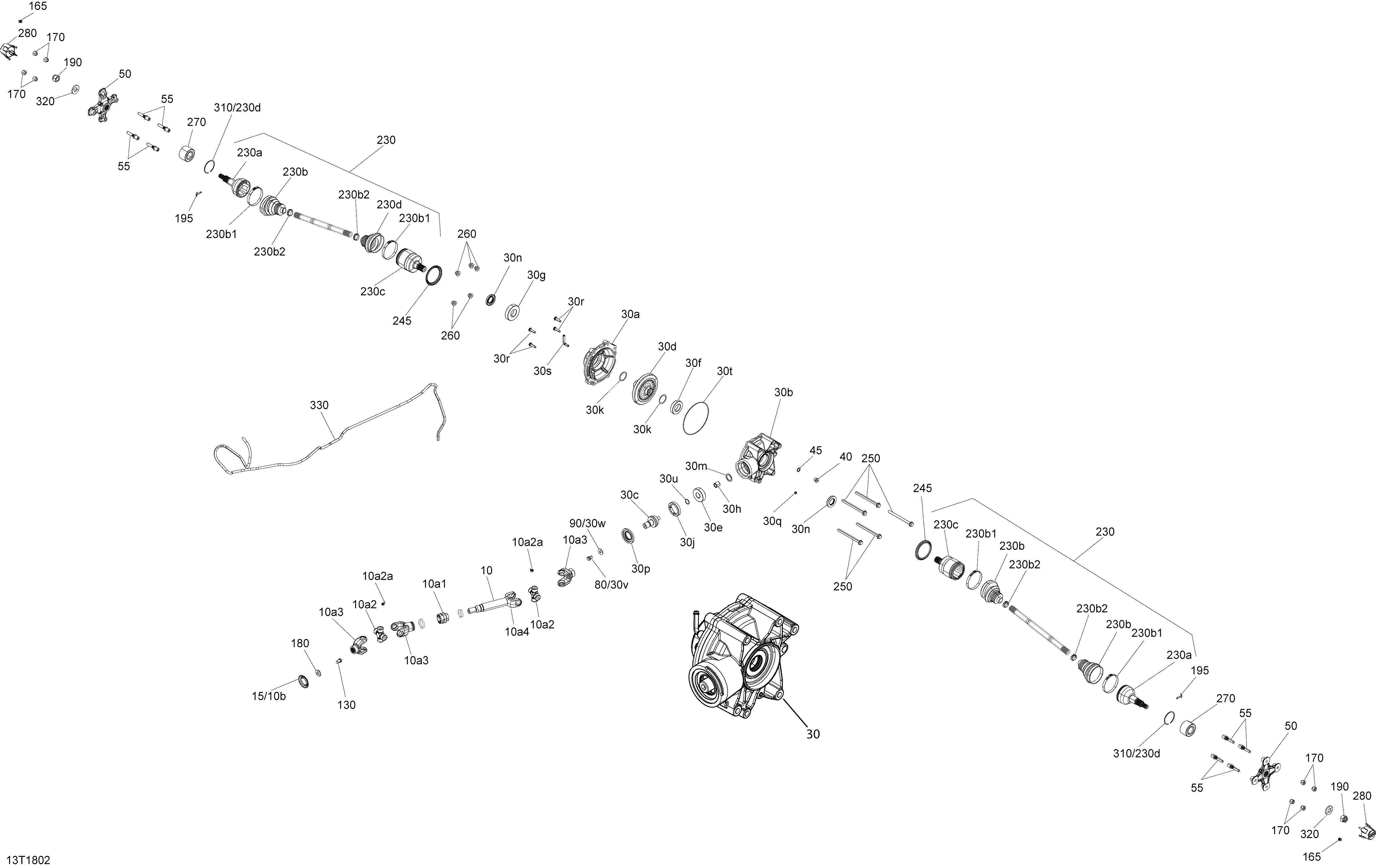

08- Rear Drive Except XMR для BRP 4- Outlander 1000R EFI, MY2018 - 2018
-
№АртикулНазвание
-
10703500991 Shaft Ass'y Kit. Package PRO, Winter, XXCShaft Ass'y Kit. Package PRO, Winter, XXC
-
10703500992 Shaft Ass'y Kit. Package PRO, Winter MAX ModelsShaft Ass'y Kit. Package PRO, Winter MAX Models
-
10703500992 Shaft Ass'y Kit. Engine 1000 EFI Package XTP MAX ModelsShaft Ass'y Kit. Engine 1000 EFI Package XTP MAX Models
-
10703500986 Shaft Ass'y Kit. Package STD, DPS, MOS, XT, XTP. Includes 10 to 10bShaft Ass'y Kit. Package STD, DPS, MOS, XT, XTP. Includes 10 to 10b
-
10703500987 Shaft Ass'y Kit. MAX Models Except Package Winter, Engine 1000R EFI XTP MAX. Includes 10 to 10bShaft Ass'y Kit. MAX Models Except Package Winter, Engine 1000R EFI XTP MAX. Includes 10 to 10b
-
10a1715900118 Rubber Boot. All Models Except Package Winter, XTP, XMRRubber Boot. All Models Except Package Winter, XTP, XMR
-
10a2715900326 Universal Joint. All Models Except Package Winter, XTP, XMRUniversal Joint. All Models Except Package Winter, XTP, XMR
-
10a2a715900295 Grease Fitting. All Models Except Package Winter, XTP, XMRGrease Fitting. All Models Except Package Winter, XTP, XMR
-
10a3715900438 Yoke. All Models Except Package Winter, XTP, XMRYoke. All Models Except Package Winter, XTP, XMR
-
10a4715900500 Yoke. All Models Except Package Winter, XTP, XMR. Not ShownYoke. All Models Except Package Winter, XTP, XMR. Not Shown
-
10b705501123 Protector. All Models Except Package Winter, XTP, XMRProtector. All Models Except Package Winter, XTP, XMR
-
15705501123 ProtectorProtector
-
30703500878 Final Drive Unit. Includes 30 to 30wFinal Drive Unit. Includes 30 to 30w
-
30a705502051 Rear CoverRear Cover
-
30b705502052 Rear Pinion CoverRear Pinion Cover
-
30c705502053 Pinion 10 TeethPinion 10 Teeth
-
30d705502054 Gear 36 TeethGear 36 Teeth
-
30e705502055 Ball BearingBall Bearing
-
30f705502056 Ball BearingBall Bearing
-
30g705502057 Ball BearingBall Bearing
-
30h705502058 Needle BearingNeedle Bearing
-
30j705502059 NutNut
-
30k705502060 Differential Shim 0.02 mmDifferential Shim 0.02 mm
-
30m705502061 Pinion Gear Shim 1.67 mmPinion Gear Shim 1.67 mm
-
30n705501556 Oil SealOil Seal
-
30p705502062 Oil SealOil Seal
-
30q705501724 Plug DrainPlug Drain
-
30r705502063 ScrewScrew
-
30s705501584 Breather TubeBreather Tube
-
30t705502064 SealSeal
-
30u705502065 O-RingO-Ring
-
30v250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
30w250200014 Flat Washer M10Flat Washer M10
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
165293000110 Valve CapValve Cap
-
170250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
170250100184 Black Wheel Nut M10 X 1.25. All Package Except STD, WinterBlack Wheel Nut M10 X 1.25. All Package Except STD, Winter
-
170250100185 Chrome Wheel Nut M10 X 1.25. Package WinterChrome Wheel Nut M10 X 1.25. Package Winter
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501486 RH Homocinetic Joint. Includes 230 to 230dRH Homocinetic Joint. Includes 230 to 230d
-
230705501485 LH Homocinetic Joint. Includes 230 to 230dLH Homocinetic Joint. Includes 230 to 230d
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot KitBoot Kit
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230c705501780 Plunging JointPlunging Joint
-
230d705501781 CirclipCirclip
-
245705501124 Wear RingWear Ring
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280705400928 Wheel CapWheel Cap
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
