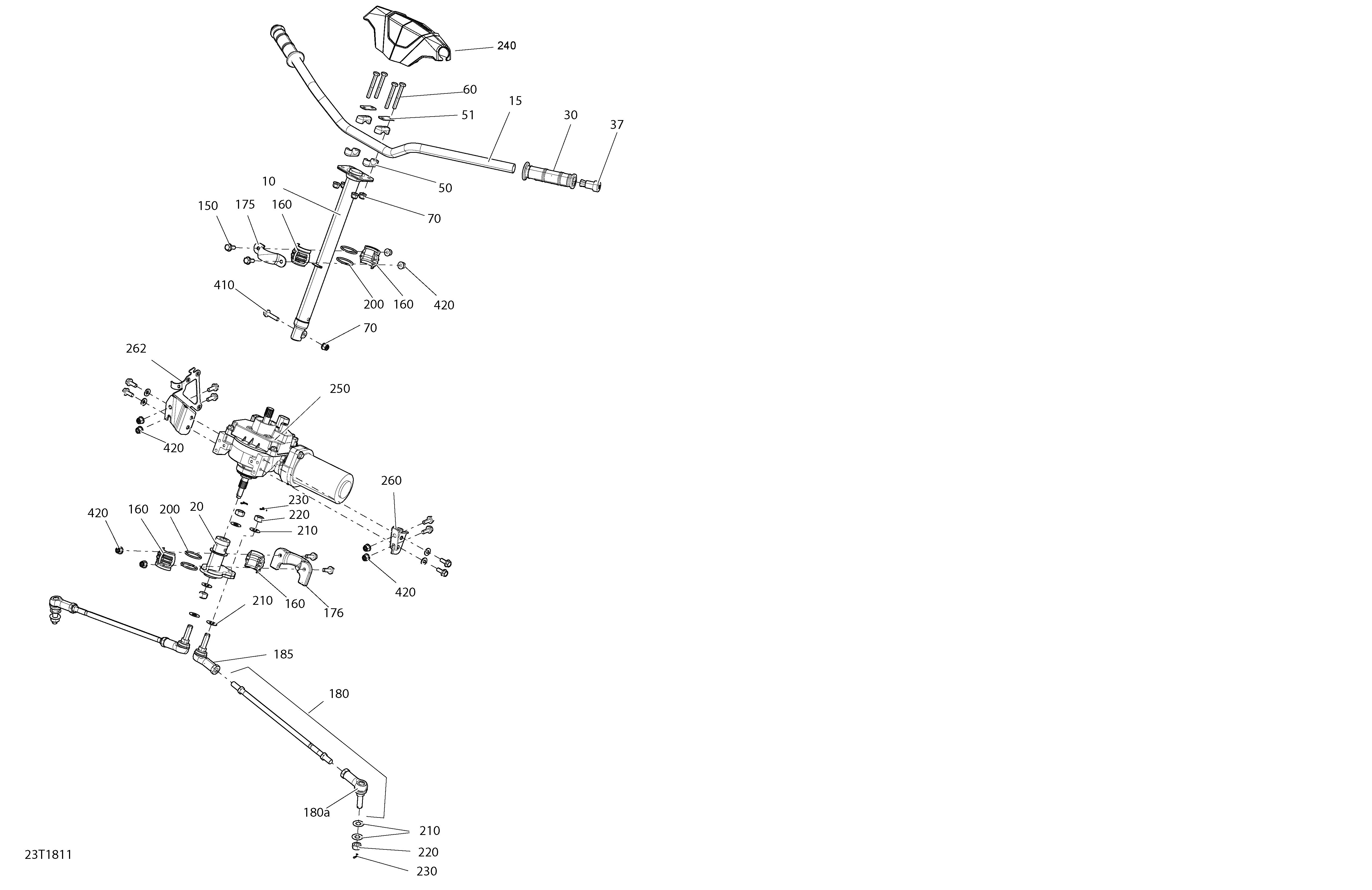

07- Steering для BRP 2- Outlander 6X6 T3 1000 EFI - 2018
-
№АртикулНазвание
-
10709401750 Black Upper Main TubeBlack Upper Main Tube
-
15709401240 Black Handle BarBlack Handle Bar
-
20709401748 Pitman ArmPitman Arm
-
30709400493 Handle GripHandle Grip
-
37709400449 End PieceEnd Piece
-
50709401799 Steering SupportSteering Support
-
51709400509 StiffnerStiffner
-
60207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703500922 Tie Rod Ass'y. Includes 180 to 180aTie Rod Ass'y. Includes 180 to 180a
-
180a709401837 Ball Joint, LH ThreadBall Joint, LH Thread
-
185709401839 Ball Joint, RH ThreadBall Joint, RH Thread
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709400939 CoverCover
-
250709402230 Power SteeringPower Steering
-
260709402184 Power Steering Module BracketPower Steering Module Bracket
-
262709402185 Bracket RhBracket Rh
-
263709401743 Power Steering Support. Not ShownPower Steering Support. Not Shown
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
410250000986 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
415233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
420233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
