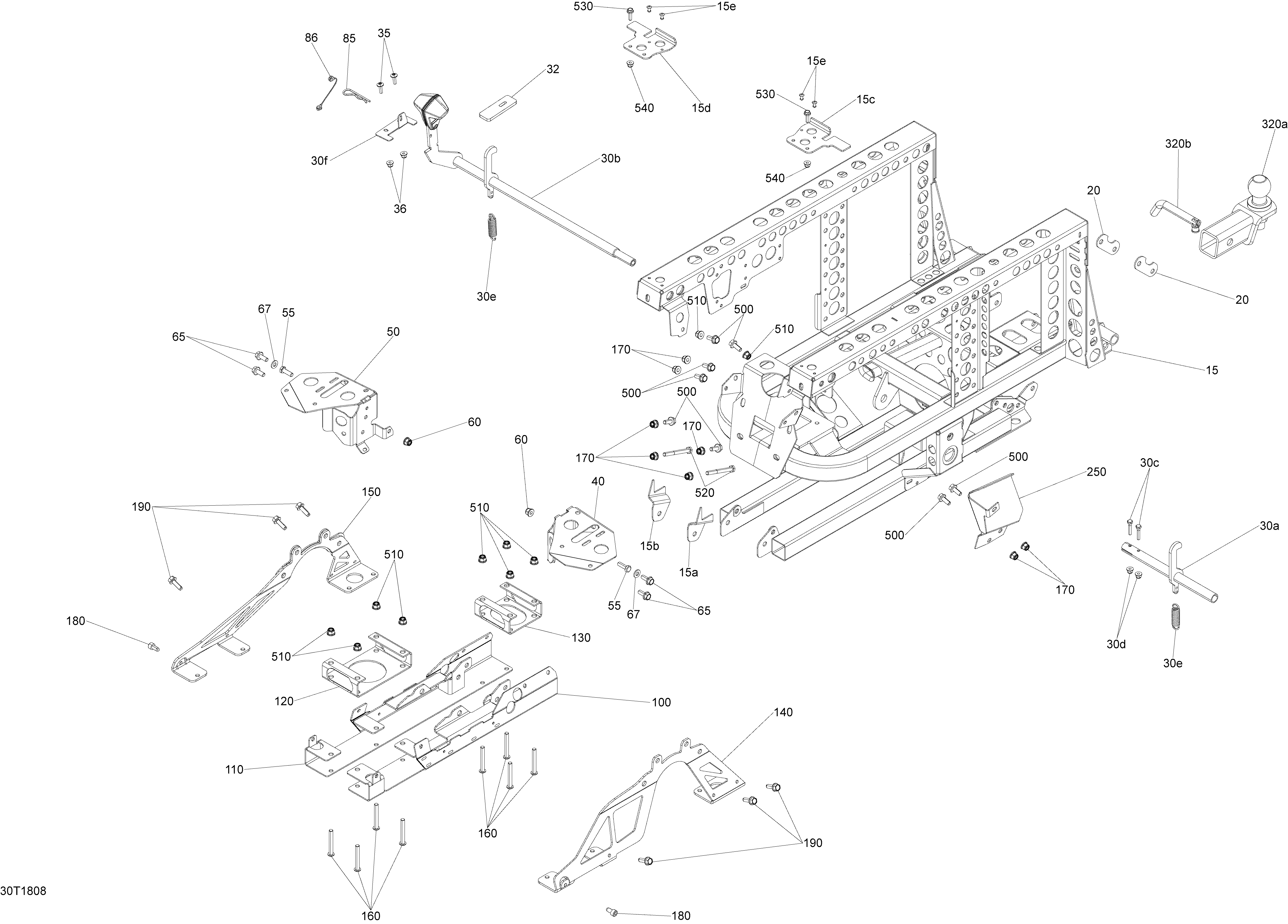

09- Frame для BRP 2- Outlander 6X6 T3 1000 EFI - 2018
-
№АртикулНазвание
-
15705204598 Rear Frame. Includes 15 to 15eRear Frame. Includes 15 to 15e
-
15a605356426 LH Grip PlateLH Grip Plate
-
15b605356425 RH Grip PlateRH Grip Plate
-
15c705204600 LH Cargo SupportLH Cargo Support
-
15d705204601 RH Cargo SupportRH Cargo Support
-
15e293150144 Stavex RivetStavex Rivet
-
20705203564 Support PlateSupport Plate
-
30a705203669 LH Tube WeldedLH Tube Welded
-
30b705203670 RH Tube WeldedRH Tube Welded
-
30c250000480 Hex Cap Screw DIN.931Hex Cap Screw DIN.931
-
30d233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30e415107100 SpringSpring
-
30f705203834 Lever SupportLever Support
-
32708301280 Rubber CollarRubber Collar
-
35250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40705203611 Rear Fender Support, Weld. LHRear Fender Support, Weld. LH
-
50705203612 Rear Fender Support, Weld. RHRear Fender Support, Weld. RH
-
55250000556 Hexagonal ScrewHexagonal Screw
-
60233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
67503192494 WasherWasher
-
85505073670 Spring CotterSpring Cotter
-
86293750069 Retainer CableRetainer Cable
-
100705203724 Lower Beam Reinforcement LH WeldLower Beam Reinforcement LH Weld
-
110705203725 Lower Beam Reinforcement RH WeldLower Beam Reinforcement RH Weld
-
120705203726 Support Plate FrontSupport Plate Front
-
130705203727 Support Plate RearSupport Plate Rear
-
140705203728 Differential Support Reinforcement LHDifferential Support Reinforcement LH
-
150705203729 Differential Support Reinforcement RHDifferential Support Reinforcement RH
-
160250000777 Torx Screw Scotch Grip M8X60Torx Screw Scotch Grip M8X60
-
170233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
180250000678 Forming Screw HD.DIN.7500EForming Screw HD.DIN.7500E
-
190250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
250707601726 Heat ShieldHeat Shield
-
320a705204158 Hitch SupportHitch Support
-
320b705204490 Hitch PinHitch Pin
-
500207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
510233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
520207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
530207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
540233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
600a207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
600b232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
600c234082670 Flat Washer, StainlessFlat Washer, Stainless
-
600d510003533 Handle M8 X 35Handle M8 X 35
-
600e207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
600f250000218 Hex. Screw M10 X 75Hex. Screw M10 X 75
-
600g20068 Lock Washer D10Lock Washer D10
-
600h233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
600j232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
600k207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
600m207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
600n234082670 Flat Washer, Stainless. Includes 600n to 600vFlat Washer, Stainless. Includes 600n to 600v
-
600m390909100 Avex RivetAvex Rivet
-
600p20117 WasherWasher
-
600q207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
600r232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
600s390909100 Avex RivetAvex Rivet
-
600t207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
600u232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
600v207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
