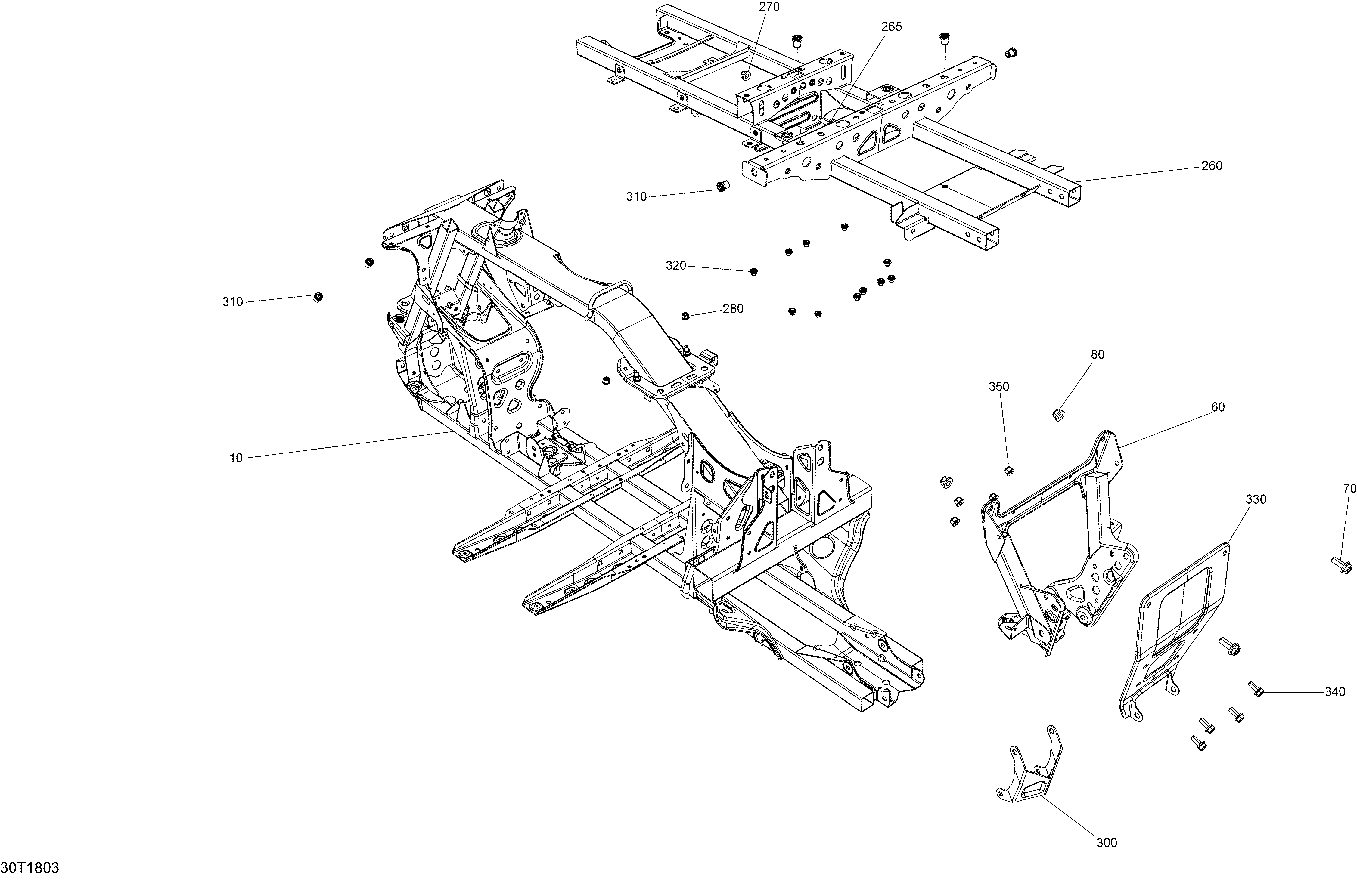

09- Frame Renegade для BRP 1- Renegade 570 EFI - 2018
-
№АртикулНазвание
-
10705206365 Black FrameBlack Frame
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
260705204075 Black Frame ExtensionBlack Frame Extension
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
300705203701 Diffderential ProtectorDiffderential Protector
-
310293450307 InsertInsert
-
320293450232 InsertInsert
-
330705203301 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
