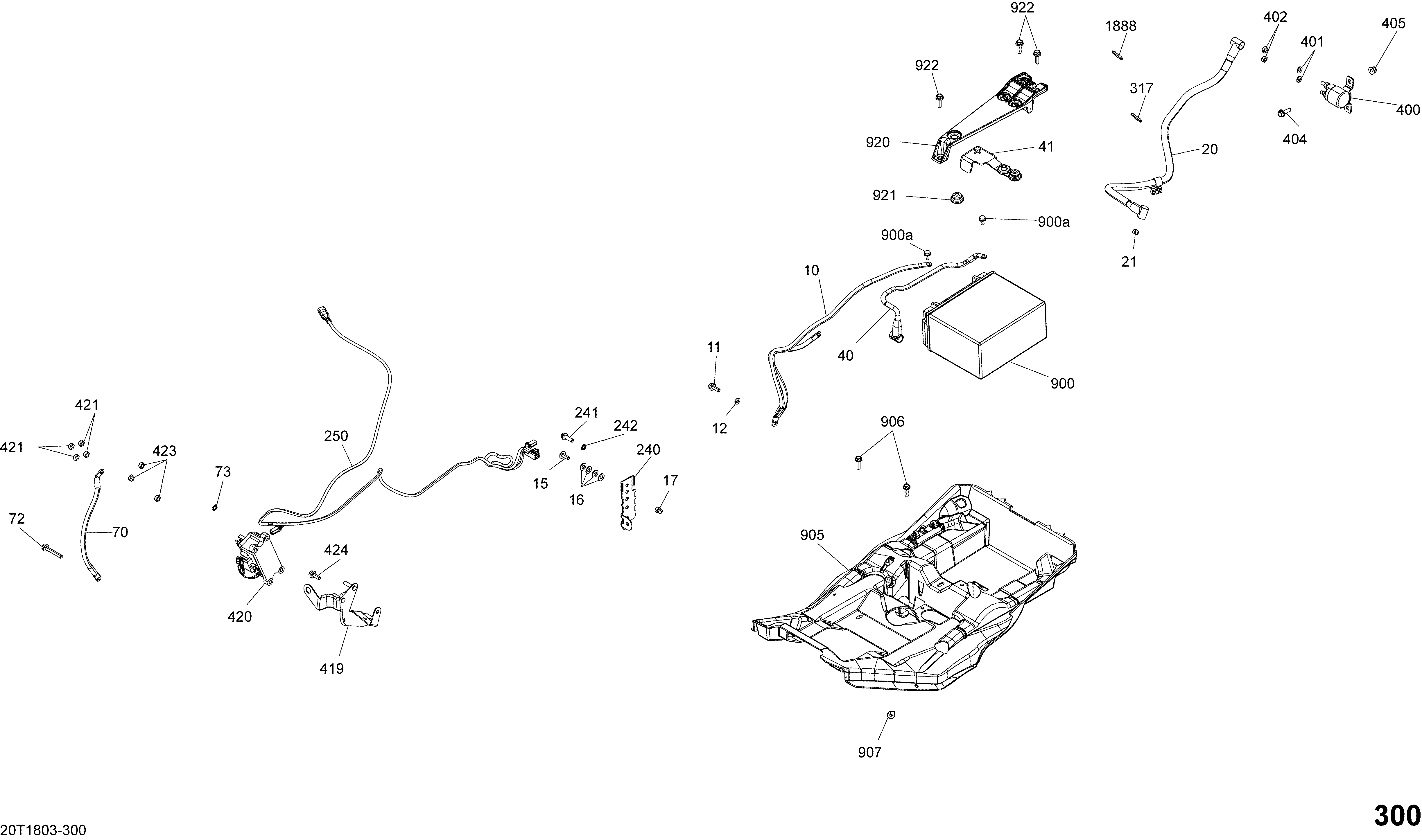

10- Electrical System Renegade All Package - Parts 300 для BRP 1- Renegade 570 EFI - 2018
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 850 EFI Internationnal ModelsHex. Flanged Screw M6 X 16, Scotch Grip. Engine 850 EFI Internationnal Models
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 850 EFI North America ModelsHex. Flanged Screw M6 X 16, Scotch Grip. Engine 850 EFI North America Models
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 570 EFI Internationnal ModelsHex. Flanged Screw M6 X 16, Scotch Grip. Engine 570 EFI Internationnal Models
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 570 EFI North America ModelsHex. Flanged Screw M6 X 16, Scotch Grip. Engine 570 EFI North America Models
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 1000R EFI North America ModelsHex. Flanged Screw M6 X 16, Scotch Grip. Engine 1000R EFI North America Models
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 1000R EFI Internationnal ModelsHex. Flanged Screw M6 X 16, Scotch Grip. Engine 1000R EFI Internationnal Models
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004375 Connector Ass'y. Engine 1000R Package XMRConnector Ass'y. Engine 1000R Package XMR
-
40710004376 Positive Cable. Package XXCPositive Cable. Package XXC
-
40710004376 Positive Cable. Package STDPositive Cable. Package STD
-
40710004376 Positive Cable. Engine 570 EFI Package XMRPositive Cable. Engine 570 EFI Package XMR
-
41710002569 CapCap
-
70710004379 Negative Harness. Engine 1000R Package XMRNegative Harness. Engine 1000R Package XMR
-
72210264040 Hex Flanged Screw M6 X 40. Engine 1000R Package XMRHex Flanged Screw M6 X 40. Engine 1000R Package XMR
-
73234461608 External Serrated Lock Washer 6 mm. Engine 1000R Package XMRExternal Serrated Lock Washer 6 mm. Engine 1000R Package XMR
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
250710004324 Brake HarnessBrake Harness
-
317710002896 Tie-Rap Clip. All Models Except Package STDTie-Rap Clip. All Models Except Package STD
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
419710004935 Module Support. Engine 1000R EFI Package XMRModule Support. Engine 1000R EFI Package XMR
-
420710001000 Winch Solenoid. Engine 1000R EFI Package XMRWinch Solenoid. Engine 1000R EFI Package XMR
-
421232561414 Elastic Stop Nut M6. Engine 1000R EFI Package XMRElastic Stop Nut M6. Engine 1000R EFI Package XMR
-
423232561414 Elastic Stop Nut M6. Engine 1000R EFI Package XMRElastic Stop Nut M6. Engine 1000R EFI Package XMR
-
424207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Engine 1000R EFI Package XMRHex. Flanged Screw M6 X 16, Scotch Grip. Engine 1000R EFI Package XMR
-
900>900a410301203 Battery Ass'y, 18 Amperes. All Models Except T3. Includes 900 to 900aBattery Ass'y, 18 Amperes. All Models Except T3. Includes 900 to 900a
-
900a250000282 Battery Bolt Kit. All Models Except T3Battery Bolt Kit. All Models Except T3
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1888414115200 Tie-Rap 180 mm. Package XMRTie-Rap 180 mm. Package XMR
