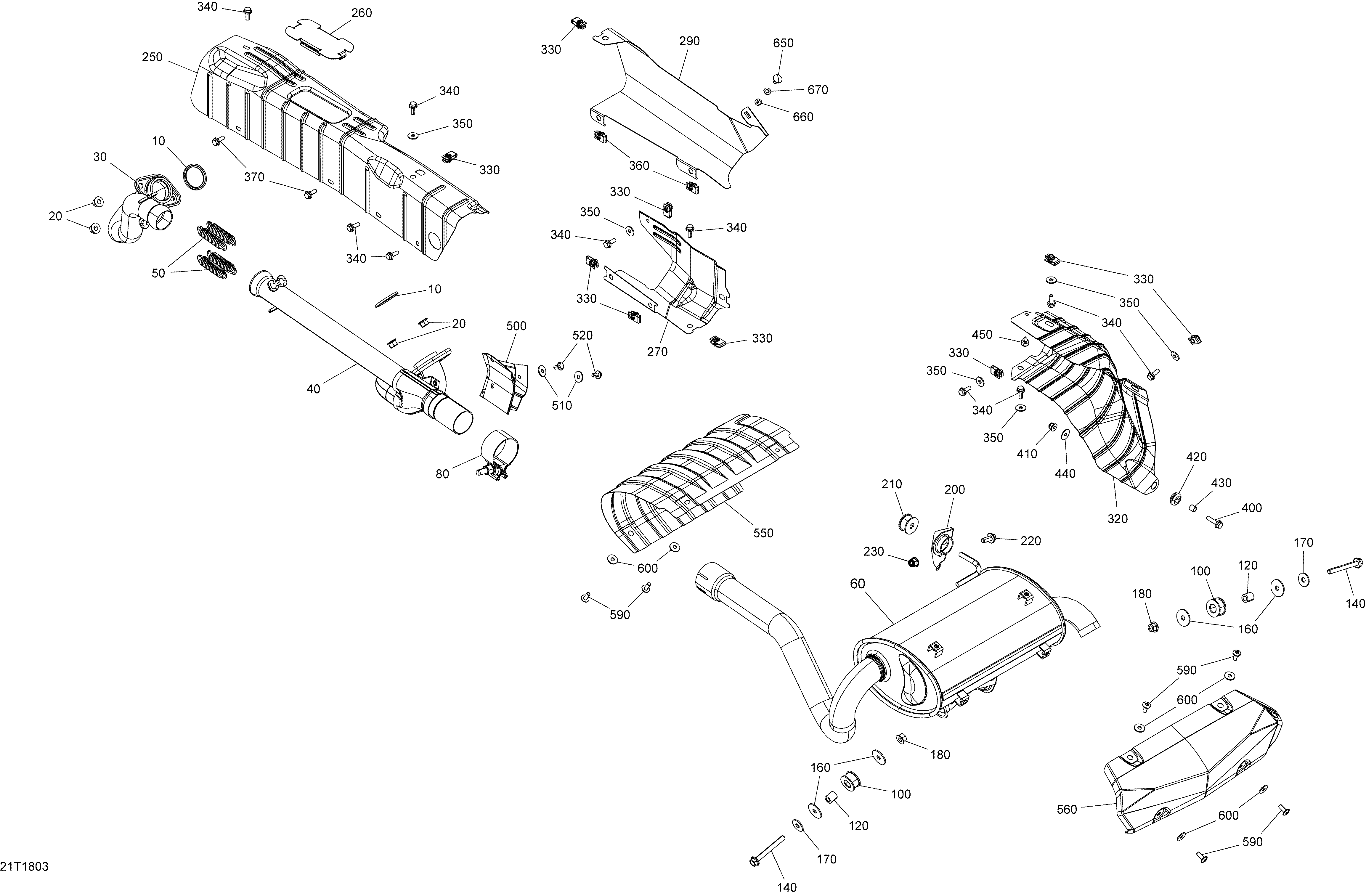

01- Exhaust Renegade для BRP 2- Renegade 850 EFI - 2018
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707600627 Front Head Pipe. Engine 1000RFront Head Pipe. Engine 1000R
-
30707600764 Front Head Pipe. Except 1000RFront Head Pipe. Except 1000R
-
40707601446 Rear Head Pipe. Except 1000RRear Head Pipe. Except 1000R
-
40707601455 Rear Head Pipe. Engine 1000RRear Head Pipe. Engine 1000R
-
50415107100 SpringSpring
-
60>60d707602180 Exhaust Muffler. California. Includes 60 to 60dExhaust Muffler. California. Includes 60 to 60d
-
60>60d707602221 Exhaust Muffler. Except California. Includes 60 to 60dExhaust Muffler. Except California. Includes 60 to 60d
-
60a715900089 Spark ArrestorSpark Arrestor
-
60b715900149 GasketGasket
-
60c707602087 Spark ArrestorSpark Arrestor
-
60d205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
80293650228 Exhaust Pipe ClampExhaust Pipe Clamp
-
100707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
120293900116 Spacer BushingSpacer Bushing
-
140207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
160250200158 Flat Washer M8Flat Washer M8
-
170234082410 Flat Washer 8 mmFlat Washer 8 mm
-
180233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
200707600933 SupportSupport
-
210707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
220207682034 Hex. Flanged ScrewHex. Flanged Screw
-
230233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
250707601486 ProtectorProtector
-
260707600995 Heat Shield. XMR PackageHeat Shield. XMR Package
-
270707601484 ProtectorProtector
-
290707600996 Heat Shield. XMR PackageHeat Shield. XMR Package
-
320707601425 ProtectorProtector
-
330250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
340207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
350234062410 Flat Washer 6 mmFlat Washer 6 mm
-
360250000048 Panel Nut M6 X 1.0. XMR PackagePanel Nut M6 X 1.0. XMR Package
-
370207661644 Hex. Flanged Screw M6 X 16. XMR PackageHex. Flanged Screw M6 X 16. XMR Package
-
400207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
410233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420293720053 GrommetGrommet
-
430293900105 BushingBushing
-
440224060201 Flat WasherFlat Washer
-
450293830005 Rubber BumperRubber Bumper
-
500707600932 Pipe ProtectorPipe Protector
-
510250200082 Flat WasherFlat Washer
-
520250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
550707600737 Heat DeflectorHeat Deflector
-
560707600738 Heat DeflectorHeat Deflector
-
590250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
600234062670 Flat Washer, StainlessFlat Washer, Stainless
-
650207761244 Carriage Bolt M6 X 12. XMR PackageCarriage Bolt M6 X 12. XMR Package
-
660232561414 Elastic Stop Nut M6. XMR PackageElastic Stop Nut M6. XMR Package
-
670234061410 Flat Washer 6 mm. XMR PackageFlat Washer 6 mm. XMR Package
