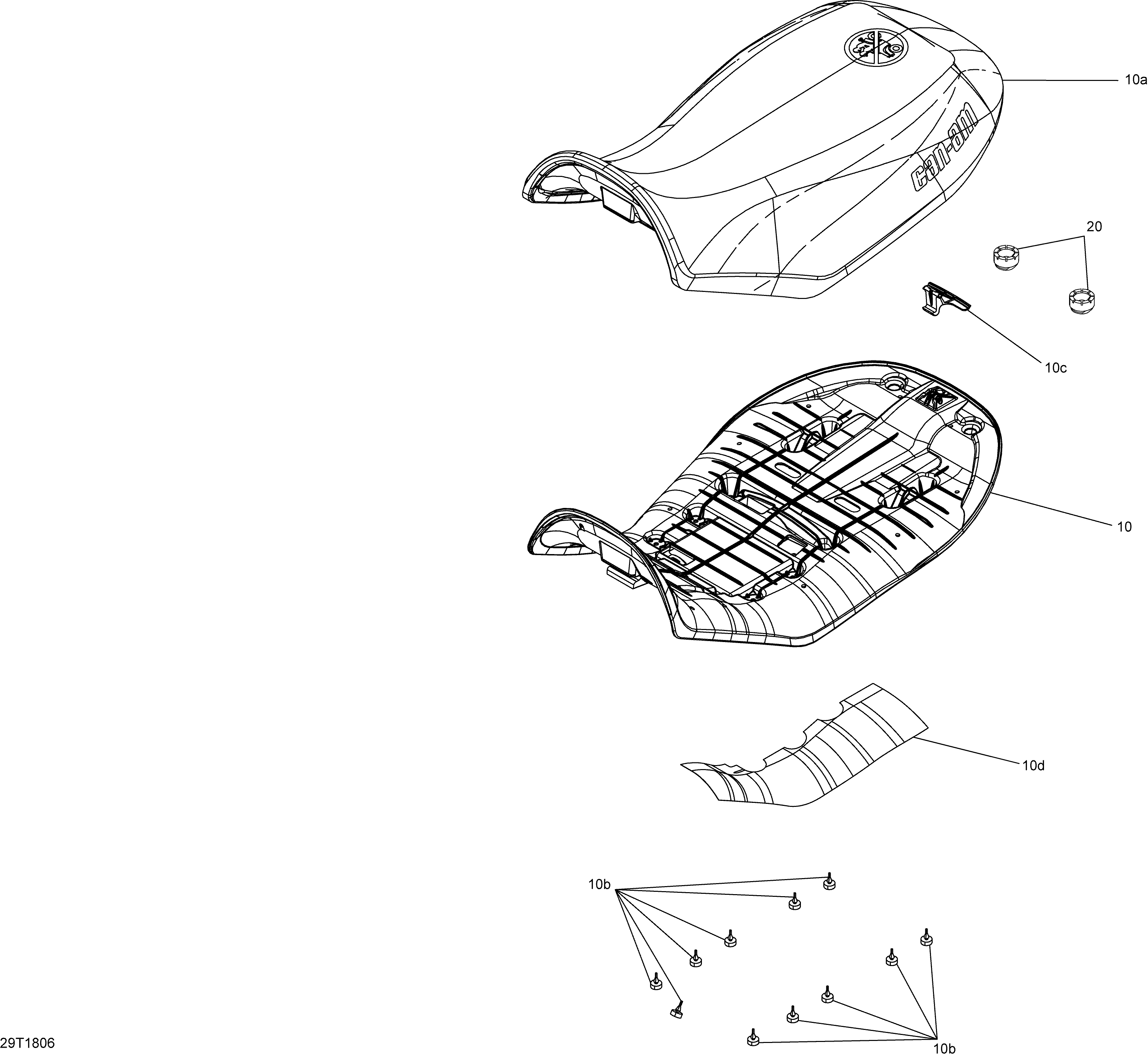

09- Seat Renegade - XXC для BRP 2- Renegade 850 EFI - 2018
-
№АртикулНазвание
-
10708002488 ASSEMBLY SEAT. Model Can-Am Red. Includes 10 to 10dASSEMBLY SEAT. Model Can-Am Red. Includes 10 to 10d
-
10708002490 Assembly Seat. Model Timeless Black. Includes 10 to 10dAssembly Seat. Model Timeless Black. Includes 10 to 10d
-
10a708001984 Seat Cover. Model Can-Am RedSeat Cover. Model Can-Am Red
-
10a708002318 Seat Cover. Model Timeless BlackSeat Cover. Model Timeless Black
-
10b708000759 Rubber StopperRubber Stopper
-
10c708000914 LatchLatch
-
10d705005762 Heat ShieldHeat Shield
-
20708000760 Bumper RubberBumper Rubber
