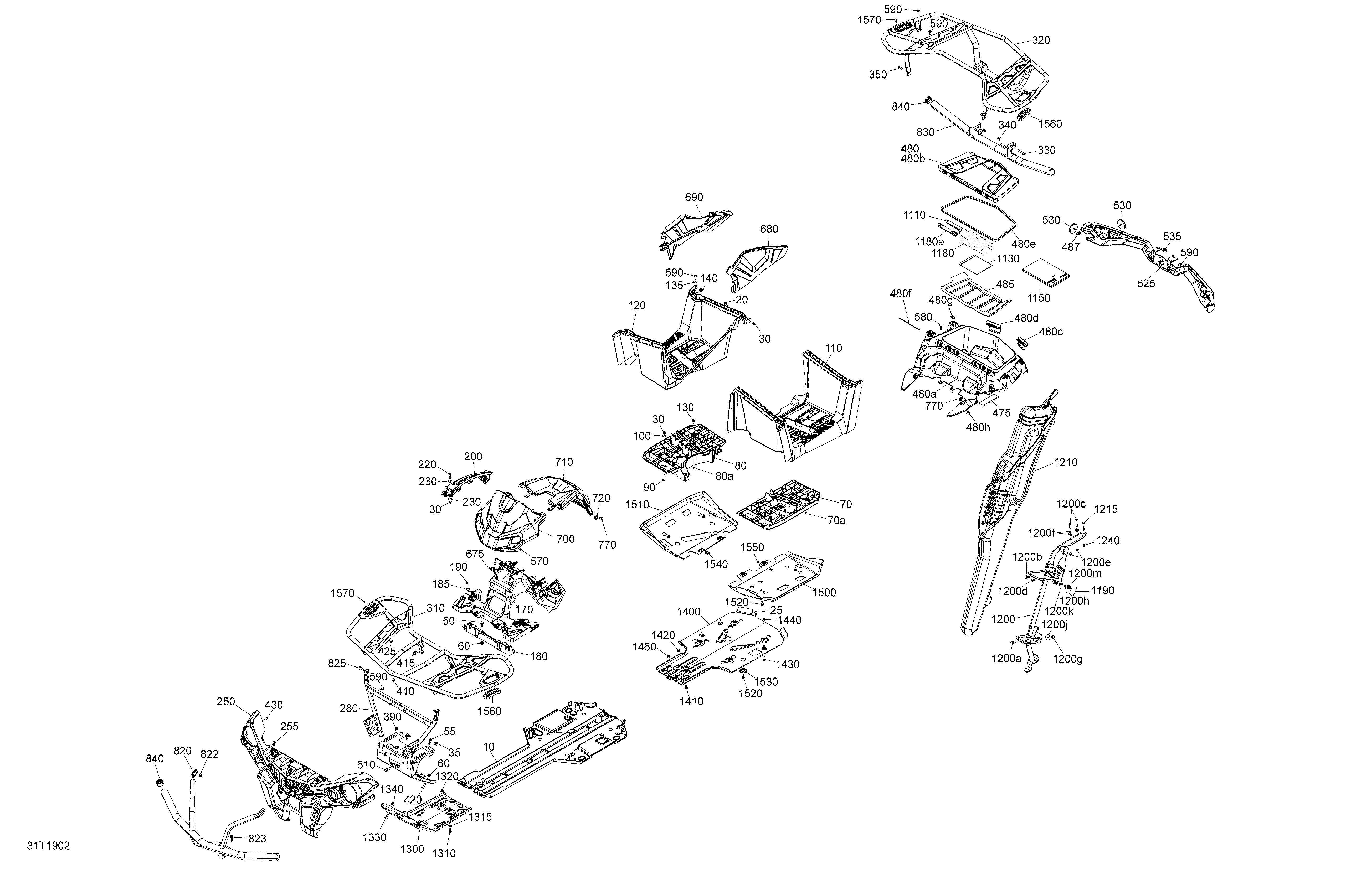

09- Body And Accessories - 450 EFI - Hunting Edition для BRP 001 - Outlander 450 EFI - North America - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate KitProtective Plate Kit
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural Footboard. Includes 80 to 80aRH Structural Footboard. Includes 80 to 80a
-
80a232862412 Square Nut M6Square Nut M6
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH FootrestLH Footrest
-
120705007723 RH FootrestRH Footrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
170715003984 Dash Support KitDash Support Kit
-
180705010406 Console Support InsertConsole Support Insert
-
185234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
200715003973 IndicatorIndicator
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705009334 Front FaciaFront Facia
-
255250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
280705009256 Front StructureFront Structure
-
310705006887 Black Front Luggage RackBlack Front Luggage Rack
-
320715005986 Black Rear Luggage RackBlack Rear Luggage Rack
-
330250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
340233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
350250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
390293450307 InsertInsert
-
410210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
415207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
425234062670 Flat Washer, StainlessFlat Washer, Stainless
-
430250000725 Screw M4 X 16Screw M4 X 16
-
475293830163 Rubber PadRubber Pad
-
480715004412 Storage CoverStorage Cover
-
480a705007136 Rear BoxRear Box
-
480b715004412 Storage CoverStorage Cover
-
480c705007448 LH Box Rear LatchLH Box Rear Latch
-
480d705007921 RH Box Rear Latch. Includes 480d to 480eRH Box Rear Latch. Includes 480d to 480e
-
480e715900411 Neoprene SealNeoprene Seal
-
480f705007531 Retaining RodRetaining Rod
-
480g250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
480h414859400 CapCap
-
485705007487 Heat Deflector SheetHeat Deflector Sheet
-
487250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
525705005576 Rear FaciaRear Facia
-
530705011221 Red ReflectorRed Reflector
-
535705003666 Rubber GrommetRubber Grommet
-
570732610072 Push NutPush Nut
-
580250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
700705007066 Gage SupportGage Support
-
710715005837 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
820715001910 Front Bumper kitFront Bumper kit
-
822233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
823207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
825250000898 Screw Pan Torx M8 X 25Screw Pan Torx M8 X 25
-
830715001911 Rear Bumper kitRear Bumper kit
-
840705202455 CapCap
-
1110529000035 Adjustement WrenchAdjustement Wrench
-
1130219400038 Waranty FormWaranty Form
-
1150219001376 Manual Winch KitManual Winch Kit
-
1180704700168 Tool Kit. Includes 1080 to 1080aTool Kit. Includes 1080 to 1080a
-
1180a529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
1190516006405 Protector DecalProtector Decal
-
1200705011166 Gun Boot Bracket Ass'y. Includes 1200 to 1200mGun Boot Bracket Ass'y. Includes 1200 to 1200m
-
1200a207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
1200b207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
1200c250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
1200d250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
1200e233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1200f705202223 Offset WasherOffset Washer
-
1200g250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
1200h250000135 Hex. Nut M6Hex. Nut M6
-
1200j250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1200k250200039 Flat WasherFlat Washer
-
1200m291003688 Rubber BumperRubber Bumper
-
1210715001419 Gun Boot kitGun Boot kit
-
1215207664536 Hex. Flange Screw M6 X 45Hex. Flange Screw M6 X 45
-
1240233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1300705205019 Front Skid PlateFront Skid Plate
-
1310250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1315234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1320233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
1330236282054 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
1340233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1400705204031 Central Skid PlateCentral Skid Plate
-
1410207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
1420233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
1430207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1440250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1460233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1500705010659 LH Skid PlateLH Skid Plate
-
1510705010660 RH Skid PlateRH Skid Plate
-
1520207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1530705007171 CupCup
-
1540250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1550250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1560715002350 Linq Base KitLinq Base Kit
-
1560715002350 Linq Base KitLinq Base Kit
-
1570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1600715001667 A Arm Protector KitA Arm Protector Kit
-
1610715001667 A Arm Protector KitA Arm Protector Kit
