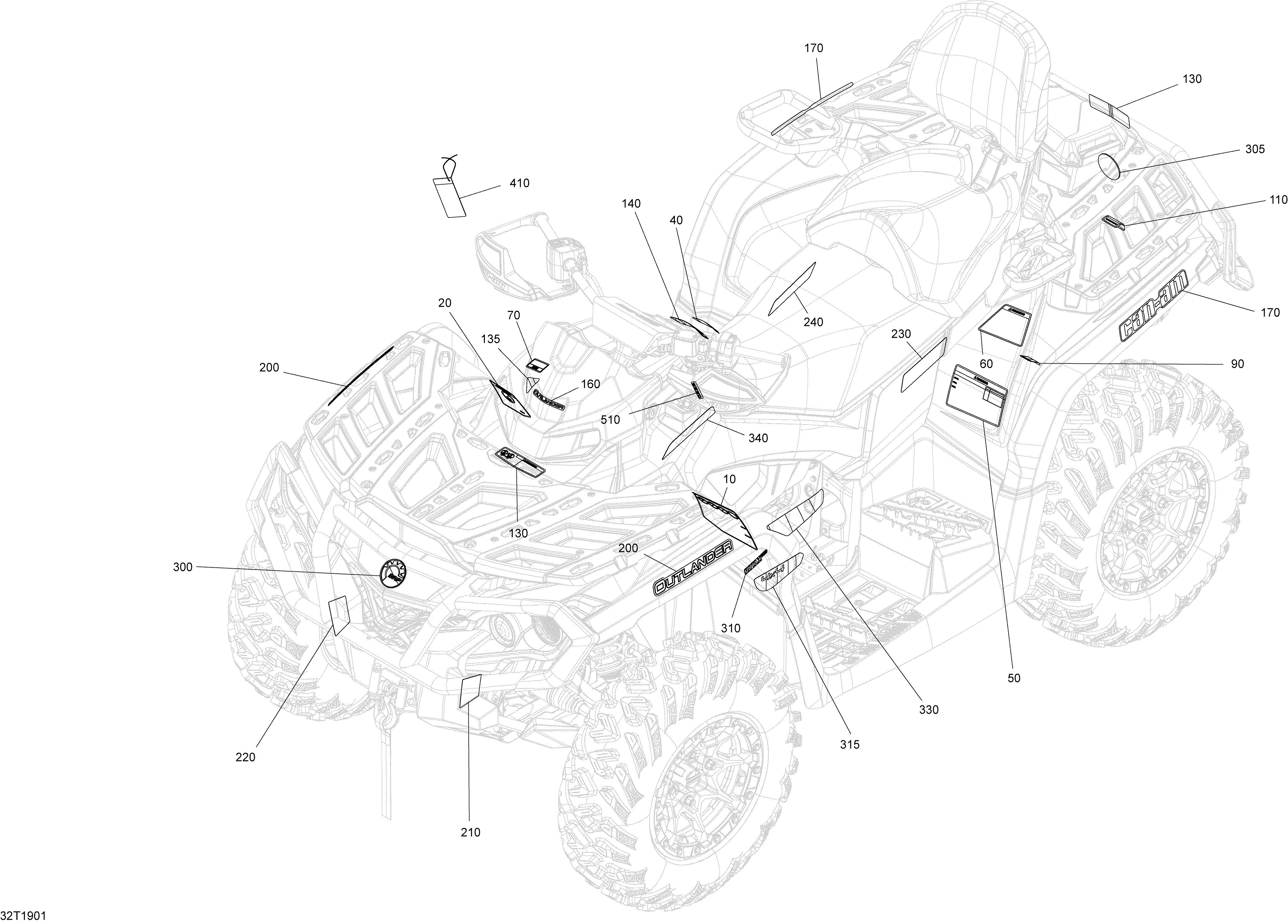

09- Decals STD для BRP 001 - Outlander 450 EFI - North America - 2019
-
№АртикулНазвание
-
10704907245 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
20704905677 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704906970 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704906851 Warning Decal, PassengerWarning Decal, Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
90704906853 Warning Decal, Loading/TowingWarning Decal, Loading/Towing
-
110704905698 Warning DecalWarning Decal
-
130704905702 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
140704905707 Warning Decal, PerformanceWarning Decal, Performance
-
160704905722 Console DecalConsole Decal
-
170704905727 Can-Am Decal. Viper RedCan-Am Decal. Viper Red
-
170704905731 Can-Am Decal. Squadron GreenCan-Am Decal. Squadron Green
-
200704905733 Outlander Decal. Viper RedOutlander Decal. Viper Red
-
200704905737 Outlander Decal. Squadron GreenOutlander Decal. Squadron Green
-
210704903972 LH Side Front ReflectorLH Side Front Reflector
-
220704903973 RH Side Front ReflectorRH Side Front Reflector
-
300516008739 Logo BRPLogo BRP
-
305516008738 Logo BRPLogo BRP
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704905747 4X4 Visco-Lok Decal4X4 Visco-Lok Decal
-
330704905751 LH 450 Engine DecalLH 450 Engine Decal
-
410704903310 Warning Decal, General Use ModelWarning Decal, General Use Model
-
510704905664 Decal, KeyDecal, Key
