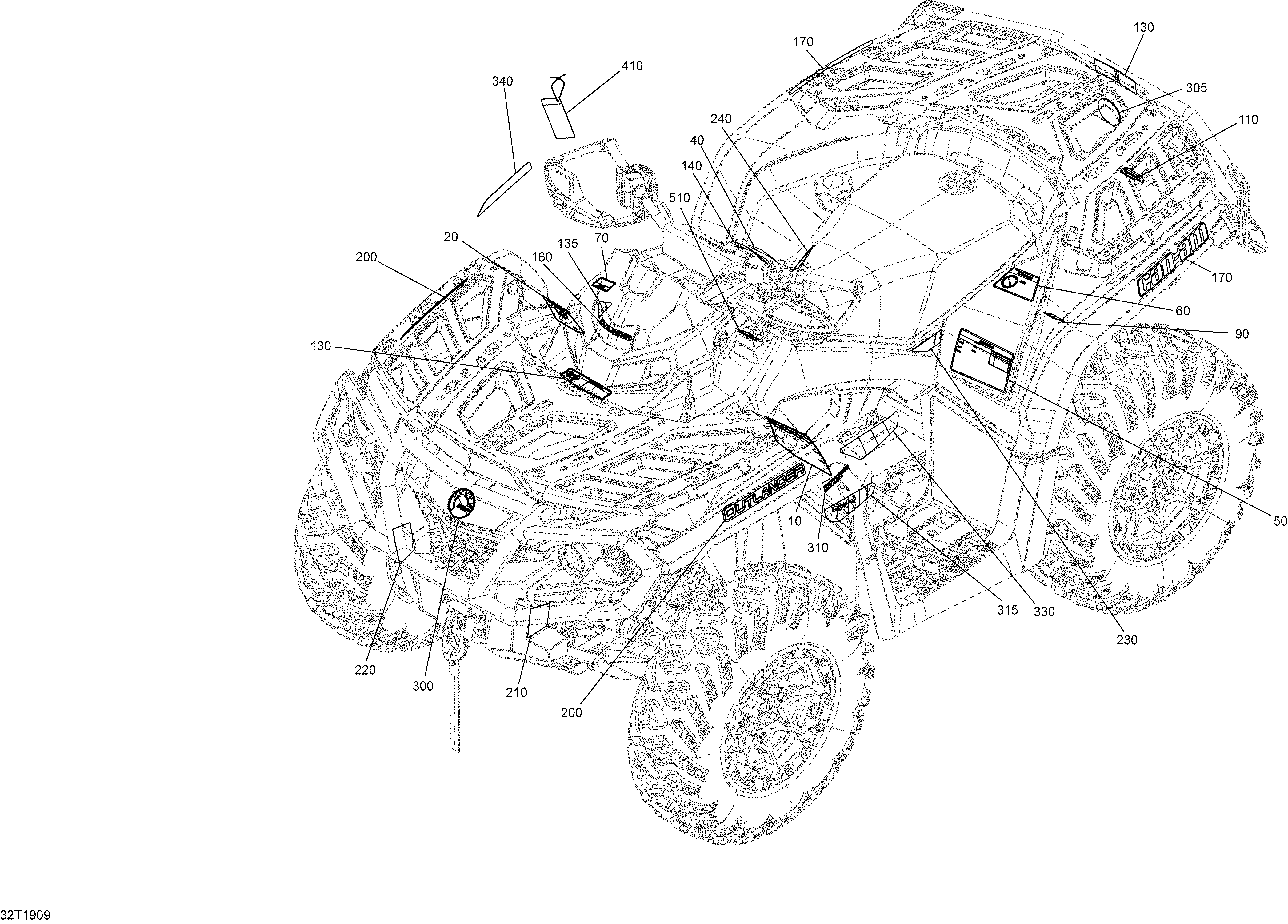

09- Decals STD для BRP 001 - Outlander 650 EFI - North America - 2019
-
№АртикулНазвание
-
10704907245 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
20704905677 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704906970 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704906851 Warning Decal, PassengerWarning Decal, Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
90704907401 Warning Decal, Loading/TowingWarning Decal, Loading/Towing
-
110704905698 Warning DecalWarning Decal
-
130704905995 Warning DecalWarning Decal
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
140704905707 Warning Decal, PerformanceWarning Decal, Performance
-
160704905722 Console DecalConsole Decal
-
170704907486 Can-Am DecalCan-Am Decal
-
200704907487 Outlander DecalOutlander Decal
-
210704902865 LH Front Side ReflectorLH Front Side Reflector
-
220704902866 RH Front Side ReflectorRH Front Side Reflector
-
300516008739 BRP Logo, 68mmBRP Logo, 68mm
-
305516008739 BRP Logo, 68mmBRP Logo, 68mm
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704905747 4X4 Visco-Lok Decal4X4 Visco-Lok Decal
-
330704906034 LH 650 Engine DecalLH 650 Engine Decal
-
340704906035 RH 650 Engine DecalRH 650 Engine Decal
-
410704903310 Warning Decal, General Use ModelWarning Decal, General Use Model
-
510704906046 DESS DecalDESS Decal
