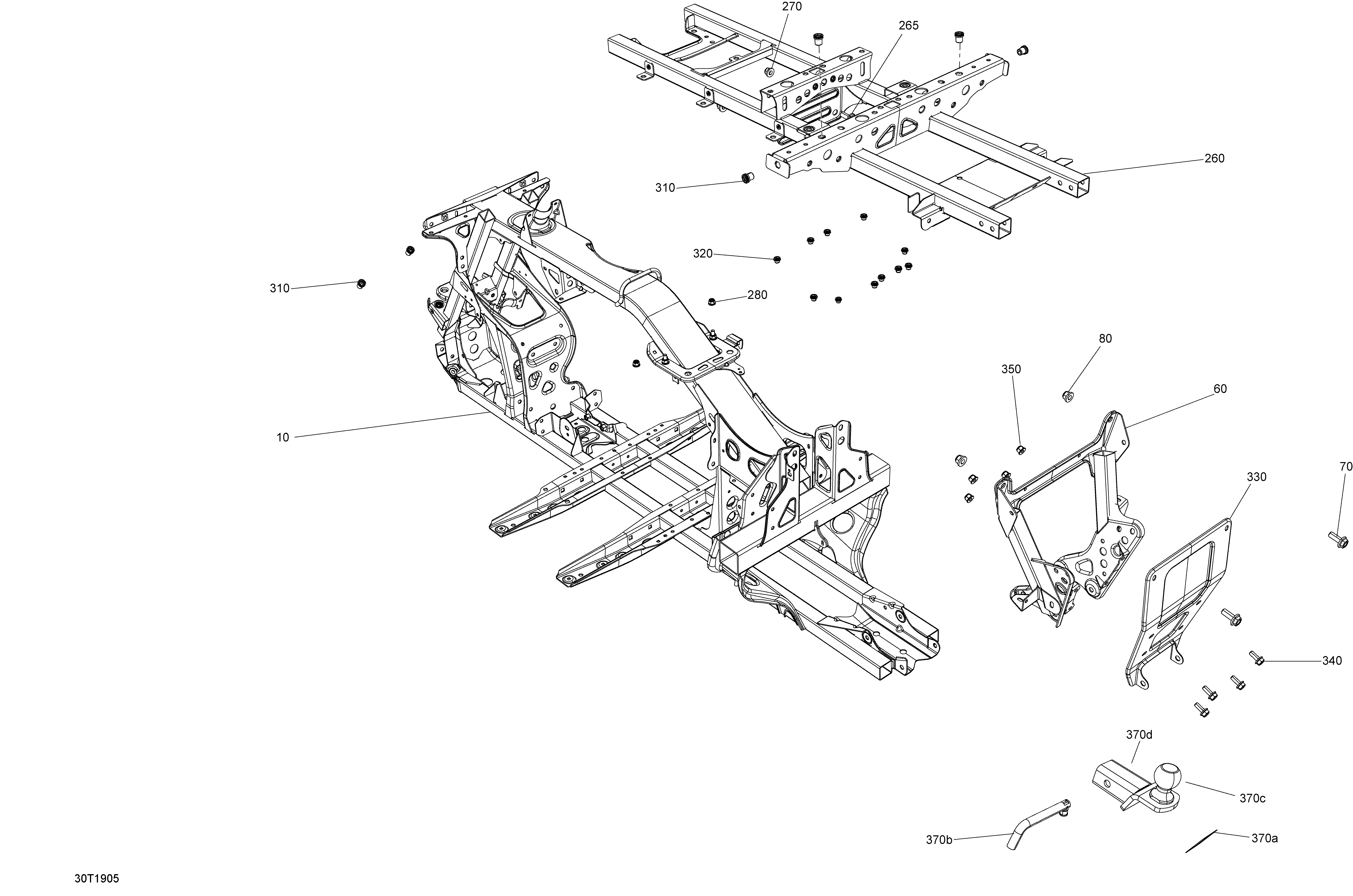

09- Frame для BRP 001 - Outlander 650 EFI - North America - 2019
-
№АртикулНазвание
-
10705207326 Black, FrameBlack, Frame
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
260705204075 Black Frame ExtensionBlack Frame Extension
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
310293450307 InsertInsert
-
320250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
330705203301 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
360715005839 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
370705205304 Rear Hitch Kit. Package PRO. Includes 370 to 370dRear Hitch Kit. Package PRO. Includes 370 to 370d
-
370a705204158 Hitch Support. Package PRO. Includes 370a to 370cHitch Support. Package PRO. Includes 370a to 370c
-
370b704902700 Warning Label. Package PROWarning Label. Package PRO
-
370c705202391 Ball 50MM. Package PROBall 50MM. Package PRO
-
370d705204490 Hitch Pin. Package PROHitch Pin. Package PRO
